HDMI splitter MANHATTAN 208451 — 8-port, supports 4K 60Hz

MANHATTAN 208451 is an 8-port HDMI splitter that distributes a single HDMI source to up to eight displays simultaneously. The unit supports 4K resolution at 60Hz, preserving image detail and color fidelity across multiple screens. Designed for environments requiring synchronized video output, the splitter reduces cabling complexity and enables centralized source control for presentations, digital signage, classrooms and retail displays.

Advantages

The splitter delivers consistent 4K@60Hz video to multiple monitors without significant signal degradation and supports standard HDMI features for reliable compatibility with modern sources and displays. A compact, rack-friendly design simplifies installation and cable management. The device supports plug-and-play operation, minimizing setup time and eliminating the need for additional configuration software.

Suitable for

• Corporate meeting rooms and conference presentations
• Retail stores and point-of-sale digital signage
• Classrooms, lecture halls and training centers
• Exhibition booths and trade shows
• Control rooms and monitoring displays

Key specifications

• Number of outputs: 8 HDMI outputs
• Supported resolution: up to 4K (3840×2160) at 60Hz
• HDMI compliance: supports standard HDMI video and audio passthrough
• Audio: supports embedded multi-channel audio over HDMI
• Signal distribution: simultaneous identical output to all connected displays
• Form factor: compact chassis suitable for desktop or rack mounting

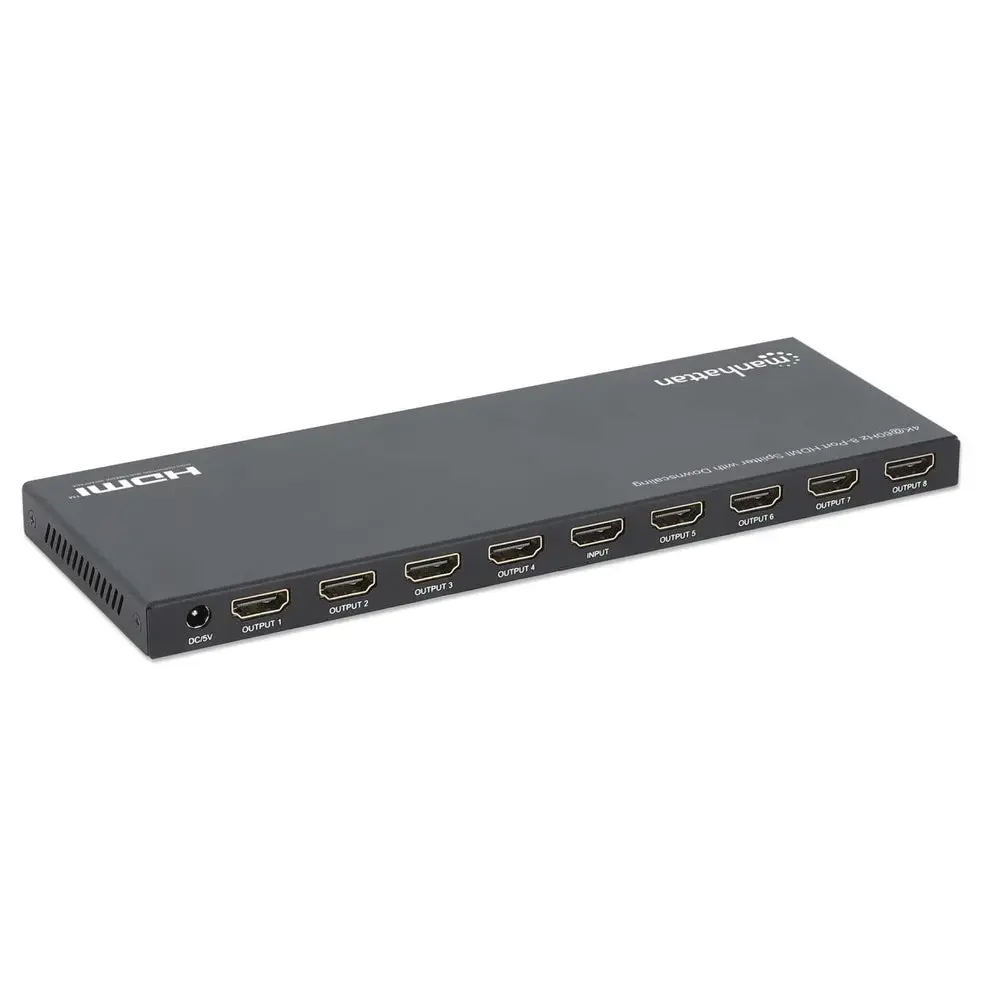

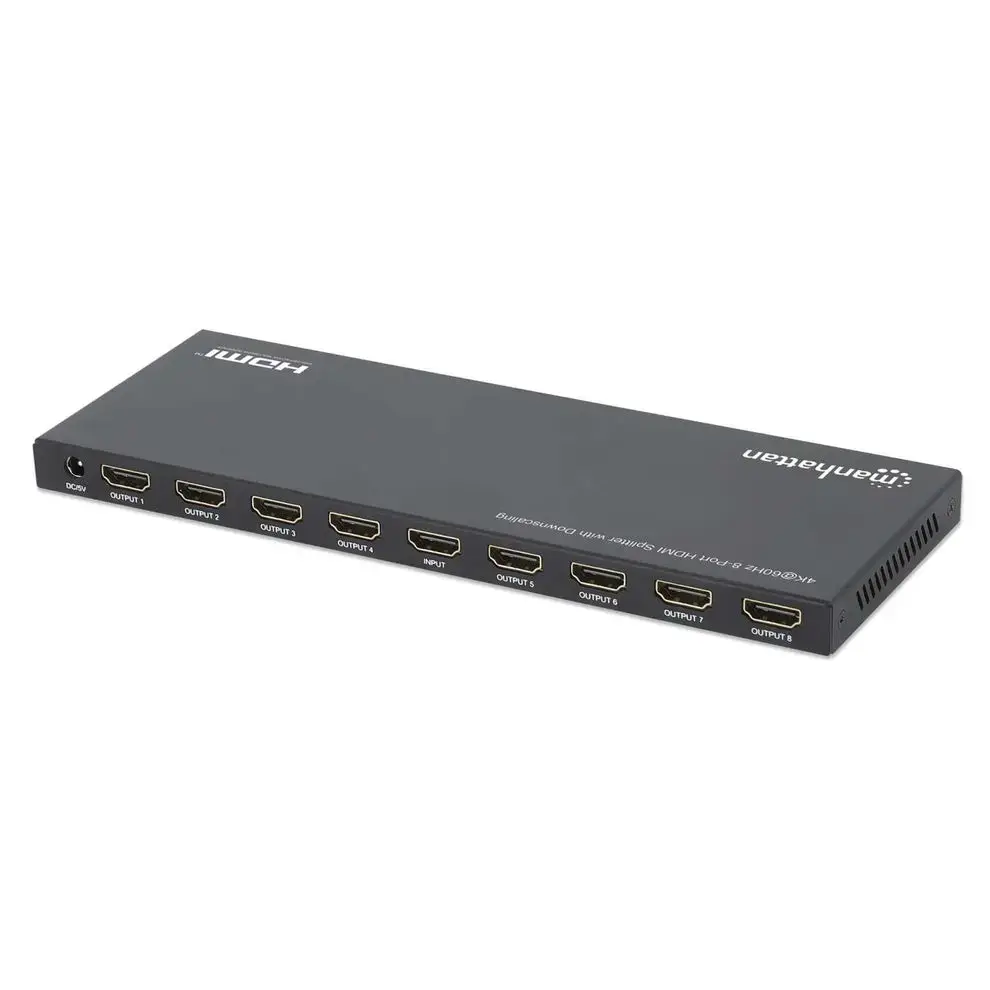

• Connectivity: one HDMI input and eight HDMI outputs

How to use

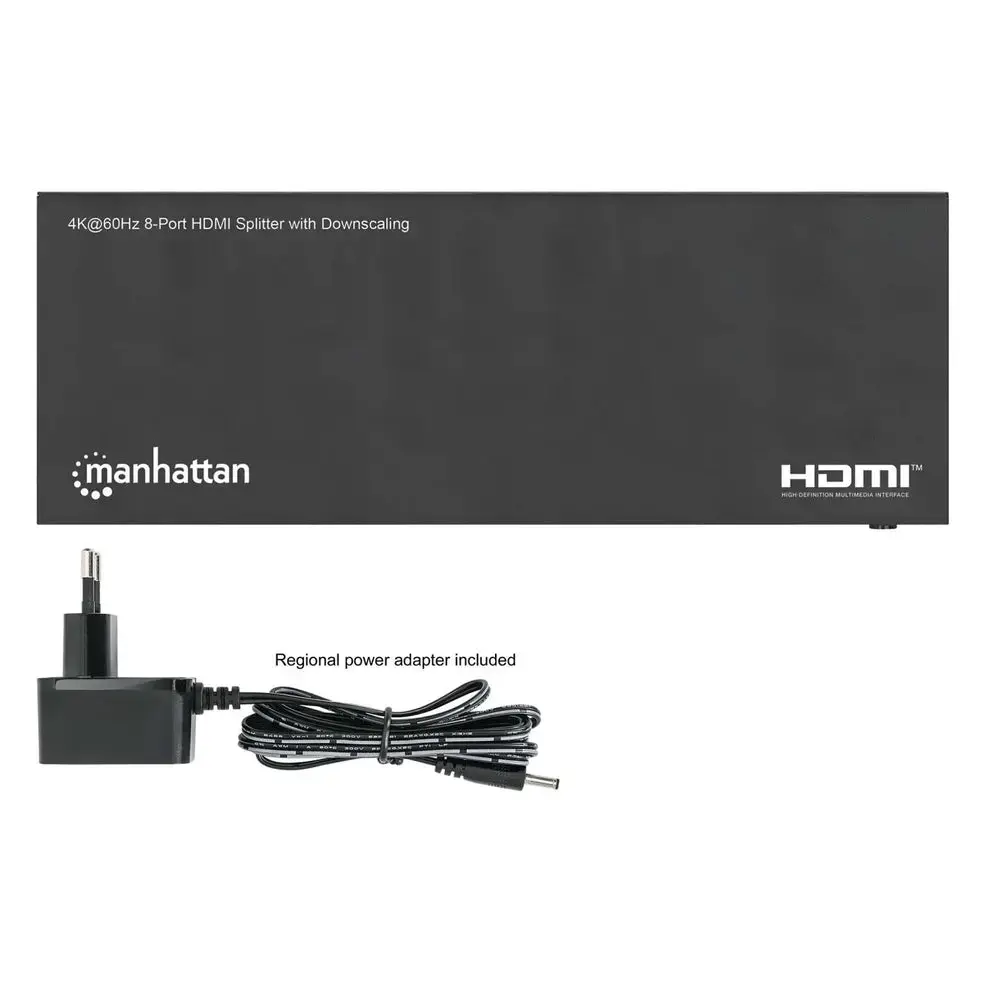

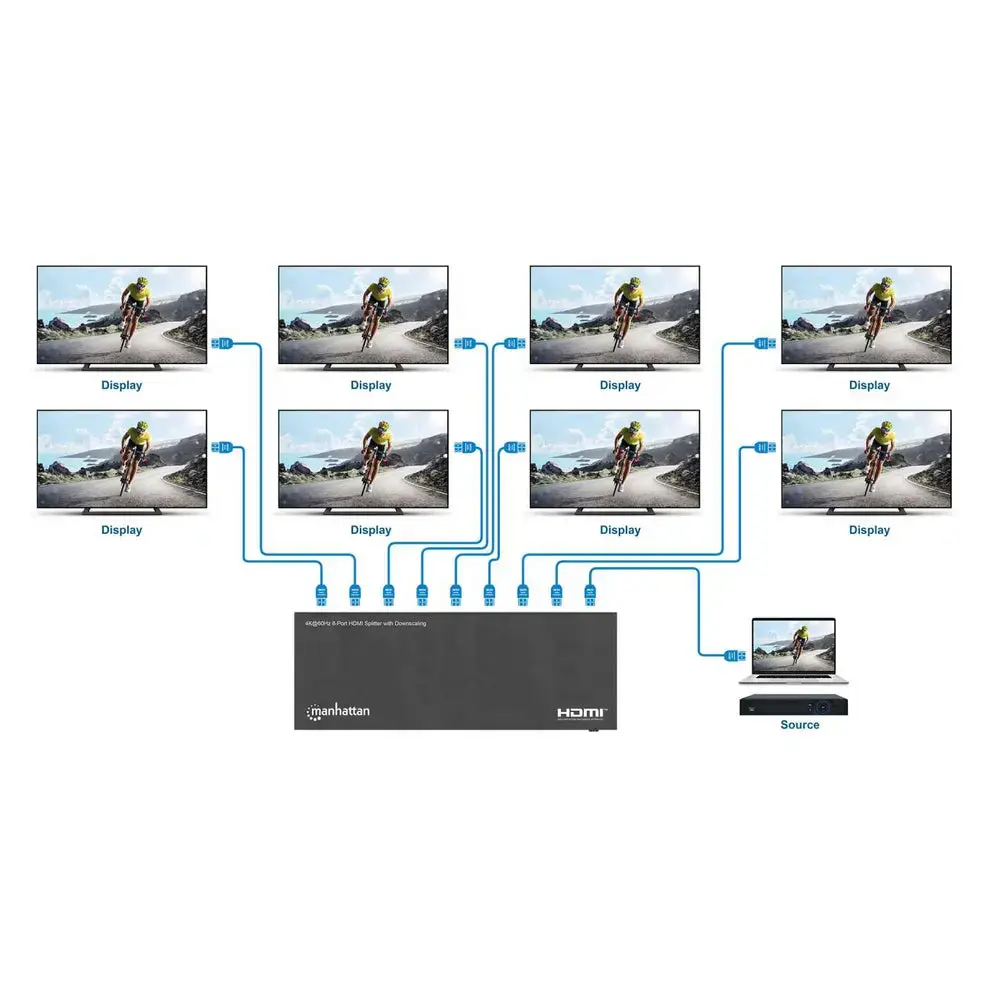

Connect the HDMI source (for example, a media player, laptop or set-top box) to the splitter's HDMI input, then connect each display to an HDMI output using high-quality HDMI cables rated for 4K@60Hz. Power the unit with the supplied adapter and power on the source and connected displays. The splitter will mirror the source signal to all outputs, so no additional configuration is typically required. For optimal results, ensure connected displays and source device support the chosen resolution and refresh rate.

Usage recommendations

Use certified High Speed HDMI cables rated for 18 Gbps to maintain full 4K@60Hz bandwidth and avoid long cable runs where possible; if longer runs are necessary, consider using active HDMI cables or repeaters. Verify EDID compatibility between the source and displays to prevent resolution negotiation issues, and place the splitter in a well-ventilated location to ensure stable operation during prolonged use.
