header-product Shutter/Blind Actuator MDT JAL-0410M.02 4-channel 10 A 230 VAC
236.49 €

Shutter/Blind Actuator MDT JAL-0410M.02 4-channel 10 A 230 VAC

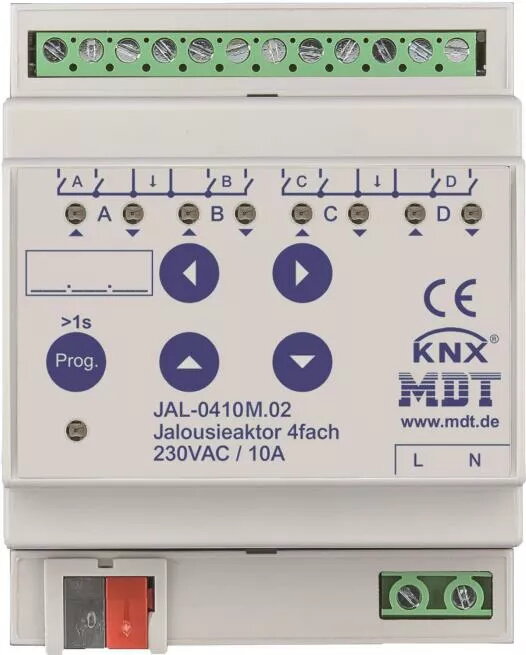

Shutter actuator MDT JAL-0410M.02 4ch 10A 230V Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Shutter/Blind Actuator MDT JAL-0410M.02 4-channel 10 A 230 VAC

{{email}}
You keep track of price changes

Shutter/Blind Actuator MDT JAL-0410M.02 4-channel 10 A 230 VAC

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

MDT JAL-0410M.02 is a 4-channel shutter/blind actuator for 230 VAC installation, with each channel rated at 10 A. Designed for controlling roller shutters, blinds and similar drives, it provides centralized switching of up to four loads. Suitable for residential and commercial KNX installations where reliable motor control and compact DIN-rail mounting are required.
Available for order: 7 pcs.
Warranty: 2 Years
SKU: 4481078
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

MDT JAL-0410M.02 is a 4-channel shutter/blind actuator designed for 230 VAC installations. Each channel supports up to 10 A, enabling centralized control of roller shutters, blinds and similar motorised drives. The compact device is intended for DIN-rail mounting in KNX systems and offers reliable switching for residential and commercial installations where precise motor control and space-efficient installation are required.

Advantages

The actuator provides four independently switchable channels with 10 A nominal current per channel, allowing simultaneous or separate control of multiple shutter or blind motors. Its DIN-rail form factor saves installation space and integrates with standard electrical cabinets. The unit is built to match common KNX wiring and control schemes, reducing commissioning time and supporting stable long-term operation of connected motors.

Suitable for

  • Control of roller shutters in private homes
  • Operation of blinds and sun-shading systems in offices
  • Centralised switching of multiple 230 VAC tubular motors
  • DIN-rail installations within KNX-based automation panels

Key specifications

  • Number of channels: 4 independent outputs
  • Rated voltage: 230 VAC
  • Nominal current per channel: 10 A
  • Mounting type: DIN-rail
  • Designed for motorised loads such as roller shutters and blinds
  • Integration: compatible with KNX control systems

How to use

Install the actuator on a standard DIN-rail within the electrical distribution board and connect the supply and motor outputs according to the electrical plan and KNX wiring guidelines. Configure the actuator channels using the KNX tool used in the installation to assign group addresses and set motion or end-position functions as required. Verify wiring and load ratings before switching on the supply, and test each channel with the associated motor to ensure correct direction, travel limits and stop behaviour.

Usage recommendations

Ensure connected motors do not exceed the 10 A rating per channel and follow manufacturer instructions for motor end-stop and torque settings. Use appropriate overcurrent protection and comply with local electrical codes during installation. For multi-motor groups, consider staggered operation or separate power circuits if combined inrush currents could exceed device limits.
