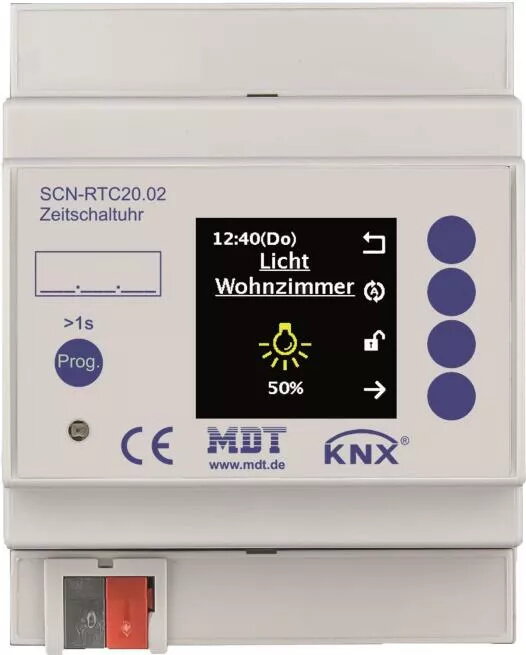

Programmable Timer MDT SCN-RTC20.02 — 20 channels, color display, 4TE DIN module

MDT SCN-RTC20.02 is a programmable DIN-rail timer offering 20 independent channels in a compact 4TE module with a color display. It is designed for automation tasks where multiple time-controlled outputs are required, providing clear visual status and easy scheduling for lighting, HVAC, pumps and similar building systems in residential and commercial installations.

Advantages

The device combines a high channel count with a small footprint, allowing centralized time control without occupying excessive DIN-rail space. The color display gives immediate visual feedback on channel states and scheduling, while independent channel programming supports varied daily and weekly schedules. Its design focuses on reliable time-based switching and straightforward integration into standard electrical enclosures.

Suitable for

• Scheduled lighting control in homes, offices and public buildings
• Time-based operation of heating, ventilation and air-conditioning equipment
• Pump control for irrigation, water supply and circulation systems
• Timed control of sockets, relays and small loads in automation panels
• Centralized scheduling where multiple independent outputs are required

Key specifications

• 20 independent programmable channels for timed switching
• Color display for status indication and programming
• Compact 4TE DIN-rail module for space-efficient installation
• Support for daily and weekly scheduling with multiple switching events per channel
• Manual override options and clear visual status for each channel
• Designed for integration into residential and commercial electrical panels

How to use

Install the unit on a standard DIN rail inside the electrical enclosure and connect outputs to the loads according to the wiring diagram. Use the color display and built-in menu to create and assign schedules to each of the 20 channels, specifying on/off times and the required days of operation. Verify clock and calendar settings before activating schedules. Manual override functions allow temporary switching without changing programmed schedules.

Usage recommendations
