header-product Controller MEAN WELL DUPS20 Wall-mount Silver 24V 20A
36.12 €

Controller MEAN WELL DUPS20 Wall-mount Silver 24V 20A

Controller MEAN WELL DUPS20 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Controller MEAN WELL DUPS20 Wall-mount Silver 24V 20A

{{email}}
You keep track of price changes

Controller MEAN WELL DUPS20 Wall-mount Silver 24V 20A

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The MEAN WELL DUPS20 is a wall-mount controller designed for reliable power management. It operates at an input voltage of 24V and current of 20A, providing an output voltage range of 21-29V. With compact dimensions of 40mm width, 113.5mm depth, and 125.2mm height, it is suitable for various applications. The product is lightweight at 310g, making it easy to install and integrate into existing systems.
Available for order: 30 pcs.
Warranty: 2 Years
SKU: 9875585
Manufacturer: mean well
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
Tuesday {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
07.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
07.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

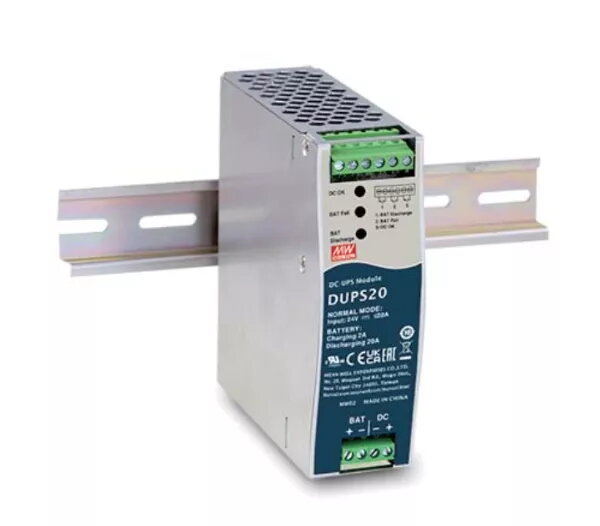

The MEAN WELL DUPS20 is a 24V DC-UPS module for DIN-rail or wall mounting that provides uninterrupted DC supply to connected loads by switching to an external battery pack when input power is lost. Designed for use with 24V battery packs of various capacities (4AH–135AH), the DUPS20 supports a continuous current of up to 20A and allows charging the battery with a 2A charging current. Its compact housing (40mm wide) and lightweight construction make it suitable for installations with limited space.

Advantages

The DUPS20 offers fast and simple installation, a small footprint (40 mm width), compatibility with a wide range of 24V battery capacities, and built-in low-voltage disconnect to protect the battery. It provides automatic switchover to the battery during AC mains interruption and maintains output voltage within a 21–29V range to ensure the connected system continues to operate.

Suitable for

  • Data centers and server racks requiring DC backup
  • Security and alarm systems
  • Emergency lighting circuits
  • Wireless communication equipment with UPS needs
  • Central monitoring and control systems

Key specifications

  • Model: DUPS20 (MEAN WELL)
  • Nominal voltage: 24 VDC
  • Output current: up to 20 A
  • Output voltage range: 21–29 V
  • Battery compatibility: 24V packs, 4 AH–135 AH
  • Battery charging current: 2 A
  • Dimensions (W × D × H): 40 mm × 113.5 mm × 125.2 mm
  • Weight: 310 g

How to use

Mount the DUPS20 on a DIN rail or wall surface according to the installation instructions and connect the input power supply, output load, and an external 24V battery pack. Verify correct polarity and secure all connections. When AC mains power is present the module supplies the load and charges the battery with a 2A charging current. If mains power is lost or interrupted, the device automatically switches the load to the connected battery pack to maintain continuous operation; runtime depends on the battery capacity.

Usage recommendations

Use 24V battery packs within the supported 4AH–135AH range and observe correct polarity during connection. Place the device in a ventilated, dry environment and follow the manufacturer's wiring and safety instructions. Select a battery capacity appropriate for the required backup time and check battery condition periodically for reliable operation.
All features
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Package weight: Weight of the packaged product.
310 g
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-30 - 70
Height: The measurement of the product from head to foot or from base to top.
125.2 mm
Input voltage: The voltage (V) which is required to power the product.
24
Output voltage:
21 - 29
LED indicators:
Yes
Width: The measurement or extent of something from side to side.
40 mm
Depth: The distance from the front to the back of something.
113.5 mm
Product colour: The colour e.g. red, blue, green, black, white.
Silver
Input current:
20
Output current:
2 A
Mounting type: Type of mounting e.g. wall mounting.
Wall mount
DC input voltage:
24
Product type: The sub-category of the product.
Controller
DC current (max):
20 A
