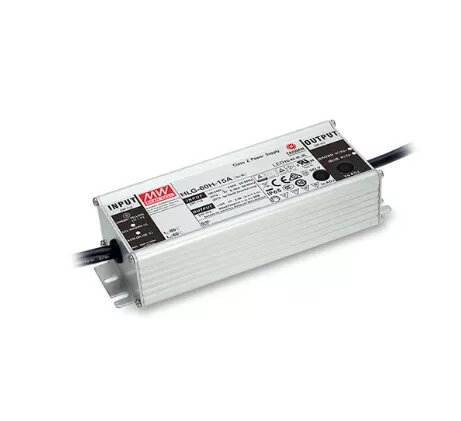

LED driver MEAN WELL HLG-60H-24A Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

LED driver MEAN WELL HLG-60H-24A 60W IP65 90-305V

{{email}}
You keep track of price changes

LED driver MEAN WELL HLG-60H-24A 60W IP65 90-305V

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The MEAN WELL HLG-60H-24A is a reliable LED driver with an output power of 60W and an IP65 rating, suitable for outdoor use. It operates on an AC input voltage of 90-305V and has a compact design with dimensions of 61.5mm width, 171mm depth, and 36.8mm height. Ideal for powering LED lighting systems in various applications.
Available for order: 30 pcs.
Warranty: 2 Years
SKU: 10630599
Manufacturer: mean well
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
Wednesday {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
10.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
10.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The MEAN WELL HLG-60H-24A is a 60W AC/DC LED driver with dual-mode output supporting both constant voltage and constant current. It accepts a wide input range of 90–305VAC and provides a 24V-rated model within the HLG-60H series. The driver features a fanless metal housing with IP65 ingress protection and is designed to operate in case temperatures from -40 °C to +80 °C under free air convection. Efficiency reaches up to 90.5%, making it suitable for indoor and outdoor LED lighting installations.

Advantages

The HLG-60H-24A combines wide AC input compatibility and dual-mode output in a compact, fanless enclosure that supports high efficiency (up to 90.5%). Its metal housing and IP65 protection enable reliable operation in harsh environments, while the -40 °C to +80 °C case temperature range ensures stable performance across a broad temperature span. Multiple dimming options are available to meet different system integration needs.

Suitable for

  • Outdoor LED luminaires and signage
  • Street and area lighting
  • Architectural and landscape lighting
  • Indoor commercial LED fixtures requiring robust, weather-resistant drivers

Key specifications

  • Model: MEAN WELL HLG-60H-24A
  • Output power: 60 W
  • Output type: Dual mode (constant voltage / constant current)
  • Rated output voltage: 24 V (HLG-60H-24A)
  • Input voltage: 90–305 VAC
  • Efficiency: up to 90.5%
  • Ingress protection: IP65
  • Operating case temperature: -40 °C to +80 °C (free air convection)
  • Dimensions (W×D×H): 61.5 × 171 × 36.8 mm
  • Manufacturer: Mean Well, MPN: HLG-60H-24A

How to use

Install the HLG-60H-24A according to local electrical regulations and the manufacturer’s mechanical mounting instructions. Connect the AC input (90–305VAC) to the designated terminals and wire the DC output to the LED load observing correct polarity and the rated output voltage. Select the appropriate output mode (constant voltage or constant current) and configure dimming options if required. Ensure adequate clearance for convection cooling and secure the metal housing to a stable surface; do not block ventilation paths.

Usage recommendations

Use the driver within the specified input and output ranges and maintain the case temperature limits for reliable operation. For outdoor installations, confirm IP65-rated seals and cable entries are correctly implemented. When integrating dimming functions, follow wiring diagrams for the chosen dimming method to avoid damage and ensure compatibility with the LED fixtures.
All features
Height: The measurement of the product from head to foot or from base to top.
36.8 mm
Output voltage:
24
Width: The measurement or extent of something from side to side.
61.5 mm
Depth: The distance from the front to the back of something.
171 mm
Input frequency: The frequency (Hz) which is required to power the product.
47 / 63
Input current:
0.3 - 0.64
Output current:
2.5 A
Output power: The power that the device can produce.
60 W
Power factor:
0.98
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP65
AC input voltage: The voltage of the AC electricity that is inputted into the product.
90 - 305
Dimmer: Device for varying the brightness of an electric light.
Yes
