header-product Power Adapter MEAN WELL LPF-40D-24 25.2W Universal White
32.97 €

Power Adapter MEAN WELL LPF-40D-24 25.2W Universal White

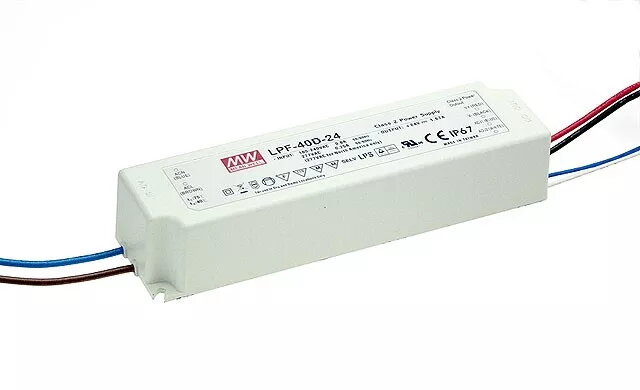

Power Adapter MEAN WELL LPF-40D-24 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Power Adapter MEAN WELL LPF-40D-24 25.2W Universal White

{{email}}
You keep track of price changes

Power Adapter MEAN WELL LPF-40D-24 25.2W Universal White

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The MEAN WELL LPF-40D-24 is a universal power adapter with a power output of 25.2W. It operates at an input frequency of 47/63 Hz and has a long mean time between failures (MTBF) of 394900 hours. The compact design features dimensions of 43 mm in width, 162.5 mm in depth, and 32 mm in height, making it suitable for various applications.
Available for order: 30 pcs.
Warranty: 2 Years
SKU: 10083923
Manufacturer: mean well
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
Monday {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
06.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.45 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
06.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The MEAN WELL LPF-40D-24 is a universal white power adapter providing 25.2 W of regulated DC output in a compact housing. Designed for continuous operation, the adapter accepts a wide input frequency range and is built for long service life with a high mean time between failures. Its slim dimensions make it suitable for installations where space is limited while delivering stable power to LED drivers, communication devices, control modules and other low-power electronics.

Advantages

The adapter combines small physical size with reliable performance and efficient thermal behaviour. It supports universal AC input frequencies and provides steady DC output suitable for sensitive electronics. The long MTBF indicates robust internal components and manufacturing quality. The white finish and compact footprint enable discreet integration into consumer and professional equipment.

Suitable for

  • Powering LED drivers and lighting control systems
  • Supplying small industrial control modules and sensors
  • Providing DC power for communication and networking devices
  • Embedded power for consumer electronics and display units

Key specifications

  • Output power: 25.2 W
  • Input frequency range: 47–63 Hz
  • Dimensions: 43 mm (W) × 162.5 mm (D) × 32 mm (H)
  • Colour: white
  • Designed for continuous operation with high MTBF (approx. 394,900 hours)

How to use

Connect the adapter to an appropriate AC mains supply within the device's specified voltage range and attach the DC output to the target device ensuring correct polarity. Mount the unit in a ventilated location without obstructing airflow around the housing to maintain thermal performance. Verify output voltage and current compatibility with the powered device before the first use and follow any safety instructions from the end equipment manufacturer.

Usage recommendations

Install the adapter in locations protected from direct moisture and excessive dust. Allow sufficient clearance around the adapter for cooling, avoid covering the unit, and use proper strain relief on input and output cabling. Regularly inspect connections and operate within the specified electrical and temperature ranges to ensure long service life.

All features
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.45 kg
Power supply type: The type of power supply which this product uses.
Universal
Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
394900 h
Operating relative humidity (H-H):
20 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 80
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 70
Storage relative humidity (H-H):
10 - 95
Height: The measurement of the product from head to foot or from base to top.
32 mm
Output voltage:
12
Width: The measurement or extent of something from side to side.
43 mm
Depth: The distance from the front to the back of something.
162.5 mm
Product colour: The colour e.g. red, blue, green, black, white.
White
Purpose: What the product is used for.
Universal
Input frequency: The frequency (Hz) which is required to power the product.
47/63
Output current:
3.34 A
Efficiency:
84 %
Output power: The power that the device can produce.
25.2 W
Power protection features: Features that protect the device against power problems e.g. overload.
Overheating, Short circuit, Over voltage, Over current
Power current type:
AC-to-DC
