header-product Power Adapter MEAN WELL PWM-40-12 40.08W Universal Input 90-305V
33.92 €

Power Adapter MEAN WELL PWM-40-12 40.08W Universal Input 90-305V

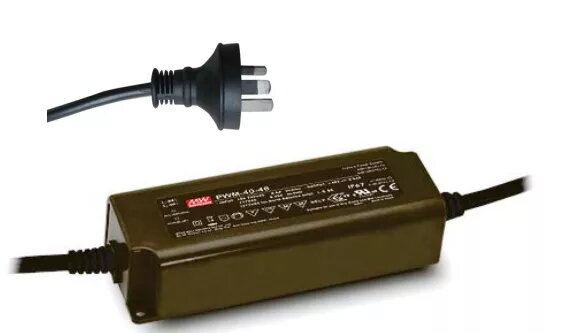

Power Adapter MEAN WELL PWM-40-12 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Power Adapter MEAN WELL PWM-40-12 40.08W Universal Input 90-305V

{{email}}
You keep track of price changes

Power Adapter MEAN WELL PWM-40-12 40.08W Universal Input 90-305V

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The MEAN WELL PWM-40-12 is a universal power adapter with a power output of 40.08W. It supports an input voltage range of 90-305V, making it suitable for various applications, particularly for powering strip lights. The device is compact with dimensions of 53mm width, 150mm depth, and 35mm height, and features a black color. It boasts a long mean time between failures (MTBF) of 995500 hours, ensuring reliability and longevity.
Available for order: 30 pcs.
Warranty: 2 Years
SKU: 9875694
Manufacturer: mean well
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
Tuesday {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
07.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.49 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
07.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The MEAN WELL PWM-40-12 is a universal power adapter with a rated output of 40.08 W and a wide input range of 90–305 V AC. Designed for powering LED strip installations, the compact black unit (53 × 150 × 35 mm) offers high efficiency and a long MTBF, and includes a 1.8 m flex and plug for straightforward connection.

Advantages

This adapter provides even PWM dimming down to 0% output and supports dimming control via resistance, 0–10 V control, or an external PWM signal. It achieves up to 90% efficiency, ensuring lower energy loss during operation, and its universal input makes it compatible with a wide range of mains voltages. The supplied 1.8 m cable and plug simplify installation in typical lighting setups.

Suitable for

  • LED strip lighting in residential and commercial spaces
  • Applications requiring PWM dimming to zero percent
  • Installations using 0–10 V or resistance-based dimming controls
  • Retrofit and new-build lighting projects with 90–305 V mains

Key specifications

  • Model: MEAN WELL PWM-40-12
  • Output power: 40.08 W
  • Input voltage: 90–305 V AC
  • Dimming methods: Resistance, 0–10 V, PWM signal
  • Efficiency: Up to 90%
  • Dimensions (W×D×H): 53 × 150 × 35 mm
  • Cable: 1.8 m flex and plug
  • Color: Black
  • MTBF: 995,500 hours

How to use

Mount the adapter in a dry, ventilated location and connect the mains input (90–305 V AC) according to local electrical codes. Connect the LED strip load to the adapter output, and use the chosen dimming method—resistance, 0–10 V control, or an external PWM signal—to adjust brightness. Ensure all connections are secure before powering on. Follow the manufacturer's wiring diagram and safety instructions when integrating into lighting circuits.

Usage recommendations

For reliable performance, install the adapter with adequate airflow and avoid enclosing it in tight, unventilated spaces. Match the LED load to the rated output and choose a compatible dimming control (resistor, 0–10 V controller, or PWM source) to achieve smooth dimming down to zero percent.
All features
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.49 kg
Power supply type: The type of power supply which this product uses.
Universal
Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
995500 h
Operating relative humidity (H-H):
20 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 80
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 85
Storage relative humidity (H-H):
10 - 95
Height: The measurement of the product from head to foot or from base to top.
35 mm
Input voltage: The voltage (V) which is required to power the product.
90-305
Output voltage:
12
Width: The measurement or extent of something from side to side.
53 mm
Depth: The distance from the front to the back of something.
150 mm
Product colour: The colour e.g. red, blue, green, black, white.
Black
Purpose: What the product is used for.
Strip light
Input frequency: The frequency (Hz) which is required to power the product.
47/63
Input current:
0.6
Output current:
3.34 A
Efficiency:
86 %
Output power: The power that the device can produce.
40.08 W
Power protection features: Features that protect the device against power problems e.g. overload.
Short circuit, Overload, Overheating, Over voltage
Power current type:
AC-to-DC
