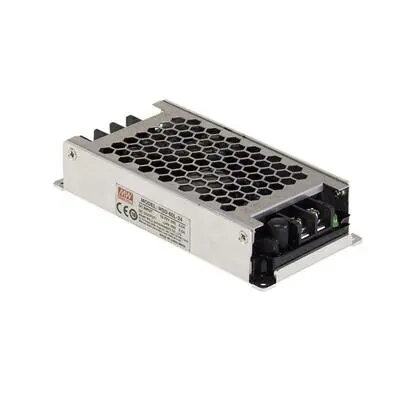

MEAN WELL RSD-60H-12 DC-DC Converter 60W 40-160V to 12V

The MEAN WELL RSD-60H-12 is a high-reliability 60W enclosed DC-DC converter engineered for demanding industrial and railway applications. This unit efficiently converts a wide input voltage range of 40-160V DC into a stable 12V DC output, providing a consistent power supply for sensitive electronic equipment. Its robust design ensures reliable operation in harsh environments, making it a dependable choice for systems requiring high isolation and consistent performance.

Advantages

This converter stands out due to its compliance with the EN50155 railway standard, which guarantees durability under vibration, shock, and extreme temperature conditions. The device features a high 4000V DC input-to-output isolation, protecting connected components from electrical surges and noise. Its compact, enclosed form factor allows for easy integration into space-constrained cabinets, while the high efficiency design minimizes heat generation, contributing to a longer service life for the entire system.

Suitable for

• Railway and transportation signaling systems
• Industrial automation and control equipment
• Telecommunications infrastructure
• Harsh environment power supply requirements
• DC-based electronic systems requiring voltage stabilization

When it may not be suitable

This converter is designed specifically for DC-to-DC applications and cannot be used with AC mains power. It is not intended for high-power applications exceeding its 60W capacity, and users should ensure their load requirements do not exceed the 5A output limit.

Key specifications

• Input voltage range: 40-160V DC
• Output voltage: 12V DC
• Maximum output current: 5A
• Output power: 60W
• Isolation voltage: 4000V DC
• Dimensions: 60 mm x 128 mm x 25 mm
• Compliance: RoHS, EN50155

How to use

Installation should be performed by qualified personnel. Connect the DC input source to the designated input terminals, ensuring the polarity is correct according to the device markings. Connect the 12V output to your load, verifying that the total power consumption does not exceed 60W. Ensure proper ventilation around the unit to maintain optimal operating temperatures, especially in enclosed spaces.

What to consider before purchase

• Verify that your input voltage source falls within the 40-160V DC range.
• Confirm that your equipment requires a 12V DC supply.
• Check that the total power draw of your devices is below 60W.
• Ensure the mounting location provides adequate space for the 60mm x 128mm x 25mm dimensions.

Usage recommendations

For long-term reliability, ensure the converter is mounted in an orientation that allows for natural convection cooling and avoid placing it near heat-generating components. Regularly inspect connections to ensure they remain secure in high-vibration environments.
