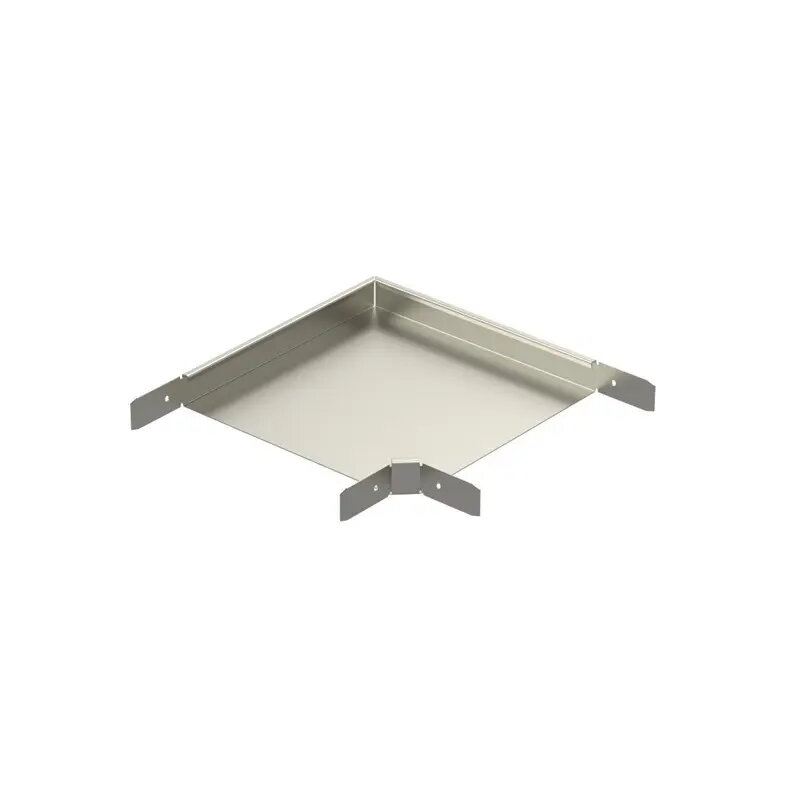

MEKA RS90-40-300 Cable Tray Corner, 90 Degree, Pre-Galvanized, 2 Pieces

The MEKA RS90-40-300 is a professional-grade 90-degree corner piece engineered for seamless integration into cable tray systems. This component is specifically designed to facilitate precise directional changes in cable routing, ensuring that electrical and data lines remain organized, protected, and structurally supported throughout their path. Constructed from high-quality pre-galvanized steel, this corner piece offers robust resistance to environmental factors, making it an ideal choice for maintaining long-term cable management standards in diverse installation environments.

Advantages

The primary benefit of using this corner piece is its ability to maintain the structural integrity of the cable tray system while navigating corners. By providing a pre-formed 90-degree angle, it eliminates the need for manual cutting or bending of trays, which saves significant installation time and reduces the risk of sharp edges damaging cable insulation. The pre-galvanized finish provides a reliable layer of corrosion protection, ensuring that the installation remains durable and aesthetically consistent over time. Furthermore, the inclusion of two pieces in the set allows for efficient planning and implementation of complex cable routes.

Suitable for

• Industrial facility cable management
• Commercial office building electrical installations
• Data center infrastructure routing
• Warehouse lighting and power distribution systems

This product may not be suitable for environments with high levels of chemical exposure or extreme humidity where stainless steel or hot-dip galvanized finishes are required to prevent rapid corrosion. Additionally, it is designed specifically for the corresponding tray dimensions and may not be compatible with cable tray systems from other manufacturers or different series.

Key specifications

• Angle: 90 degrees
• Material: Pre-galvanized steel
• Color: Grey
• Height: 4 cm
• Dimensions: 39.8 cm x 39.8 cm
• Quantity: 2 pieces

To install the corner piece, align the edges of the tray with the corner component and secure them using appropriate fasteners or coupling hardware compatible with the MEKA system. Ensure that the tray is properly supported at the corner to prevent sagging or mechanical stress on the connection points. Verify that all edges are flush and that the cables are laid without excessive tension or sharp bends.

What to consider before purchase

• Verify the compatibility of the tray width and height with your existing system
• Ensure the pre-galvanized finish meets the environmental requirements of your installation site
• Confirm the quantity needed for your specific project layout

For optimal performance and safety, always ensure that the cable tray system is properly grounded and that the weight of the cables does not exceed the load-bearing capacity of the tray configuration.
