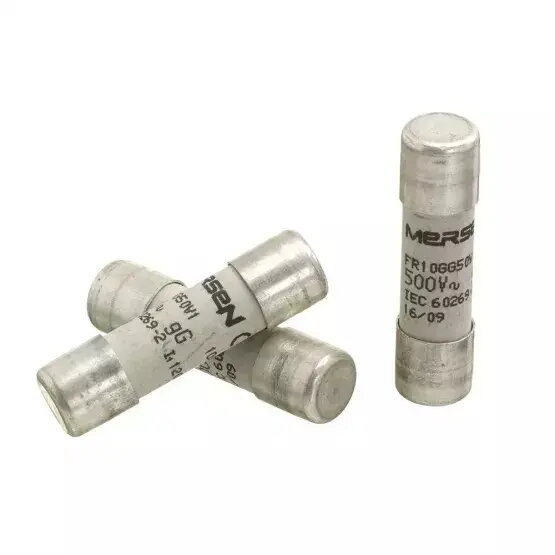

Mersen B212061 Cylindrical Fuse Link 10x38mm 1A 500VAC gG

The Mersen B212061 is a professional-grade cylindrical fuse link engineered for robust electrical protection in industrial and commercial applications. With a compact 10x38mm form factor, this 1A fuse is rated for 500VAC operation and utilizes the gG characteristic, which provides comprehensive protection against both overloads and short circuits. It serves as a critical safety component in electrical distribution networks, control panels, and various equipment setups, maintaining system integrity under demanding conditions.

Advantages

This fuse link offers exceptional reliability and consistent performance in diverse electrical environments. Its gG characteristic ensures a versatile protection profile, making it suitable for a wide range of general-purpose applications where both overload and short-circuit protection are required. The high-quality construction materials and precise manufacturing standards ensure that the fuse operates predictably, minimizing downtime and protecting sensitive downstream components from electrical faults.

Suitable for

• Electrical distribution systems
• Industrial control circuits
• Equipment and machinery protection
• General-purpose electrical installations

When it may not be suitable

This fuse is not intended for applications requiring high-speed protection for sensitive semiconductors, as it is designed for general-purpose gG protection. It is also not suitable for circuits exceeding the 500VAC voltage rating or for currents higher than the 1A nominal rating.

Key specifications

• Dimensions: 10x38mm
• Rated current: 1A
• Rated voltage: 500VAC
• Characteristic: gG (general purpose)

How to use

The fuse should be installed into a compatible 10x38mm fuse holder or disconnect switch. Ensure the power is completely disconnected from the circuit before attempting to insert or replace the fuse. Align the fuse with the holder contacts and press firmly until it is securely seated. Verify that the circuit voltage and current requirements match the specifications of the fuse before restoring power.

What to consider before purchase

• Verify the physical dimensions of your existing fuse holder
• Ensure the circuit voltage does not exceed 500VAC
• Confirm that the 1A current rating is appropriate for your specific load
• Check that the gG characteristic meets your protection requirements

Usage recommendations

Always replace a blown fuse with one of the exact same type, rating, and physical dimensions to ensure continued safety and proper circuit protection. Do not attempt to repair or bypass a fuse under any circumstances.
