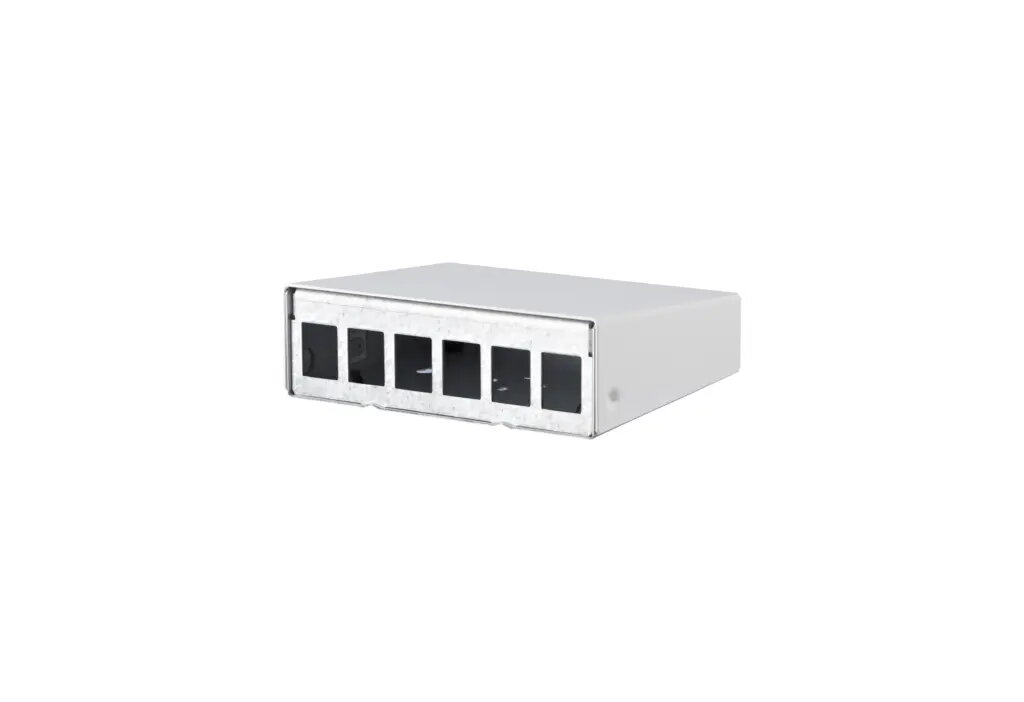

Patch panel accessory Metz 130861-0602KE wall-mount bracket, aluminium/steel/zinc, 125×110×43.6 mm, white

Metz 130861-0602KE wall-mount bracket is a compact, surface-mounted accessory for structured cabling and patch panels. Constructed from aluminium, steel and zinc with a white powder-coated finish, this modular bracket measures 125×110×43.6 mm and is designed to hold multiple keystone modules and individual network components. The housing is halogen-free and complies with REACH and RoHS requirements, making it suitable for office and server room installations where regulatory conformity is required.

Advantages

The design provides a removable upper part without screws for quick access during installation and maintenance. A contact pin enables equipotential bonding, while additional strain relief points on the lower housing accept cable ties to secure patch cords. The bracket supports multiple mounting methods — direct wall mounting, desktop placement, or DIN-rail mounting with a compatible adapter — offering installation flexibility. Available in modular port variants, this 6-port model integrates with other Metz accessories for fiber or cord strain relief when needed.

Suitable for

• Wall-mounted structured cabling in offices and small server rooms
• Mounting keystone jacks, RJ45 modules and small network components
• Surface-mounted patch panel applications where compact footprint is required
• Installations requiring equipotential bonding and cable strain relief

Key specifications

• Dimensions: 125 × 110 × 43.6 mm
• Material: aluminium, steel and zinc
• Finish: white powder-coated (RAL 9010)
• Port count: 6 modular ports (keystone compatible)
• Mounting options: direct wall mount, desktop placement, DIN-rail with adapter
• Halogen-free construction; REACH and RoHS compliant
• Equipotential bonding via contact pin
• Additional strain relief provisions for cable ties; removable bottom on select variants
• Modular design supporting optional FO extension sets and strain relief accessories

How to use

Mount the bracket to a stable wall surface using appropriate fasteners through the provided fastening clearances. Fit keystone modules or RJ45 jacks into the modular openings, then place the upper housing part over the modules; the upper part locks without screws for easy access. Use the contact pin for equipotential bonding as required by your site grounding scheme. Secure patch cords with cable ties at the lower strain relief points and, if applicable, attach the DIN-rail adapter for rail mounting.

Usage recommendations

For reliable performance, install the bracket in environments within typical indoor temperature and humidity ranges, avoid exposure to direct moisture, and use appropriate cable management to prevent strain on connectors. When installing fiber modules or additional accessories, use the compatible Metz extension sets and strain-relief parts to maintain secure and organized terminations.
