Socket-outlet RJ-45 Metz 130B11D21200-E Category 6a Metallic IPX2 69.9×69.9×33 mm

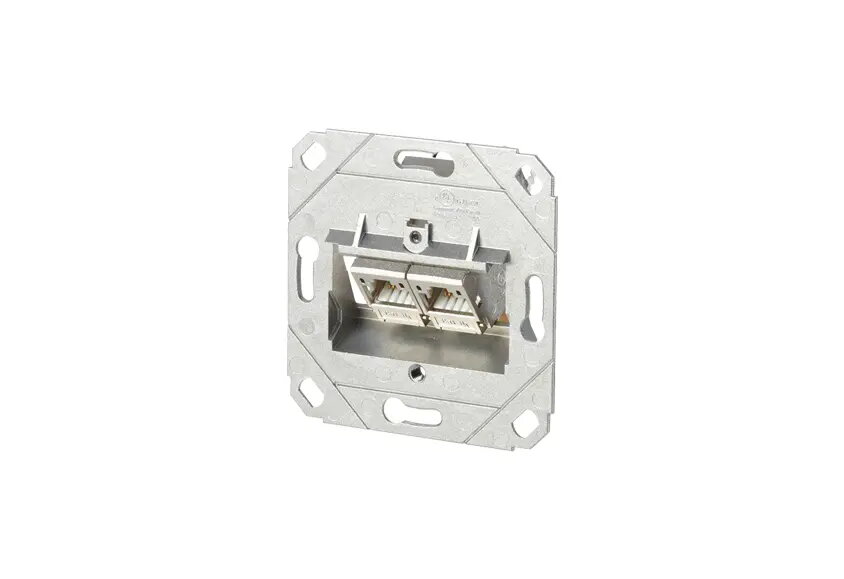

Socket-outlet RJ-45 Metz 130B11D21200-E Category 6a Metallic is a compact wall-mounted network outlet designed for structured cabling in offices, server rooms and residential installations. The unit supports Category 6a performance for high-speed Ethernet and is built with a metallic housing of steel and zinc. With protection rating IPX2 and dimensions 69.9 × 69.9 × 33 mm, the outlet provides a robust, space-saving termination for two RJ-45 connections and accommodates modern applications including 10 GBit Ethernet and Power over Ethernet variants.

Advantages

The Metz outlet combines certified Cat.6A component performance with a durable metallic enclosure to offer reliable signal integrity and physical protection. It is certified to GHMT Cat.6A re-embedded PVP and complies with international standards for component testing and class EA performance up to 500 MHz, with component tests to higher frequencies. The design supports both solid and stranded conductors via IDC termination and includes a strain relief for secure cable management. Its compact dimensions and metallic finish make it suitable where space and mechanical resistance are important.

Suitable for

• High-speed Ethernet networks up to 10 GBit/s (IEEE 802.3an)
• Structured cabling in offices, server rooms and apartments
• Remote powering applications: PoE, PoE+ and UPoE
• HDBaseT signal transmission and multimedia installations

Key specifications

• Connector: 2 × RJ-45, Category 6a (Class EA)
• Frequency performance: compliant to class EA up to 500 MHz; components tested up to 600 MHz, link testing up to 800 MHz
• Termination: Insulation Displacement Connector (IDC) for AWG 26/1 to 22/1 (solid) and AWG 26/7 to 22/7 (stranded)
• Housing material: steel and zinc (metallic finish)
• Protection rating: IPX2
• Rated current: 1 A
• Module orientation: 45° downwards module plug direction; 2 ports, 180° module

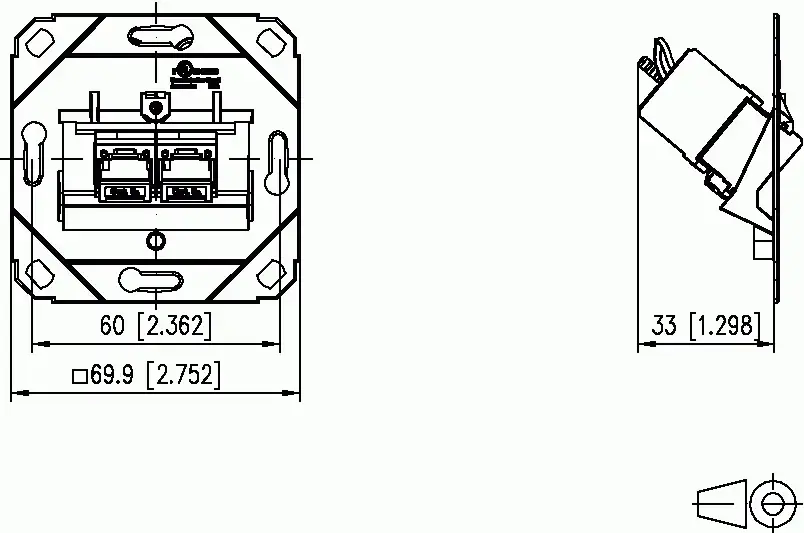

• Dimensions: 69.9 × 69.9 × 33 mm

How to use

Install the outlet into an appropriate mounting frame or compatible central unit following the manufacturer's guidelines; note that this product is not suitable for mounting in standard flush-mounted or cavity wall casings. Prepare and strip network cables according to structured cabling best practices, insert conductors into the IDC termination for solid or stranded wire sizes within the supported AWG range, and engage the strain relief and stuffer cap to secure the cable. Verify correct wiring and continuity with a suitable cable tester and ensure the module orientation (45° downwards) is respected when connecting patch cords.

Usage recommendations

Use the outlet within Ethernet systems that require Cat.6A/Class EA performance and where mechanical robustness is needed. For compliance with warranty and performance claims, terminate cables using the specified AWG ranges and perform post-installation testing. Avoid installation in standard cavity wall casings; select compatible central units or frames, and consider a JUNG 3‑port central unit only if a 3‑port configuration is required.
