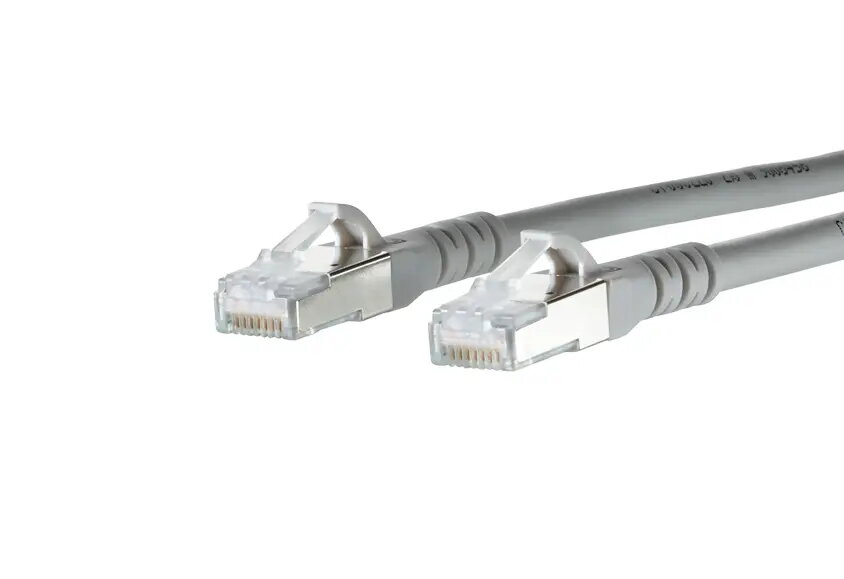

Networking cable MetzConnect Cat.6A 25 m S/FTP (S‑STP) RJ‑45 grey

MetzConnect Cat.6A 25 m S/FTP (S‑STP) RJ‑45 grey is a fully shielded Cat6A patch cable designed for high-speed Ethernet and structured cabling. The 25 m length and S/FTP (S‑STP) construction with individual pair foil and overall braid reduce crosstalk and electromagnetic interference, supporting Class EA performance up to 500 MHz and data rates up to 10,000 Mbit/s. Fitted with two shielded RJ‑45 connectors with gold‑plated contacts and a snagless boot with integrated lever protection, the cable is suitable for server rooms, office networks and installations that require reliable transmission and compatibility with shielded and unshielded Class EA systems.

Advantages

The MetzConnect Cat.6A cable provides full pair and overall shielding to limit interference and preserve signal integrity in environments with increased electromagnetic noise. Certified to relevant standards for Cat6A performance and GHMT testing, it supports 10 GBit Ethernet, Remote Powering (PoE, PoE+ and UPoE) and HDBaseT applications. The halogen‑free (LSZH/LSHF) sheath improves safety in confined installations, while the snagless boot and robust RJ‑45 connectors ensure secure, durable terminations and easy handling during installation.

Suitable for

• 10 GBit Ethernet links in server rooms and data centers
• Structured cabling systems meeting Cat6A / Class EA requirements
• PoE, PoE+ and UPoE powered devices such as access points and IP cameras
• HDBaseT installations for audio/video distribution
• Shielded network environments and mixed shielded/unshielded Class EA systems

Key specifications

• Cable category: Cat.6A (Class EA)
• Topology / shielding: S/FTP (individual pair foil with overall braid, S‑STP)
• Conductor construction: 4x2x AWG 26/7 (PIMF)
• Length: 25 m
• Connectors: two shielded RJ‑45 male connectors with gold‑plated contacts and snagless boot
• Bandwidth: up to 500 MHz (link performance to ISO/IEC 11801 Ed.2.2)
• Data rate: up to 10,000 Mbit/s (10 GBit Ethernet)
• Sheath material: LSHF / LSOH (halogen‑free)
• Standards: ISO/IEC 11801 Ed.2.2 and IEC 61935‑2 tested; GHMT certified

How to use

Connect the shielded RJ‑45 plugs to the corresponding ports on networking equipment, ensuring the cable shield is properly bonded to the installation ground where required by the system design. Route the cable without sharp bends and avoid running parallel to high-voltage power lines to minimize interference. The snagless boot protects the connector latch during insertion and removal; fully insert the plug until the latch engages. For structured cabling, label both ends according to site documentation and verify link performance with appropriate testing tools after installation.

Usage recommendations

For optimal performance, use this MetzConnect Cat.6A cable within its specified length and frequency range, maintain proper grounding for shielded systems, and perform post‑installation tests (e.g., channel certification to Class EA) when deploying in mission‑critical environments. Store cables in a dry environment and avoid excessive tensile stress during installation.
