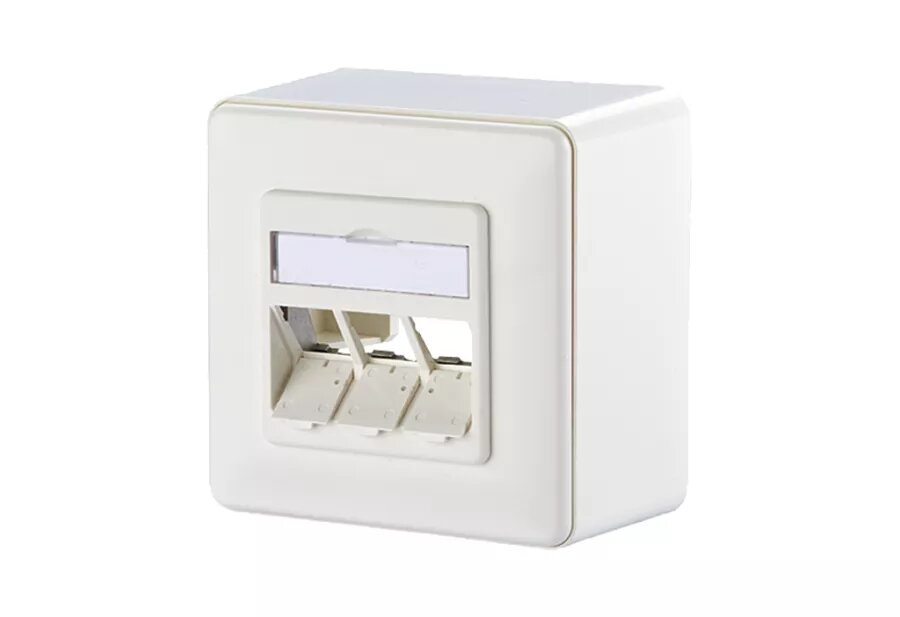

Wall Plate Metz Connect 1309160002-E RJ-45 White 85x85mm

Wall Plate Metz Connect 1309160002-E is a surface-mounted termination unit designed for individual modules with the "modul" design, sized 85 x 85 x 35 mm. The plate is intended for RJ-45 modules and includes an integrated strain relief on the module, a label window for enclosed identification labels and dust protection covers. Cover parts are available in pure white RAL 9010 or pearl white RAL 1013 with a structured, matt finish. Note: C6Amodul and E-DAT modul coupler 8(8) individual modules are not compatible.

Advantages

The wall plate offers a compact 85 x 85 mm footprint and 35 mm depth for surface-mounted installations and supports module plug direction at 45° downwards for easier cable routing. An integrated strain relief helps secure connected cables while the label window accepts standard identification labels for clear port marking. Dust protection covers are built into the design to protect unused openings and are available in two white shades to match different interior finishes.

Suitable for

• RJ-45 data and network terminations
• Surface-mounted installations in offices, server rooms or residential spaces
• Situations requiring visible labeling and secure cable strain relief

Key specifications

• Product name: Wall Plate Metz Connect 1309160002-E RJ-45 White
• Dimensions: 85 x 85 x 35 mm (W x H x D)
• Compatible modules: individual "modul" design (except C6Amodul and E-DAT modul coupler 8(8))
• Module plug direction: 45° downward
• Features: strain relief on module, label window, integrated dust protection covers
• Cover colors/finish: Pure white RAL 9010 or Pearl white RAL 1013, structured matt surface

How to use

Mount the plate on a suitable flat surface using appropriate screws or adhesive for the installation environment. Insert a compatible RJ-45 individual module into the module opening with the plug oriented 45° downward, engage the module’s strain relief, and close the cover. Fit identification labels into the label window using the recommended label sheet size. Ensure dust protection covers are closed on unused openings to prevent contamination.

Usage recommendations

Use the plate with compatible Metz Connect or industry-standard RJ-45 "modul" format inserts only; do not attempt to fit C6Amodul or E-DAT modul coupler 8(8) individual modules. For best results, use the specified label sheet size and match the cover color to your interior for a uniform appearance.
