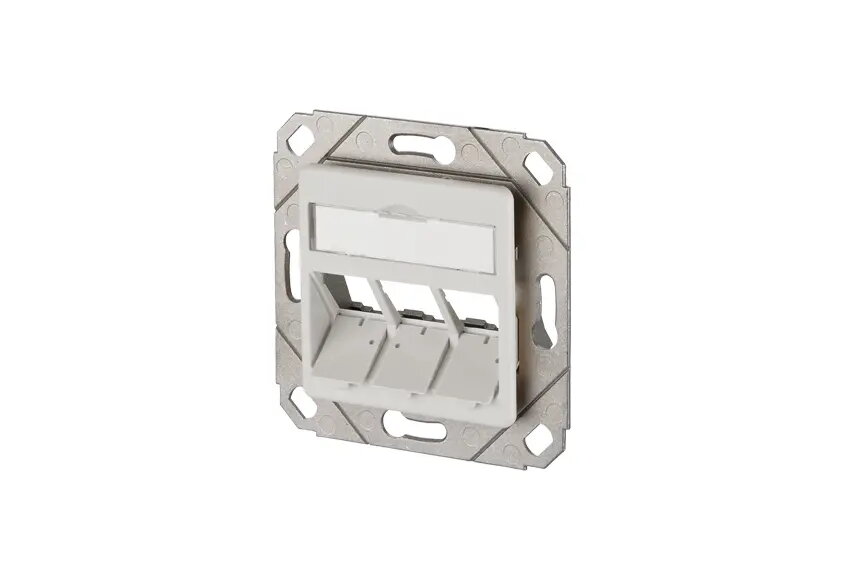

Socket outlet MetzConnect 1309161102-E, white ABS housing, 69.9×69.9×21.2 mm

MetzConnect socket outlet 1309161102-E features a white ABS housing with compact outer dimensions of 69.9 × 69.9 × 21.2 mm, designed for flush mounting in wall installations. The unit is intended as a termination element for individual modules in a modular design and provides a low-profile interface for electrical or data modules. Its structured matte surface and integrated dust protection covers ensure a discreet, hard-wearing finish suitable for residential and commercial environments.

Advantages

The outlet supports module plug direction at 45° downwards and includes strain relief on the module, improving cable management and connection stability. A label window accepts enclosed identification labels for clear port marking. Cover parts are available in pure white (RAL 9010) or pearl white (RAL 1013) with a textured matte surface for reduced visibility of fingerprints and wear. Integrated dust protection covers and compatibility with common design central units increase installation flexibility.

Suitable for

• Flush-mounted wall installations in homes and offices
• Termination for modular data or electrical modules in cable ducts
• Environments requiring low-profile, hard-wearing outlet finishes

Key specifications

• Housing material: ABS synthetic
• External dimensions: 69.9 × 69.9 × 21.2 mm
• Mounting type: flush-mounted / for cable duct termination
• Module plug orientation: 45° downwards
• Strain relief: integrated on module
• Label window: present for identification labels
• Dust protection: integrated covers (also available in colored versions)
• Cover finish: structured surface, matt
• Available colors: pure white (RAL 9010) and pearl white (RAL 1013)
• Port variants: 1-port, 2-port, 3-port

How to use

Install the MetzConnect outlet by mounting it flush into the prepared wall or cable duct opening following standard electrical and mounting procedures. Insert the required modular inserts into the termination unit, ensuring the module plug is oriented 45° downwards for correct cable routing. Secure cables using the integrated strain relief and fit identification labels into the label window. Close the dust protection covers to protect unused ports and maintain a clean appearance.

Usage recommendations

For reliable results, use compatible modular inserts and central units from recognized manufacturers and verify mechanical compatibility when combining with design central units. Match the cover color (RAL 9010 or RAL 1013) to surrounding switch lines for a consistent visual appearance and keep identification labels up to date to simplify maintenance.
