Wire connector MetzConnect 130B21-E for Cat6/6e/6a, silver, copper-plated contacts, 14.7×36×20 mm, pack of 10

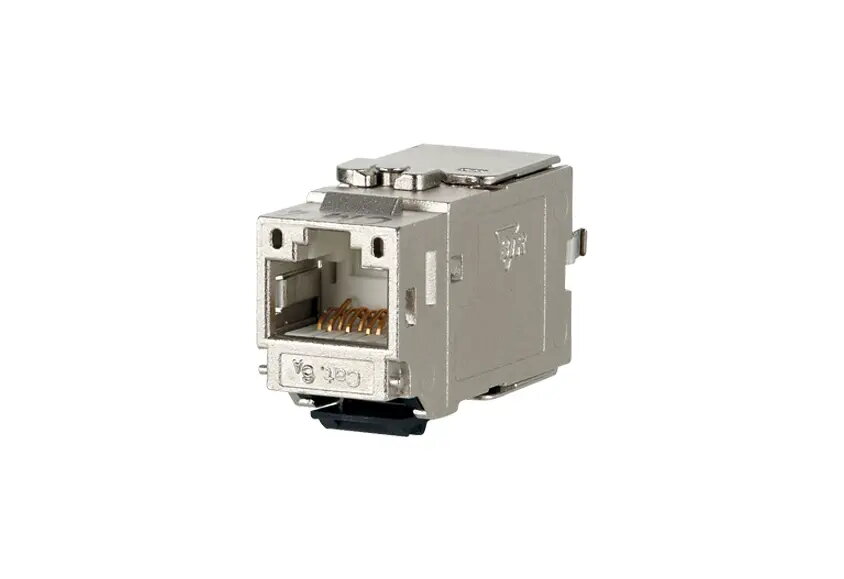

MetzConnect 130B21-E is a modular silver keystone wire connector for terminating and joining Cat6/6e/6a network cables. The compact module (14.7 × 36 × 20 mm) features copper‑plated contacts and a one‑piece, zinc die‑cast housing designed for reuse. The connector supports both solid and stranded conductors and is supplied in packs of 10, making it suitable for structured cabling and installation tasks requiring compact, tool‑friendly termination units.

Advantages

The connector offers IDC termination without special tools and a snap‑on strain relief in the stuffer cap for quick, repeatable installations. Conductor assignment for T568A and T568B is printed on the stuffer cap to simplify wiring. The housing and contact materials ensure reliable signal transmission and mechanical stability, while the compact keystone format enables easy mounting in patch panels, wall plates or housings that accept Keystone modules.

Suitable for

• Termination of Cat6/6e/6a Ethernet cables
• Structured cabling installations and patch panels
• Field joins and quick replacements in network racks or wall outlets
• Applications requiring PoE, PoE+ or UPoE and 10 GBase‑T links

Key specifications

• Connector type: Keystone modular termination unit (RJ45), 180° cable feed
• Compatible cable classes: Cat6 / Cat6e / Cat6a
• Contact plating: Copper‑plated contacts
• Housing material: Zinc die‑cast, one‑piece reusable module

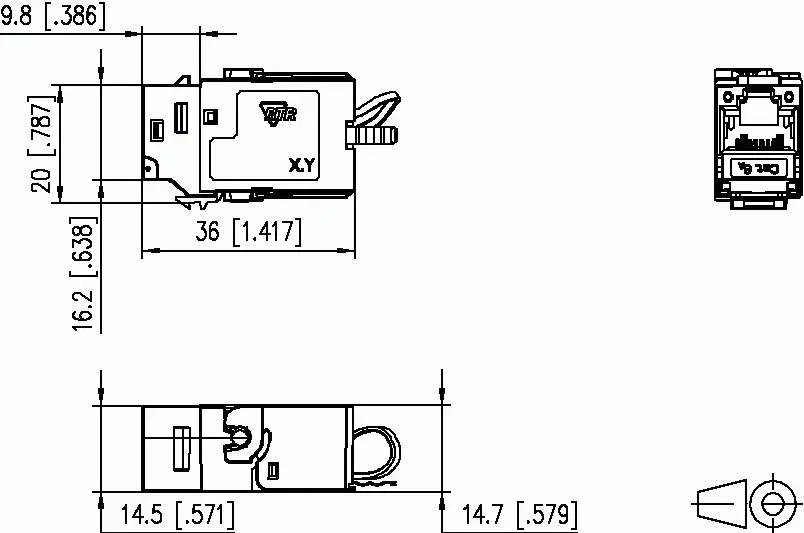

• Dimensions (W×D×H): 14.7 × 36 × 20 mm
• Wire compatibility: Solid AWG 26/1 to 22/1 and stranded AWG 26/7 to 22/7
• Cable management: Intelligent stuffer cap suitable for heavily twisted cables
• Performance: Certified to Class EA up to 500 MHz, component tested up to 600 MHz, link tested up to 800 MHz
• Supported protocols: 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE / PoE+ / UPoE) and HDBaseT
• Pack quantity: 10 pieces

How to use

Prepare the cable by stripping the outer jacket and arranging individual conductors according to the chosen wiring standard (T568A or T568B). Insert conductors into the stuffer cap following the printed assignment and press the insulation displacement connectors to make contact; no special tools are required for the IDC termination. Snap the strain relief onto the stuffer cap to secure the cable. Insert the keystone module into an appropriate panel or outlet opening until it locks into place.

Usage recommendations

For optimal performance, use cables that match Cat6/6e/6a specifications and verify conductor order before termination. Avoid excessive bending or stress on the terminated cable near the connector. For permanent installations in high‑performance links, verify end‑to‑end performance with appropriate test equipment after installation.
