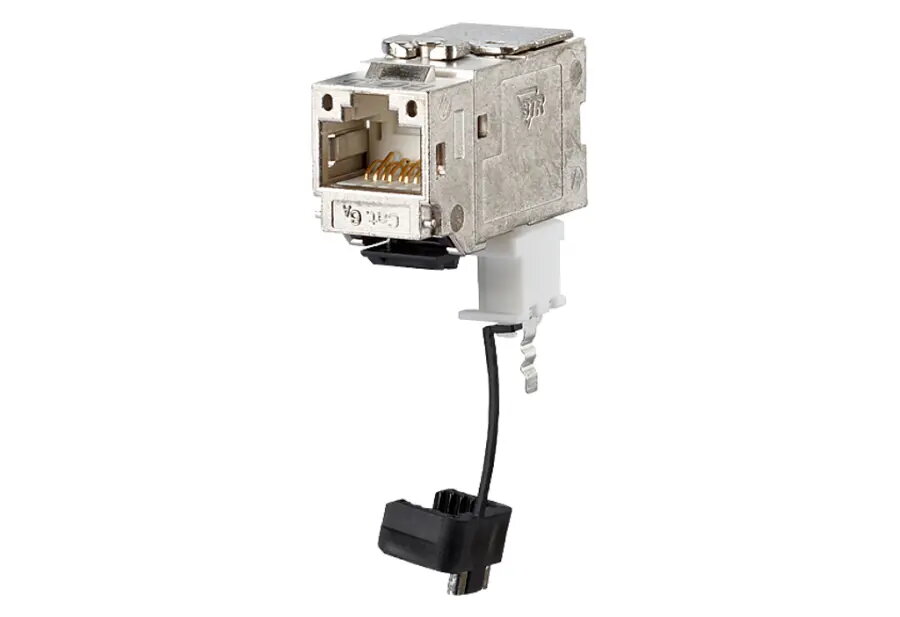

Wire connector MetzConnect 130B22-E for Cat6/6e/6a cables, silver, copper-plated contacts

MetzConnect 130B22-E is a silver keystone-style wire connector engineered for terminating Cat6/6e/6a Ethernet cables. The module features copper-plated contacts and a zinc die-cast refined, one-piece housing that is reusable and robust. The connector accepts 270° cable entry and is supplied in packs of 10, designed for structured cabling installations where compact, tool-free mounting and dependable signal performance are required. It is RoHS compliant and sized at 14.7 mm × 36 mm × 29 mm for straightforward integration into patch panels and keystone faceplates.

Advantages

The connector provides reliable insulation displacement connections (IDC) for both solid and stranded conductors, supporting AWG 26/1 to 22/1 (solid) and AWG 26/7 to 22/7 (stranded). Intelligent cable management within the stuffer cap simplifies alignment of heavily twisted pairs and permits quick conductor assignment using T568A and T568B markings printed directly on the cap. No special tools are required for mounting and strain relief is achieved by snapping the clamp directly onto the stuffer cap. The component is tested and certified for Cat6A performance, supporting high-frequency transmission and modern network requirements such as 10 GBit Ethernet and Remote Powering standards (PoE, PoE+ and UPoE).

Suitable for

• Termination of Cat6/6e/6a solid and stranded network cables
• Quick installations in patch panels, keystone wall plates and structured cabling
• Environments requiring 10 GBit Ethernet, PoE, PoE+ or UPoE support
• Installations where tool-free mounting and reusable modules are preferred

Key specifications

• Connector type: keystone / modular Cat.6A RJ45 termination unit
• Cable entry: 270° cable feed
• Contacts: copper-plated connector contacts
• Housing: one-piece, zinc die-cast refined, reusable module
• Wire compatibility: AWG 26/1 to 22/1 (solid), AWG 26/7 to 22/7 (stranded)
• Color: silver

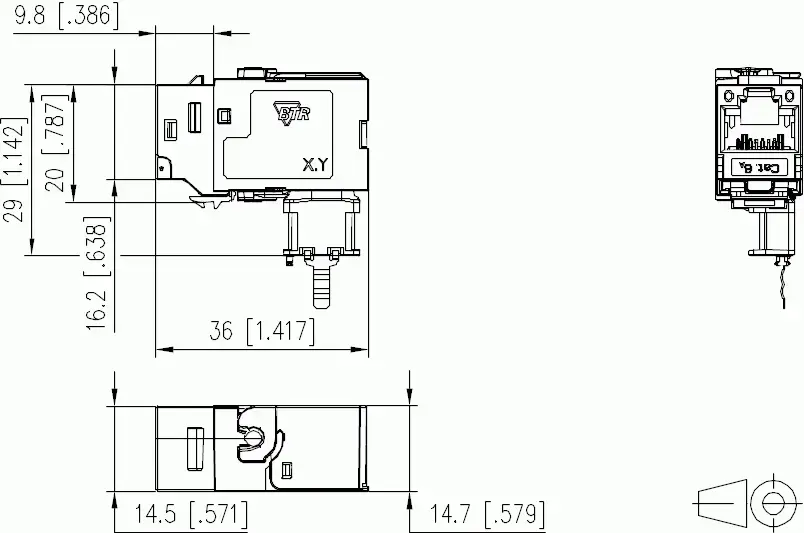

• Dimensions: 14.7 mm (W) × 36 mm (D) × 29 mm (H)
• Standards: component testing to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51; GHMT certified
• Performance: class EA up to 500 MHz (certified), component tested up to 600 MHz and link tested up to 800 MHz
• Network support: 10 GBit Ethernet (IEEE 802.3an), HDBaseT, PoE / PoE+ / UPoE
• Pack size: 10 pieces

How to use

Prepare the cable by stripping the outer jacket to the length indicated by the stuffer cap, fan out pairs and align conductors to the color-coded T568A or T568B layout printed on the cap. Insert conductors into the IDC positions and press the stuffer cap down until the contacts engage the wires. Snap the integrated strain relief onto the stuffer cap to secure the cable without special tools. Insert the assembled keystone module into a compatible faceplate or patch panel slot until it locks in place. For stranded conductors, ensure pair alignment and full insertion to maintain contact integrity.

Usage recommendations

Use the connector with properly prepared Cat6/6e/6a cables and follow the printed conductor assignment to maintain performance. Avoid excessive cable twisting beyond the stuffer cap, and verify terminations with appropriate certification or testing equipment when installing high-speed links or critical network segments.
