header-product RAID controller Microchip Technology SmartRAID 3258-16i/e
1,147.49 €

RAID controller Microchip Technology SmartRAID 3258-16i/e

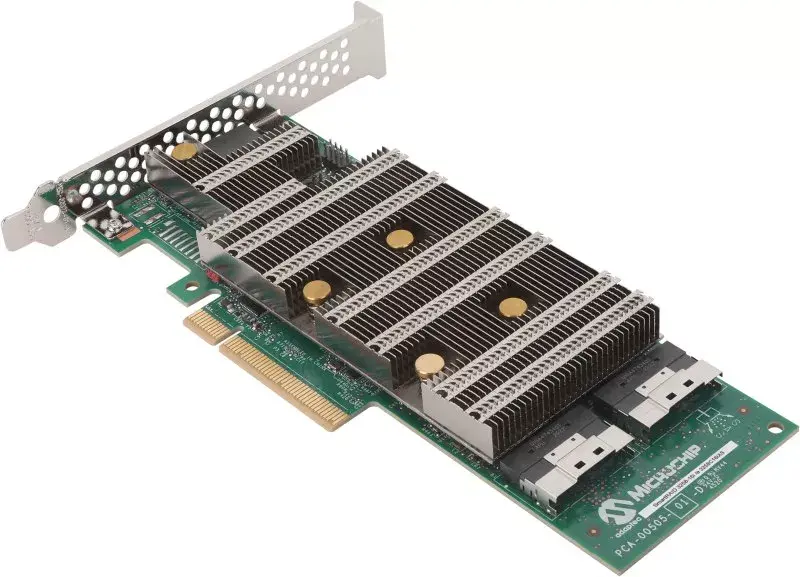

RAID controller Microchip Technology SmartRAID 3258-16i/e Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

RAID controller Microchip Technology SmartRAID 3258-16i/e

{{email}}
You keep track of price changes

RAID controller Microchip Technology SmartRAID 3258-16i/e

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Microchip Technology SmartRAID 3258-16i/e is a high-performance RAID controller with PCI Express x8 interface, supporting SAS-4 and SATA III drives. It features RAID levels 0, 1, 5, 6, 10, 50, and 60, ensuring data protection and flexibility. With a data transfer rate of 24 Gbit/s and 8192 MB internal memory, it is ideal for demanding applications. Compatible with Windows 10, its compact design (167 mm x 64 mm) makes it suitable for various systems.
Available at price 1,147.49 €: 289 pcs.
Total available for order: 578 pcs.
Warranty: 2 Years
SKU: 4332812
Manufacturer: MICROCHIP
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
28.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
01.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.56 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
01.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 39.93 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Microchip Technology SmartRAID 3258-16i/e is a high-performance RAID controller designed for demanding server and enterprise storage environments. Built on the 5th generation SmartROC 3200 controller, this adapter utilizes a PCIe Gen 4 x8 host interface to deliver exceptional throughput and low latency. It supports Tri-Mode connectivity, allowing for the integration of SAS, SATA, and NVMe drives, making it a versatile solution for modern data centers and storage systems.

Advantages

This RAID controller offers significant performance improvements through advanced technologies such as DirectPath, which integrates a PCIe switch to minimize latency for NVMe storage. The inclusion of Dynamic Channel Multiplexing technology ensures high link efficiency when using SAS or SATA drives on 24G SAS infrastructure. Furthermore, the device prioritizes security with a hardware root of trust aligned with the Open Compute Security Project and supports controller-based encryption for SAS, SATA, and NVMe media, ensuring comprehensive data protection.

Suitable for

  • Enterprise-grade server storage systems
  • Data center infrastructure management
  • High-performance NVMe storage arrays
  • Complex RAID configurations requiring high reliability

When it may not be suitable

This controller is designed for professional server environments and may not be suitable for standard desktop PCs or home workstations due to its specialized interface requirements and cooling needs. It is also not intended for systems lacking PCIe Gen 4 compatibility, as this would limit the performance capabilities of the adapter.

Key specifications

  • Host Interface: PCIe Gen 4 x8
  • Supported Media: SAS, SATA, and NVMe
  • Internal Memory: 8192 MB
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Data Transfer Rate: 24 Gbit/s
  • Dimensions: 167 mm x 64 mm

How to use

Installation requires a compatible PCIe slot within a server chassis. Once physically installed, the controller should be connected to the backplane using appropriate cables. Configuration is managed through the system BIOS or the provided storage management software, which supports industry-standard protocols like Redfish for simplified integration. Ensure that the latest drivers are installed on the host operating system to enable full functionality of the Tri-Mode features.

What to consider before purchase

  • Verify PCIe slot compatibility and physical space within the server chassis
  • Ensure the power supply unit can handle the additional load of the storage array
  • Confirm that the backplane supports the intended drive types (SAS, SATA, or NVMe)
  • Check for compatibility with your specific server operating system

Usage recommendations

For optimal performance and data integrity, it is recommended to utilize the controller-based encryption features and keep the firmware updated via the manufacturer's diagnostic tools. Ensure adequate airflow within the server enclosure to maintain stable operating temperatures during high-throughput tasks.
All features
Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
8192 MB
Internal memory type: The type of internal memory such as RAM, GDDR5.
DDR4
Height: The measurement of the product from head to foot or from base to top.
64 mm
RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
60, 50, 10, 6, 5, 1
Data transfer rate: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
24 Gbit/s
Width: The measurement or extent of something from side to side.
167 mm
Host interface: Interface that enables a host controller to communicate with a driver.
PCI Express x8
Memory clock speed: The frequency at which the memory (e.g. RAM) runs.
3200 MHz
Number of devices supported: The amount of devices that can be used with this product.
16
S.M.A.R.T. support:
Yes
PCI Express slots version:
4.0
Windows operating systems supported: Windows vesions wich can be used with the device.
Windows 10
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
SSD support: Solid-state drive (SSD), a type of memory, can be used with this product.
Yes
RAID Level Migration:
Yes
Online Capacity Expansion:
Yes
Supported storage drive interfaces:
Serial ATA III, SAS-4
Harmonized System (HS) code:
84733080
