header-product RAID Controller Microchip Technology 3258UPC16IXS PCI Express x16 4.0
2,171.49 €

RAID Controller Microchip Technology 3258UPC16IXS PCI Express x16 4.0

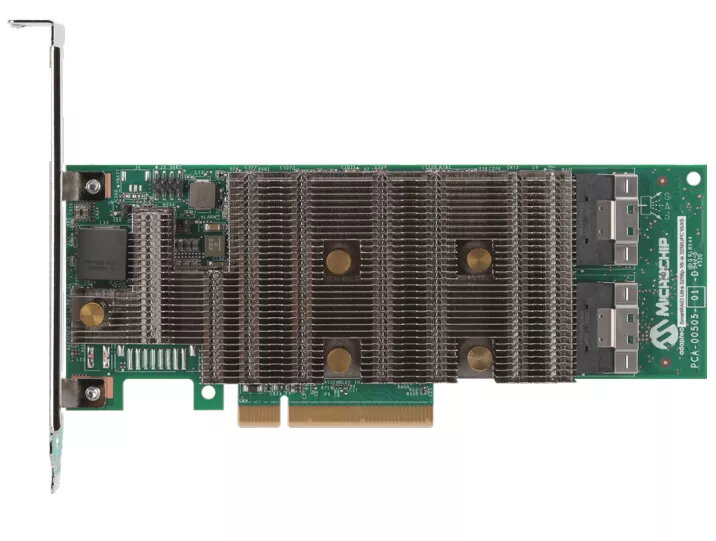

RAID Controller Microchip Technology 3258UPC16IXS Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

RAID Controller Microchip Technology 3258UPC16IXS PCI Express x16 4.0

{{email}}
You keep track of price changes

RAID Controller Microchip Technology 3258UPC16IXS PCI Express x16 4.0

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Microchip Technology 3258UPC16IXS is a RAID controller that supports PCI Express 4.0 and x16 host interface. It offers RAID levels 0, 1, 5, 6, 50, and 60, ensuring data redundancy and performance. Certified with CE, FCC, UL, and more, it measures 68.9 mm in width and 167.7 mm in depth, making it a reliable choice for storage solutions.
Available at price 2,171.49 €: 3 pcs.
Total available for order: 6 pcs.
Warranty: 2 Years
SKU: 10751297
Manufacturer: MICROCHIP
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
05.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
05.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 723.83 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities
36 months installment: from 60.32 euros per month
Leasing for legal entities: from 75.57 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Microchip SmartRAID 3200 series RAID controller (model family exemplified by the 3258UPC16IXS) is a Tri‑Mode SAS/SATA/NVMe PCIe Gen4 storage adapter designed for server, storage system and data center use. Built on the SmartROC 3200 controller, the product family supports x8 and x16 PCIe Gen4 host interfaces and multiple media‑facing port variants for internal and external connectivity. SmartRAID Ultra variants provide higher bandwidth and memory configurations for demanding NVMe and multi‑port SAS SSD workloads. The adapters include features for low latency NVMe DirectPath, 24G SAS (SAS‑4) support with Dynamic Channel Multiplexing, native host adapter and RAID modes, and hardware‑based supply chain and compute security with controller‑based maxCrypto™ encryption for SAS, SATA and NVMe media.

Advantages

The SmartRAID 3200 family combines Gen4 PCIe bandwidth with Tri‑Mode support to enable unified NVMe, SAS and SATA storage on a single adapter. Ultra models double host bandwidth with a x16 interface and offer higher memory widths for improved RAID write throughput and accelerated NVMe Controller‑Based Encryption. Built‑in maxCrypto™ provides AES‑256 controller‑based encryption for data‑at‑rest across supported media with local key management and FIPS 140‑2/Level 1 readiness. Additional advantages include low‑latency DirectPath for NVMe, near‑100% link efficiency on 24G SAS with Dynamic Channel Multiplexing, mixed RAID/HBA mode support, onboard flash cache backup with an ASCM capacitor module, and integrated management via the maxView tools suite.

Suitable for

  • Enterprise servers and storage arrays requiring mixed NVMe, SAS and SATA support
  • Data centers needing high throughput and low latency NVMe or multi‑port SAS SSD deployments
  • Systems requiring hardware‑based data‑at‑rest encryption and supply‑chain root of trust
  • Environments where remote management and monitoring via web and CLI tools is required

Key specifications

  • Host interface: PCI Express Gen4 x16 (also available in x8 variants)
  • Tri‑Mode support: NVMe, SAS, SATA
  • RAID levels: 0, 1, 5, 6, 50, 60 (plus HBA/raw device mode and mixed mode)
  • Memory: DDR4 3200 MHz configurations (72‑bit or 144‑bit on Ultra variants)
  • NVMe features: DirectPath low‑latency support and x1/x2/x4/x8 SSD lane flexibility
  • SAS support: 24G SAS (SAS‑4) with Dynamic Channel Multiplexing
  • Encryption: Controller‑based AES‑256 maxCrypto™ for SAS, SATA and NVMe
  • Onboard cache protection: flash backup with ASCM capacitor module
  • Form factor dimensions (example card): width ~68.9 mm, depth ~167.7 mm

How to use

Install the controller into a compatible PCIe Gen4 x16 (or x8) slot on a server motherboard following the server manufacturer's instructions. Connect storage devices using the appropriate internal or external Tri‑Mode connectors and configure device mode (RAID or HBA/mixed) through the adapter firmware or host management tools. Create RAID arrays and manage caching and encryption settings using the Adaptec maxView tools (arcconf CLI or HTML5 web GUI) or compatible storage management software. Ensure firmware and management software are updated to the recommended versions for optimal interoperability.

Usage recommendations

For best performance with database, virtualization and high‑IOPS workloads, use SmartRAID Ultra x16 boards with 144‑bit DDR4 3200 MHz memory and configure NVMe devices in DirectPath mode where low latency is critical. Enable controller‑based maxCrypto™ when regulatory or organizational data‑at‑rest encryption is required, and monitor ASCM capacitor health through maxView to ensure reliable flash cache protection.

Specifications

Host interface: Interface that enables a host controller to communicate with a driver.
PCI Express x16
Supported storage drive interfaces:
PCI Express 4.0
RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
50, 60, 6, 5, 1
All features

Weight & dimensions

Depth: The distance from the front to the back of something.
167.65 mm
Width: The measurement or extent of something from side to side.
68.9 mm

System requirements

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Windows operating systems supported: Windows vesions wich can be used with the device.
Yes

Technical details

Sustainability compliance:
Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

Ports & interfaces

PCI Express slots version:
4.0
Host interface: Interface that enables a host controller to communicate with a driver.
PCI Express x16
Supported storage drive interfaces:
PCI Express 4.0

Performance

Certification:
CE, FCC, UL, C-tick, VCCI, KCC, CNS
S.M.A.R.T. support:
Yes
SSD support: Solid-state drive (SSD), a type of memory, can be used with this product.
Yes
RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
50, 60, 6, 5, 1
