header-product MicroConnect MC-SSDSATACONV Internal M.2 to SATA Interface Adapter Card with ASM1456 Main Chip
19.49 €

MicroConnect MC-SSDSATACONV Internal M.2 to SATA Interface Adapter Card with ASM1456 Main Chip

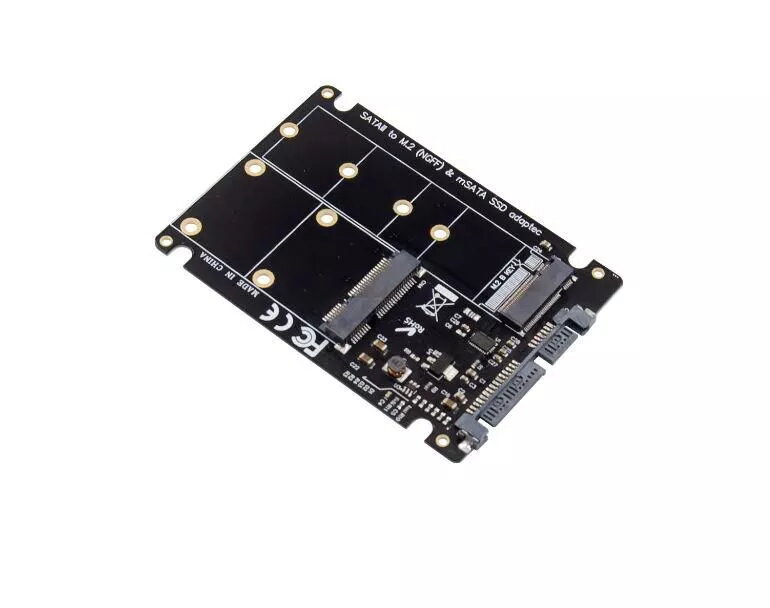

MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 1

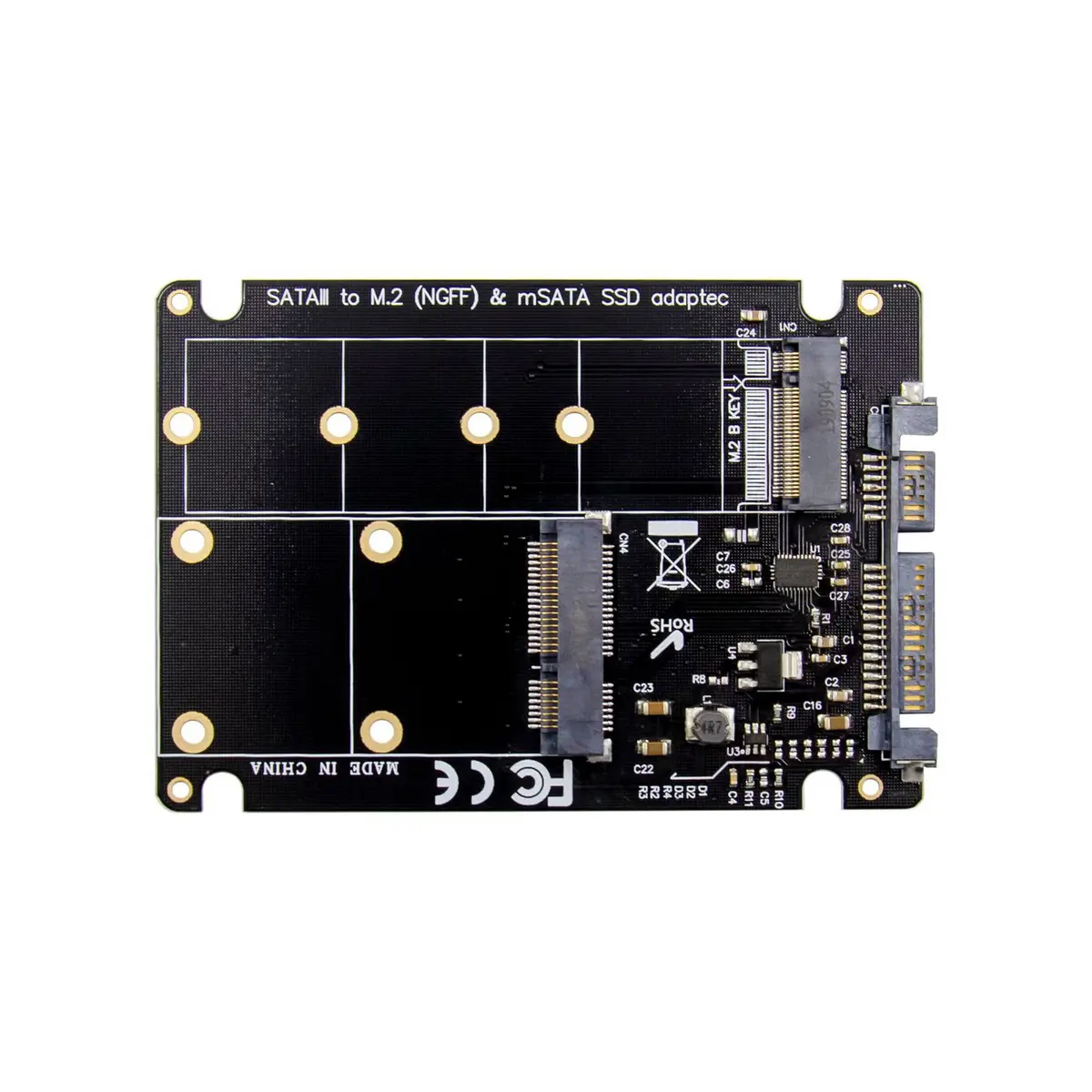

MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 2

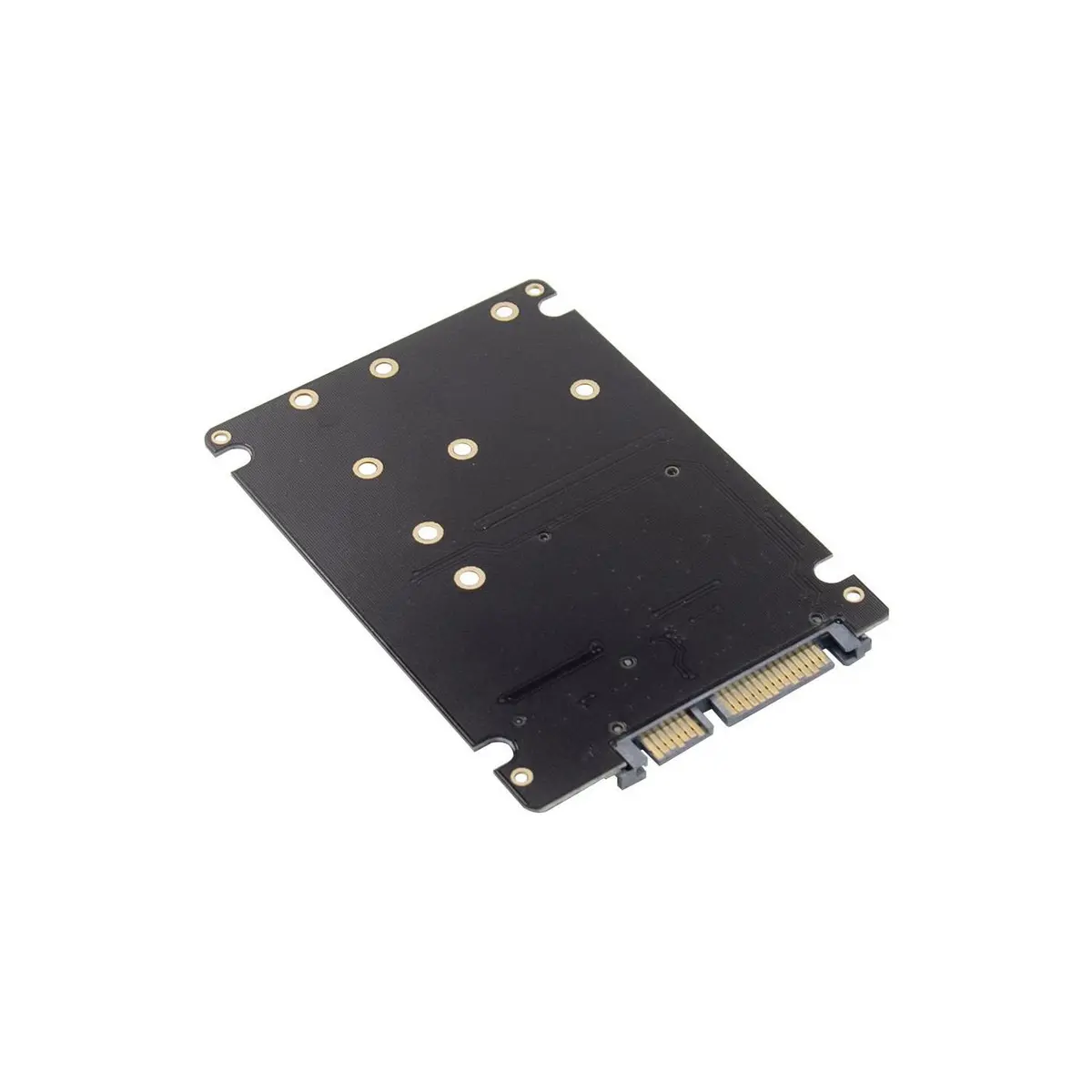

MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 3

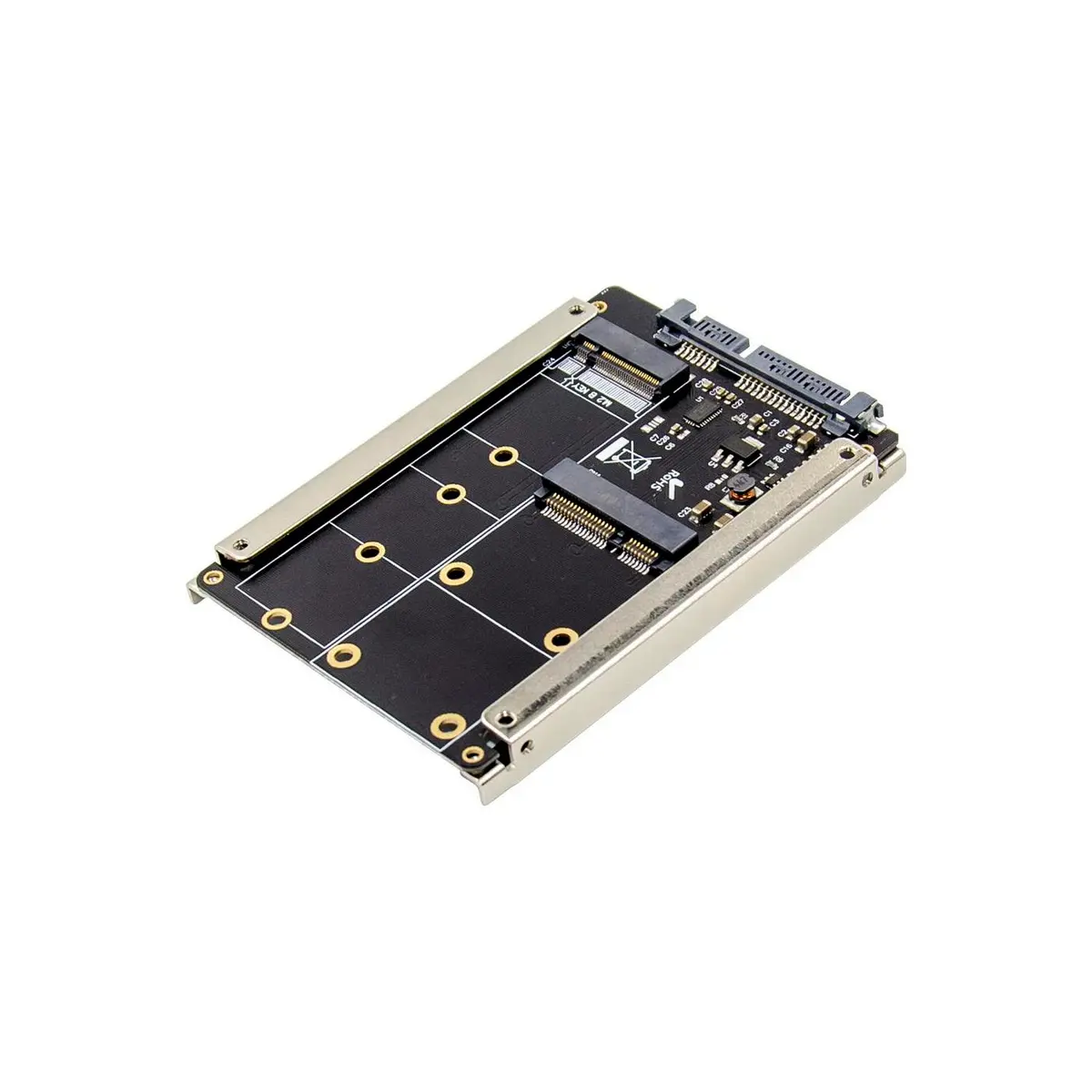

MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 4
MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 5
MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 1
MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 2
MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 3
MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 4
MicroConnect MC-SSDSATACONV M.2 to SATA Adapter Card Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

MicroConnect MC-SSDSATACONV Internal M.2 to SATA Interface Adapter Card with ASM1456 Main Chip

{{email}}
You keep track of price changes

MicroConnect MC-SSDSATACONV Internal M.2 to SATA Interface Adapter Card with ASM1456 Main Chip

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

MicroConnect MC-SSDSATACONV internal interface adapter card designed to connect M.2 or mSATA SSDs to a 2.5-inch SATA host interface. Equipped with the reliable ASM1456 main chip, this black adapter is ideal for upgrading storage, expanding system capabilities, and enabling seamless compatibility between different solid-state drive formats and standard SATA connections in desktop computers or enclosures.
Available at price 19.49 €: 7 pcs.
Total available for order: 14 pcs.
Warranty: 2 Years
SKU: 2148912
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.10 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
20.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The MicroConnect MC-SSDSATACONV internal interface adapter card is designed to connect M.2 or mSATA solid-state drives to a standard 2.5-inch SATA host interface. Equipped with the reliable ASM1456 main chip, this black adapter enables seamless compatibility between different solid-state drive formats and standard SATA connections in desktop computers, laptops, and enclosures.

Advantages

This adapter card provides a practical solution for hardware upgrades by allowing the use of M.2 or mSATA storage drives in systems equipped only with standard 2.5-inch SATA bays. Operating system independence and driver transparency ensure easy installation without the need for additional software setup. Furthermore, support for transmission speeds up to 6Gbps helps maintain efficient data transfer performance across compatible hardware configurations.

Suitable for

  • Upgrading storage in desktop computers and laptops using M.2 or mSATA SSDs
  • Connecting M.2 B-key and B+M-key SATA protocol drives to a 2.5-inch SATA interface
  • Integrating solid-state drives into standard 2.5-inch drive enclosures

This product may not be suitable for M.2 solid-state drives that rely on the PCIe or NVMe protocol, as the adapter specifically supports the SATA protocol only. It is also not intended for external direct USB connection without a secondary enclosure or docking station.

Key specifications

  • Host interface: SATA
  • Output interface: M.2 and mSATA
  • Main chip: ASM1456
  • Compatible M.2 sizes: 2230, 2242, 2260, 2280
  • Compatible mSATA sizes: 26.8x30 mm, 50.95x30 mm
  • Supported M.2 keys: B key and B+M key with SATA protocol
  • Transmission speed: Up to 6Gbps
  • Form factor: 2.5-inch drive bay compatible
  • Color: Black

To use the adapter, secure the compatible M.2 or mSATA solid-state drive into the respective slot on the card according to the supported dimensions and key type. Once the drive is firmly seated and secured, insert the entire assembly into a standard 2.5-inch SATA drive bay inside a desktop computer, laptop, or compatible enclosure. Connect the standard SATA power and data cables to the adapter. Because the hardware is transparent to the operating system, the system will automatically recognize the connected drive without requiring manual driver installations.

What to consider before purchase

  • Verify that your solid-state drive uses the SATA protocol rather than PCIe or NVMe
  • Check the physical dimensions of your M.2 or mSATA drive against the supported size specifications
  • Ensure your host system features an available 2.5-inch SATA connection bay
Usage recommendations: Handle the adapter card by its edges to prevent electrostatic discharge damage to sensitive electronic components. Ensure the drive is fully inserted and securely fastened into the slot before mounting the 2.5-inch assembly into your computer system or enclosure.

Specifications

Internal: The product is built in.
Yes
Host interface: Interface that enables a host controller to communicate with a driver.
SATA
Output interface: The socket (port) where the output connectors are connected.
M.2
All features

Weight & dimensions

Package weight: Weight of the packaged product.
100 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.09 kg

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 85

System requirements

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Y
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.
Y
Windows operating systems supported: Windows vesions wich can be used with the device.
Y

Other features

Manual:
Yes

Logistics data

Quantity per pack:
1 pc(s)

Packaging data

Package height: The distance from the top to the bottom of the packaging.
38 mm
Package depth: The distance from the front to the back of the packaging.
98 mm
Package width: The distance from one side of the packaging to the other.
116 mm

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

Design

Product colour: The colour e.g. red, blue, green, black, white.
Black
Internal: The product is built in.
Yes

Ports & interfaces

Number of M.2 (M) slots:
1
Internal mSATA ports quantity:
1
SATA revision:
3.0
Host interface: Interface that enables a host controller to communicate with a driver.
SATA
Output interface: The socket (port) where the output connectors are connected.
M.2

Performance

Certification:
CE
