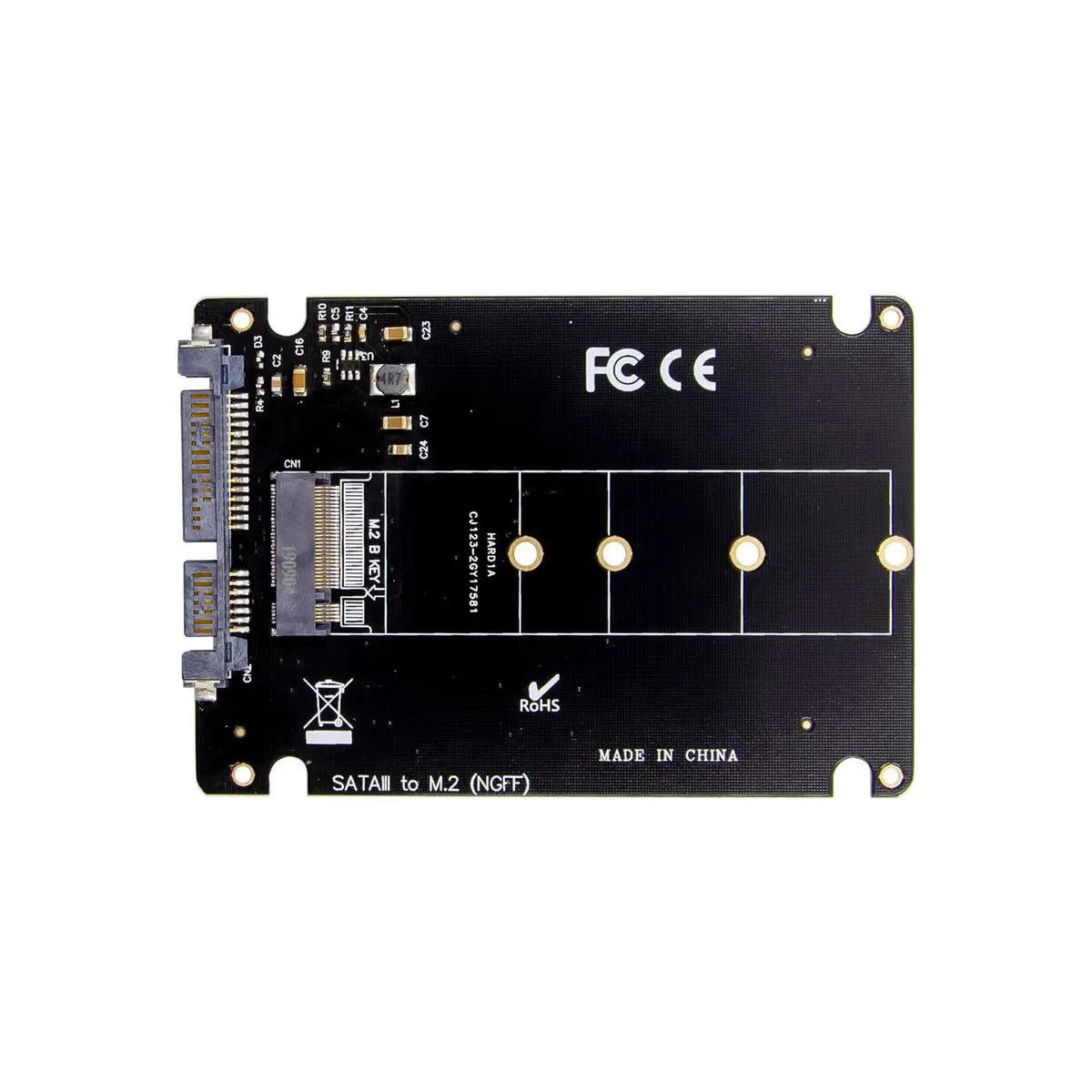

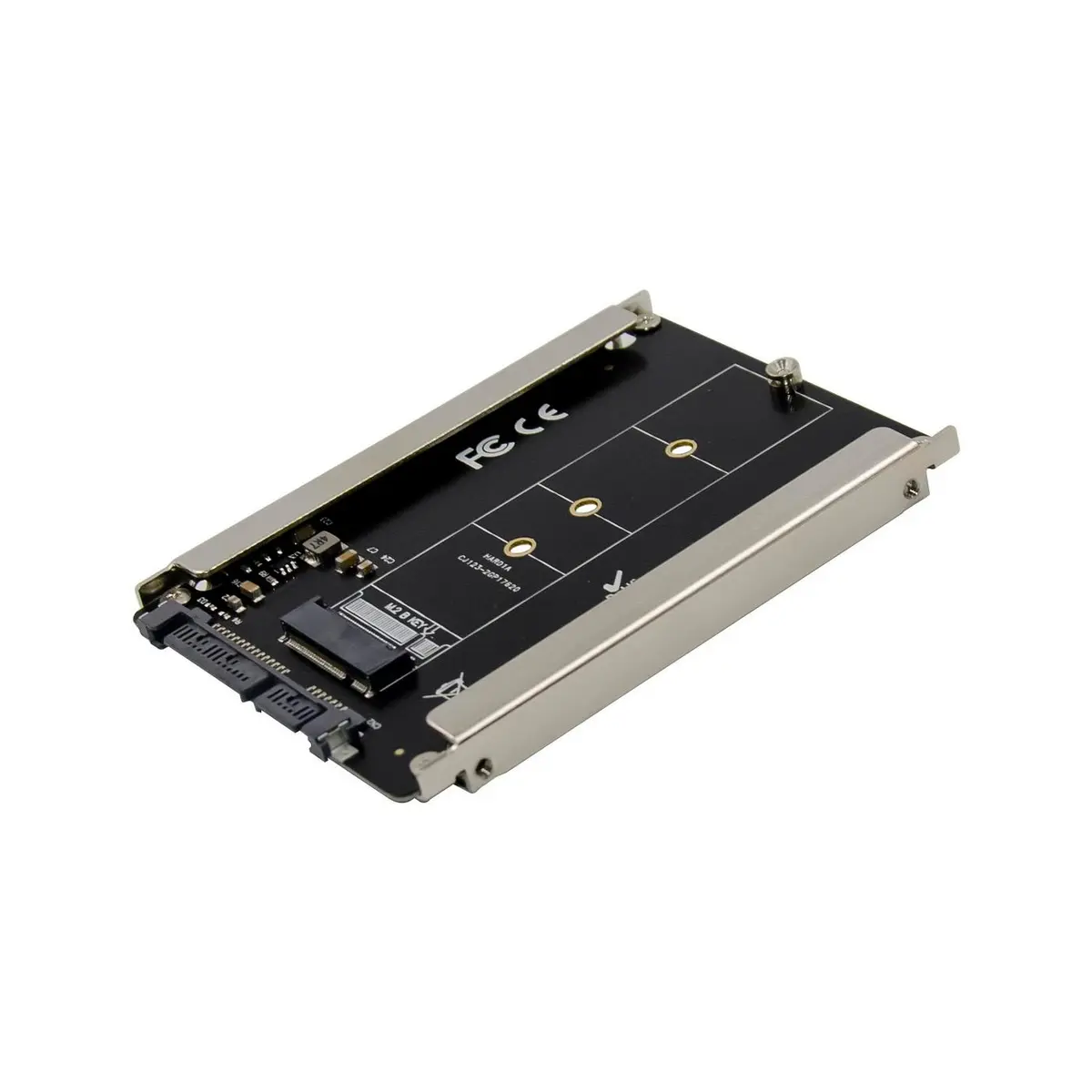

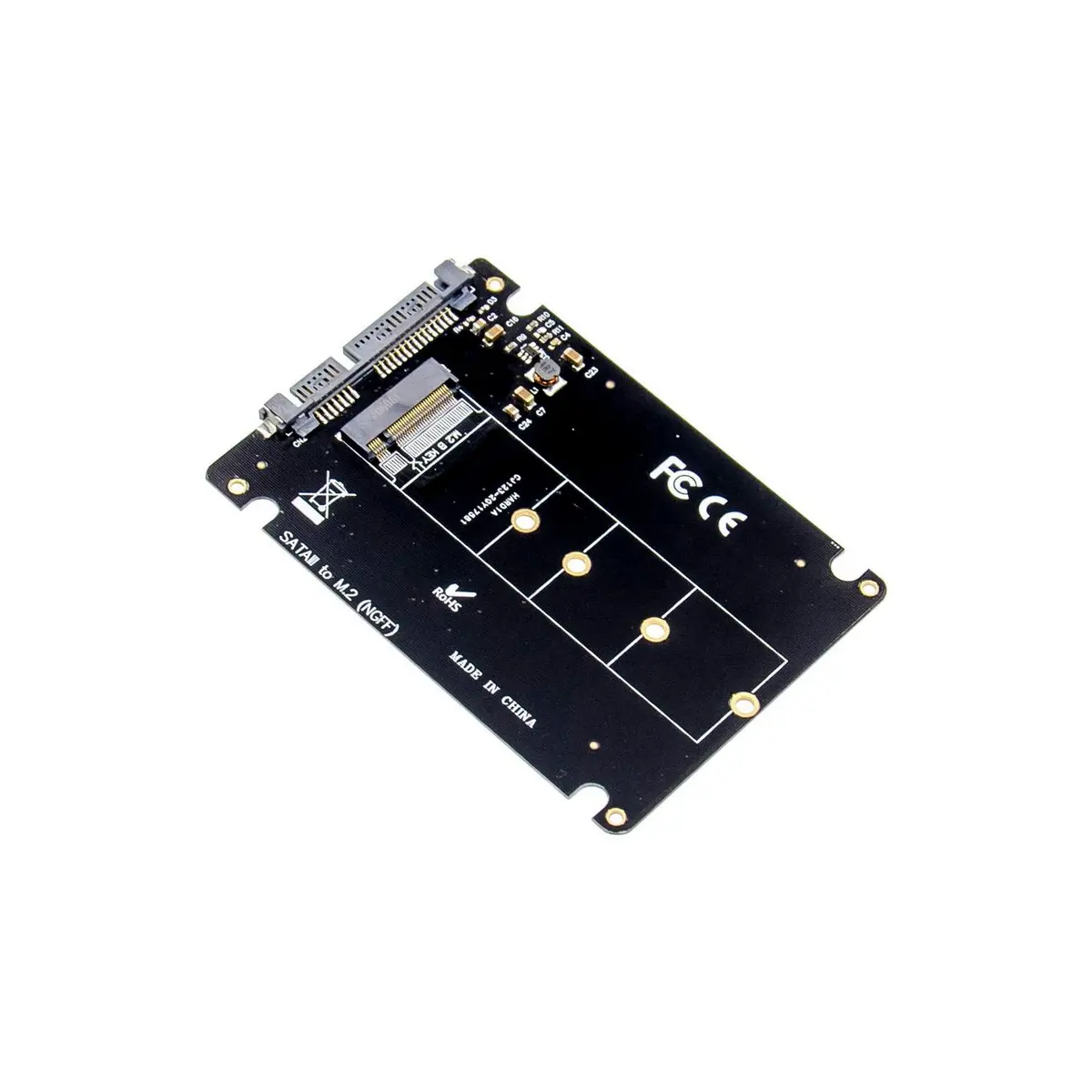

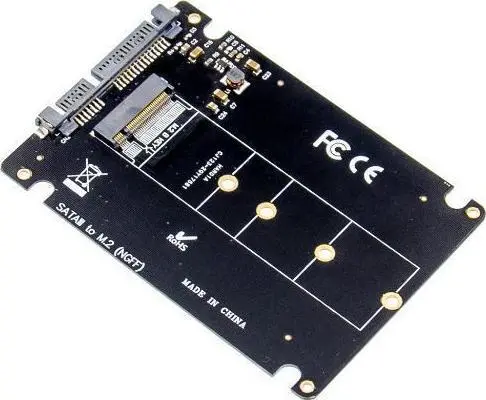

MicroConnect MC-SSDSATACONV1 Internal M.2 to SATA 2.5-inch SSD Adapter Supporting Key B and B+M Form Factors 2230 to 2280

The MicroConnect internal interface adapter is designed to connect M.2 B Key and B+M solid-state drives into standard 2.5-inch SATA drive bays. It serves as a practical hardware solution for integrating modern M.2 storage into traditional desktop computers, laptops, and external enclosures that rely on SATA connections. Built to meet established industry standards, this adapter facilitates smooth data transmission and allows users to utilize existing M.2 hardware in standard 2.5-inch form factor slots.

Advantages

This internal adapter enables the repurposing and utilization of M.2 B Key and B+M solid-state drives within standard 2.5-inch SATA drive bays, offering a cost-effective way to manage computer hardware. It supports high-speed data transfer rates up to 6 Gbps in accordance with SATA Revision 3.0 specifications, ensuring reliable performance during file transfers and application loading. Additionally, it maintains full backward compatibility with older SATA II and SATA I interfaces, making it adaptable to a wide range of existing computer systems. The unit supports multiple standard M.2 SSD form factor lengths, including 2230, 2242, 2260, and 2280, providing broad compatibility with various drive sizes.

Suitable for

• Upgrading desktop computers and laptops with M.2 SATA SSDs
• Repurposing spare M.2 B Key or B+M solid-state drives into standard 2.5-inch form factors
• Installing storage into 2.5-inch external drive enclosures
• Expanding internal storage capabilities in legacy systems supporting SATA interfaces

This product is not suitable for M.2 solid-state drives that utilize the PCIe NVMe protocol, as the adapter exclusively supports SATA-based M.2 keys. It cannot be used to connect drives directly to PCIe slots or motherboard M.2 slots without a SATA host connection.

Key specifications

• Host interface: SATA 6Gb/s
• Output interface: M.2
• Supported M.2 SSD sizes: 2230, 2242, 2260, 2280
• Supported key types: B Key and B+M Key with SATA protocol
• Data transfer rate: up to 6 Gbps
• Compliance: SATA Revision 3.0, backward compatible with SATA II and SATA I
• Color: Black
• Product weight: 90 g

How to use

To use the adapter, insert the compatible M.2 B Key or B+M SSD into the M.2 slot on the adapter card at a slight angle and secure it according to the physical mechanism. Once the M.2 drive is firmly seated within the adapter, place the entire assembly into a standard 2.5-inch SATA drive bay inside a computer chassis or external enclosure. Connect the standard SATA data and power cables from the host system to the corresponding ports on the adapter. Ensure all connections are secure before powering on the system and formatting or initializing the drive through the operating system.

What to consider before purchase

• Verify that your M.2 solid-state drive uses the SATA protocol rather than the PCIe NVMe protocol
• Check the physical dimensions of your computer case or drive enclosure to ensure standard 2.5-inch form factor compatibility
• Confirm that your motherboard or host system features an available SATA port and power connection

Usage recommendations: Handle the adapter and sensitive electronic components with care using proper anti-static precautions during installation. Ensure the system is completely powered off and unplugged before inserting or removing any hardware components.
