MSI MAG X870E TOMAHAWK MAX WIFI motherboard

Name: Motherboard MSI MAG X870E TOMAHAWK 7E59-018R
Brand: MSI
SKU: 12093036
Price: 367.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Motherboard MSI MAG X870E TOMAHAWK MAX WIFI — AMD X870E, Socket AM5, ATX, DDR5, Wi‑Fi 7, 5GbE

MSI MAG X870E TOMAHAWK MAX WIFI motherboard Photo 1

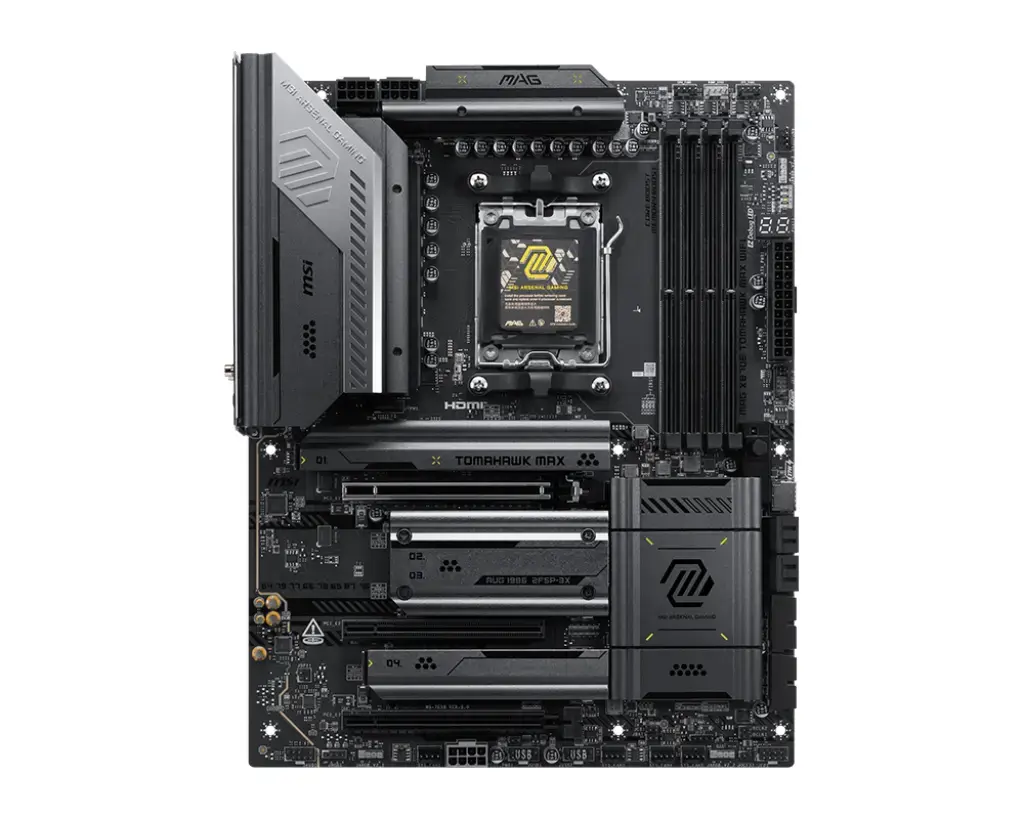

MSI MAG X870E TOMAHAWK MAX WIFI motherboard Photo 2

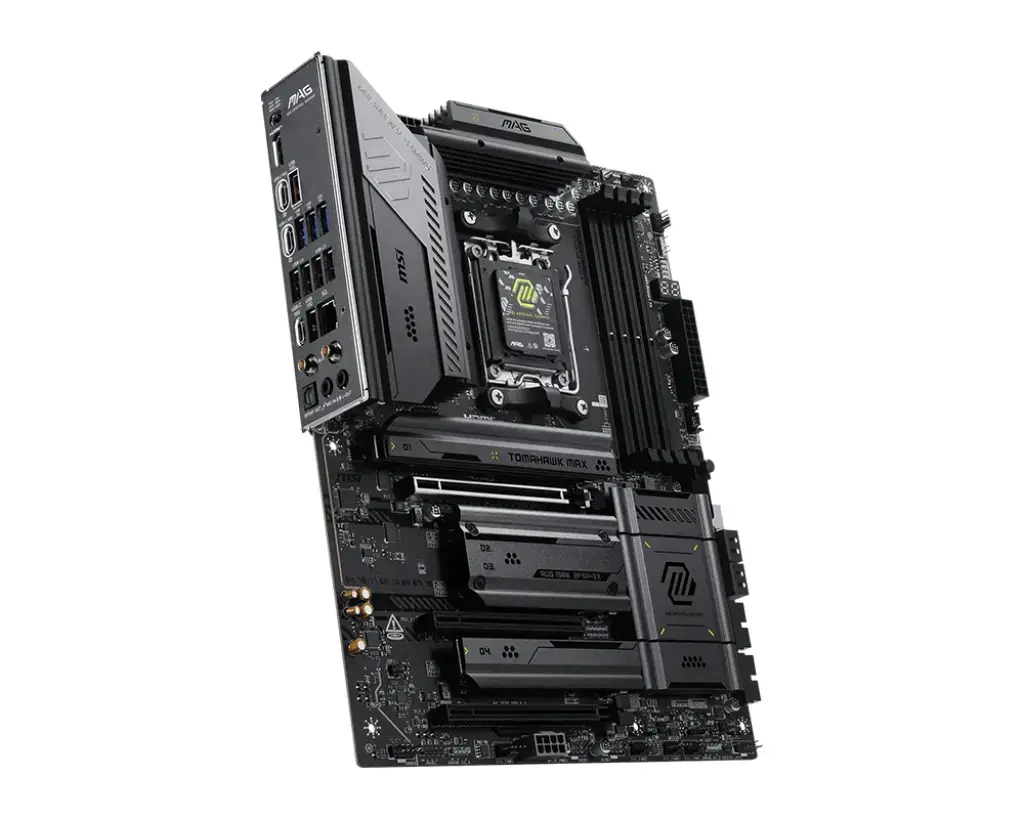

MSI MAG X870E TOMAHAWK MAX WIFI motherboard Photo 3

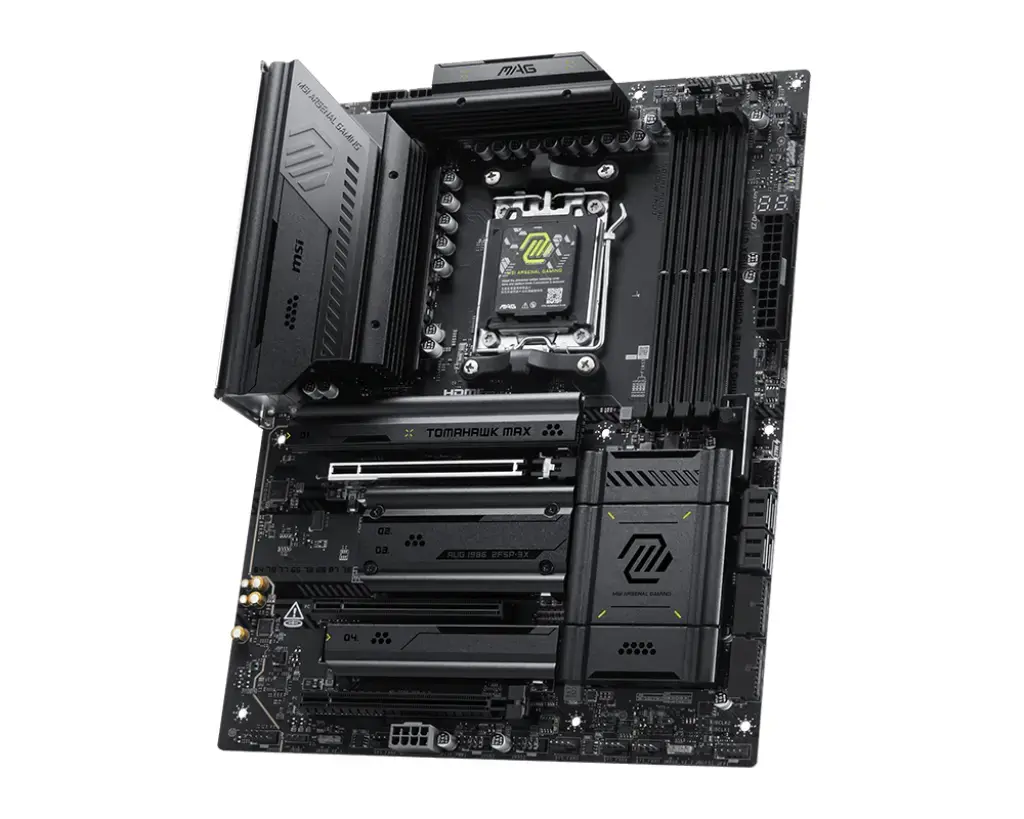

MSI MAG X870E TOMAHAWK MAX WIFI motherboard Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Price for companies: 303.71€ Price is valid only for legal clients

Short description

MSI MAG X870E TOMAHAWK MAX WIFI is an ATX motherboard for Socket AM5 supporting AMD Ryzen 7000/8000/9000 series processors on the AMD X870E chipset. It accepts DDR5 memory up to 256 GB across DIMM slots, offers M.2 and SATA III storage with RAID 0/1/10, integrated 5 Gigabit Ethernet (Realtek RTL8126) and Wi‑Fi 7 (802.11be). Designed for high-performance desktop PCs and gaming builds requiring modern connectivity and fast storage.

Available at price 367.49 €: 10 pcs.

Total available for order: 22 pcs.

Warranty: 2 Years

SKU: 12093036

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 122.5 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 10.21 euros per month

Price for companies: 303.71€ Price is valid only for legal clients

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

MSI MAG X870E TOMAHAWK MAX WIFI is an ATX motherboard for Socket AM5 built on the AMD X870E chipset. It supports AMD Ryzen 7000, 8000 and 9000 series desktop processors and DDR5 memory across four DIMM slots for up to 256 GB. The board integrates high-speed connectivity including PCIe 5.0 support for graphics and NVMe, USB4 (40 Gbps) ports, M.2 and SATA III storage with RAID 0/1/10 capability, 5 Gigabit Ethernet and a Wi‑Fi 7 (802.11be) wireless solution. Thermal design elements such as enlarged heatsinks, MOSFET thermal pads and reinforced M.2 shields are included to maintain performance under sustained loads, while MSI’s AI-driven software features assist with network, cooling and workload tuning.

Advantages

The motherboard provides a stable power delivery architecture and extended thermal solutions intended for sustained high-performance use. Native support for DDR5 and PCIe 5.0 enables faster memory and storage configurations, while integrated USB4 and 5GbE plus Wi‑Fi 7 deliver modern, high-bandwidth connectivity. Built-in EZ DIY features simplify assembly and maintenance, and MSI’s AI tools offer automated optimization for network latency, cooling behavior and AI acceleration.

Suitable for

High-performance gaming PCs running AMD Ryzen 7000/8000/9000 processors
Content creation and multimedia workstations requiring fast storage and high I/O bandwidth
Home lab or small office systems needing reliable wired and wireless networking (5GbE and Wi‑Fi 7)
Enthusiast builds that use PCIe 5.0 graphics cards and Gen5 NVMe SSDs
Users who prefer straightforward assembly and thermal management features for sustained loads

Key specifications

Form factor: ATX
Chipset: AMD X870E
CPU socket: AM5, compatible with AMD Ryzen 7000 / 8000 / 9000 series desktop processors
Memory: 4 x DIMM DDR5, dual-channel, up to 256 GB
PCIe: PCIe 5.0 support for primary GPU slot and PCIe Gen5 x4 M.2 lanes
Storage: Multiple M.2 slots with reinforced M.2 Shield and SATA III ports; RAID 0/1/10 support
USB: USB4 (40 Gbps) and a range of high-speed USB ports
Networking: Integrated 5 Gigabit Ethernet and Wi‑Fi 7 (802.11be) with Bluetooth 5.4
Audio: 7.1-channel on-board audio (Audio Boost 5)
Power & cooling: Robust VRM design with dual 8-pin CPU power connectors, extended heatsinks, MOSFET thermal pads and additional choke pads
BIOS: UEFI BIOS (AMI), modern ACPI support

How to use

Install the motherboard in a compatible ATX case, fit an AM5-compatible AMD Ryzen processor and secure dual 8-pin CPU power connectors. Populate DDR5 modules across the recommended DIMM slots for dual-channel operation and install storage devices in the M.2 and SATA connectors as required. Connect front-panel and peripheral headers, attach the Wi‑Fi antenna and network cables, then update the UEFI BIOS to the latest version before installing an operating system. Use the included EZ DIY features when mounting M.2 drives or releasing PCIe cards to simplify assembly.

Usage recommendations

Ensure adequate case airflow and verify that the CPU cooler and chassis fans are oriented to complement the motherboard’s extended heatsink layout. Keep firmware updated and use MSI Center utilities for AI LAN Manager, Frozr AI Cooling and AI Boost to fine-tune network, thermal and AI performance. For optimal storage and graphics performance, install Gen5 NVMe SSDs and a PCIe 5.0-capable GPU in the primary slot, and configure RAID in BIOS only after backing up important data.

Specifications

Motherboard form factor:: ATX
Motherboard chipset:: AMD X870E
Component for:: PC
Processor socket:: Socket AM5
Number of memory slots:: 4
Maximum internal memory:: 256 GB
PCI Express x16 (Gen 3.x) slots:: 1
Supported memory types:: DDR5-SDRAM

All features

Features

Motherboard form factor:: ATX
Motherboard chipset:: AMD X870E
Component for:: PC
Audio output channels:: 7.1
PC health monitoring:: Voltage, Temperature, FAN, CPU
Motherboard chipset family:: AMD

Product colour:: Black

Processor

Processor manufacturer:: AMD
Processor socket:: Socket AM5

Memory

Number of memory slots:: 4
Maximum internal memory:: 256 GB
Supported memory types:: DDR5-SDRAM
Supported memory clock speeds:: 4800, 5600, 6400
Memory channels:: Dual-channel
Unbuffered memory:: Yes
Memory slots type:: DIMM
Supported memory clock speed (max):: 8400 MHz
ECC сompatibility:: non-ECC

Expansion slots

PCI Express x16 (Gen 3.x) slots:: 1
Number of M.2 (M) slots:: 4
PCI Express x16 (Gen 4.x) slots:: 1
PCI Express x16 (Gen 5.x) slots:: 1
1st M.2 largest key size:: 22110
2nd M.2 largest key size:: 2280
3rd M.2 largest key size:: 2280
4th M.2 largest key size:: 2280
1st M.2 highest PCI Express generation:: 5.0
2nd M.2 highest PCI Express generation:: 5.0
3rd M.2 highest PCI Express generation:: 4.0
4th M.2 highest PCI Express generation:: 4.0

Graphics

On-board graphics card:: No

Network

Bluetooth version:: 5.4
Ethernet LAN:: Yes
Bluetooth:: Yes
Wi-Fi:: Yes
Ethernet interface type:: 5 Gigabit Ethernet
Top Wi-Fi standard:: Wi-Fi 7 (802.11be)

Internal I/O

Number of SATA connectors:: 0
USB 2.0 connectors:: 4
CPU fan connector:: Yes
ATX Power connector (24-pin):: Yes
Front panel audio connector:: Yes
EPS power connector (8-pin):: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:: 4
Number of SATA III connectors:: 4
Number of SATA II connectors:: 0
USB 3.2 Gen 2 (3.1 Gen 2) connectors:: 1
Total number of SATA connectors:: 4
Front panel connector:: Yes

Rear panel I/O ports

USB 2.0 ports quantity:: 4
Ethernet LAN (RJ-45) ports:: 1
Microphone in:: Yes
S/PDIF out port:: Yes
VGA (D-Sub) ports quantity:: 0
DVI-D ports quantity:: 0
HDMI ports quantity:: 1
HDMI version:: 2.1
DisplayPorts quantity:: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:: 1
USB4 Gen 2x2 ports quantity:: 2

Storage controllers

RAID levels:: 10, 1
Supported storage drive types:: HDD & SSD
RAID support:: Yes
Number of storage drives supported:: 8
Supported storage drive interfaces:: SATA III, M.2

BIOS

BIOS memory size:: 512 Mbit
BIOS type:: UEFI AMI

Weight & dimensions

Width:: 243.84 mm
Depth:: 304.8 mm

Other features

Number of HDDs supported:: 4
Supported processor sockets:: Socket AM5
Wi-Fi standards:: Wi-Fi 7 (802.11be), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
DisplayPort version:: 1.4
