header-product Motherboard MSI MPG B760I EDGE WIFI Intel B760 LGA 1700 mini ATX
235.49 €

Motherboard MSI MPG B760I EDGE WIFI Intel B760 LGA 1700 mini ATX

Motherboard MSI MPG B760I EDGE WIFI, code Photo 1

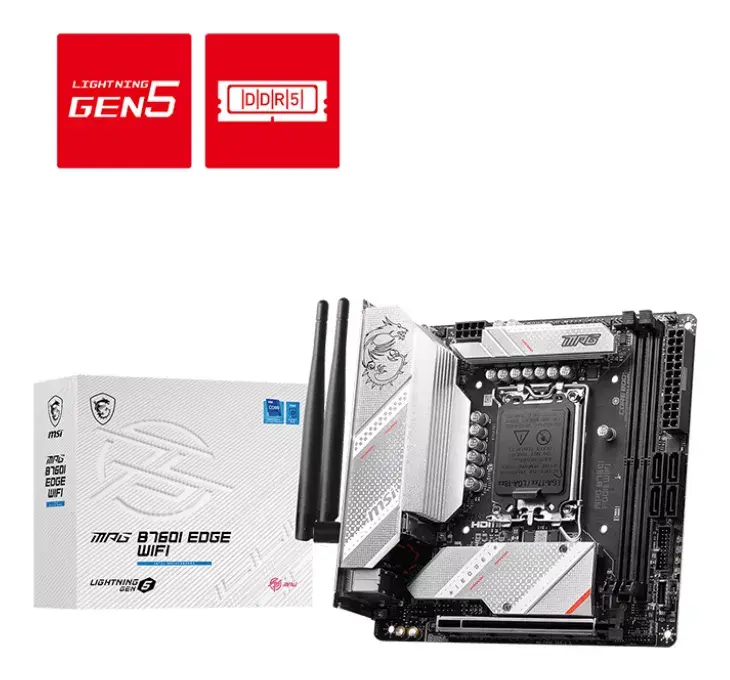

Motherboard MSI MPG B760I EDGE WIFI, code Photo 2

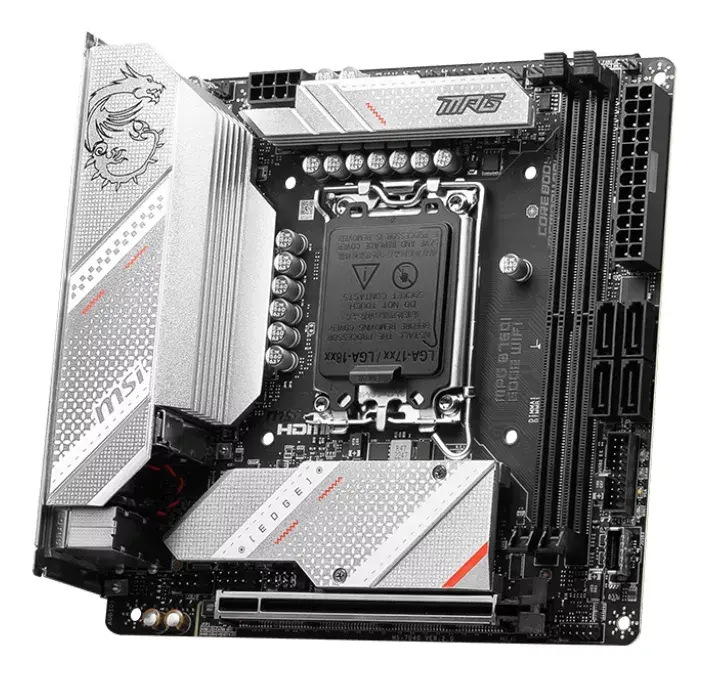

Motherboard MSI MPG B760I EDGE WIFI, code Photo 3

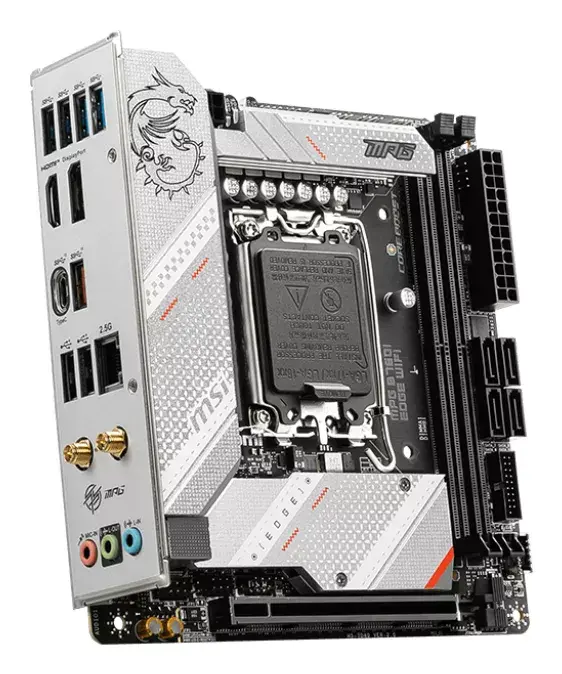

Motherboard MSI MPG B760I EDGE WIFI, code Photo 4
Motherboard MSI MPG B760I EDGE WIFI, code Photo 5
Motherboard MSI MPG B760I EDGE WIFI, code Photo 1
Motherboard MSI MPG B760I EDGE WIFI, code Photo 2
Motherboard MSI MPG B760I EDGE WIFI, code Photo 3
Motherboard MSI MPG B760I EDGE WIFI, code Photo 4
Motherboard MSI MPG B760I EDGE WIFI, code Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard MSI MPG B760I EDGE WIFI Intel B760 LGA 1700 mini ATX

{{email}}
You keep track of price changes

Motherboard MSI MPG B760I EDGE WIFI Intel B760 LGA 1700 mini ATX

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The MSI MPG B760I EDGE WIFI motherboard features an Intel B760 chipset and LGA 1700 socket, supporting Intel® Celeron® and Intel® Pentium® Gold processors. It supports DDR5-SDRAM with a maximum internal memory of 96 GB across DIMM slots. Storage options include M.2 and SATA III with RAID levels 0, 1, 5, and 10. Connectivity includes 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax), ensuring high-speed internet access. This mini ATX form factor motherboard is ideal for compact PC builds.
Available at price 235.49 €: 1 pcs.
Total available for order: 36 pcs.
Warranty: 2 Years
SKU: 10456029
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
21.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
24.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
24.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 78.5 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 6.54 euros per month
Price for companies: 194.62€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The MSI MPG B760I EDGE WIFI is a Mini ATX motherboard in a silver-white finish designed for compact gaming and performance-oriented PCs. Built on the Intel B760 chipset with an LGA 1700 socket, it supports DDR5 memory up to 96 GB and offers modern connectivity including 2.5 Gb Ethernet and Wi‑Fi 6E. The board includes reinforced soldered connections, an 8-layer server-grade PCB with 2 oz thickened copper, M.2 Shield Frozr for SSD protection, and PCIe 5.0-ready features to accommodate high-performance components in a small form factor.

Advantages

This motherboard combines a compact Mini ATX form factor with robust power delivery and cooling solutions: an extended heatsink for improved dissipation, high-performance 7W/mK MOSFET thermal pads, and pump fan support for watercooling systems. The 8-layer PCB and heavy soldered connections increase durability and stability, while the SMT PCIe 5.0 slot and Lightning Gen 5 PCIe bandwidth prepare the platform for next-generation graphics cards and fast storage. M.2 Shield Frozr helps prevent SSD throttling for sustained performance.

Suitable for

  • Compact gaming PC builds using LGA 1700 processors
  • Home or office systems requiring Wi‑Fi 6E and 2.5 Gb Ethernet
  • Small form-factor workstations that need DDR5 memory and fast NVMe storage
  • Enthusiast builds that plan to use PCIe 5.0 graphics or high-speed add-in cards

Key specifications

  • Chipset: Intel B760
  • Socket: LGA 1700
  • Form factor: Mini ATX
  • Memory: DDR5, 2 slots, up to 96 GB
  • PCIe: Lightning Gen 5 (x16) support, SMT PCIe 5.0 slot; additional PCIe 3.0 x1 slots
  • Storage: M.2 (with M.2 Shield Frozr), SATA III; RAID 0/1/5/10 support
  • Networking: 2.5 Gb Ethernet, Wi‑Fi 6E (802.11ax)
  • PCB: 8-layer server-grade with 2 oz thickened copper

How to use

Install the motherboard into a compatible Mini ATX case and mount an LGA 1700 CPU following processor manufacturer instructions. Populate the DDR5 DIMM slots (observe recommended channel configuration) and connect M.2 or SATA storage devices; install a PCIe graphics card into the SMT PCIe slot if required. Connect front-panel headers, power supply cables, cooling fans or a waterpump (pump fan support available), and attach external networking via the integrated Wi‑Fi antenna or Ethernet port. Update the BIOS and chipset drivers after the first boot for optimal compatibility and performance.

Usage recommendations

For stable high-load operation, use adequate case airflow or a compatible AIO/custom watercooling solution and ensure thermal pads and heatsinks have proper contact. When installing high-weight graphics cards, rely on the reinforced, heavy-soldered connections and secure the card to the case to reduce stress on the PCIe slot. Keep firmware and drivers up to date to take advantage of PCIe 5.0 and networking features.

Specifications

Motherboard form factor:
Mini ATX
Motherboard chipset:
Intel B760
Component for:
PC
Processor socket:
LGA 1700
Number of memory slots:
2
Maximum internal memory:
96 GB
PCI Express x1 (Gen 3.x) slots:
2
Supported memory types:
DDR5-SDRAM
All features

Features

Motherboard form factor:
Mini ATX
Motherboard chipset:
Intel B760
Component for:
PC
Audio output channels:
7.1
Windows operating systems supported:
Windows 11, Windows 10
Motherboard chipset family:
Intel
Power source type:
ATX
Product colour:
Silver, Black

Processor

Processor manufacturer:
Intel
Maximum number of SMP processors:
1
Compatible processor series:
Intel Pentium Gold, Intel Celeron
Processor socket:
LGA 1700

Memory

Number of memory slots:
2
Maximum internal memory:
96 GB
Supported memory types:
DDR5-SDRAM
Supported memory clock speeds:
5800, 4800, 5000, 5200, 5400, 5600, 6000, 6200, 6400, 6600, 6800, 7000
Memory channels:
Dual-channel
Memory slots type:
DIMM
Supported memory clock speed (max):
7200 MHz
ECC сompatibility:
non-ECC

Expansion slots

PCI Express x1 (Gen 3.x) slots:
2
Number of M.2 (M) slots:
2

Graphics

On-board graphics card:
No

Network

Bluetooth version:
5.3
Ethernet LAN:
Yes
Bluetooth:
Yes
Wi-Fi:
Yes
Ethernet interface type:
2.5 Gigabit Ethernet
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)

Internal I/O

Number of SATA connectors:
0
USB 2.0 connectors:
2
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Front panel audio connector:
Yes
TPM connector:
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Number of SATA III connectors:
4
Number of SATA II connectors:
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
1
Front panel connector:
Yes
RGB LED pin header:
Yes

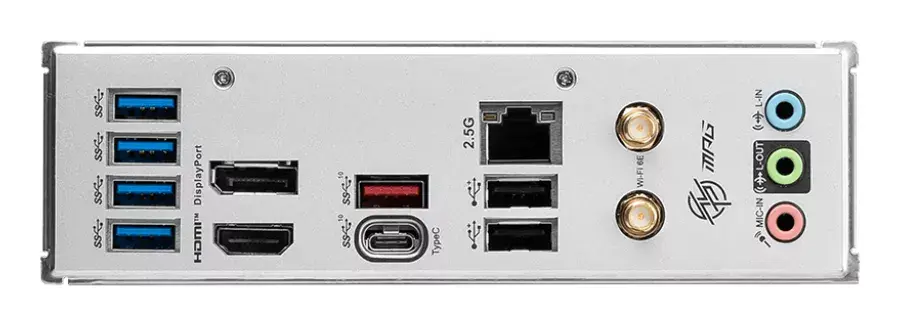

Rear panel I/O ports

USB 2.0 ports quantity:
2
Ethernet LAN (RJ-45) ports:
1
VGA (D-Sub) ports quantity:
0
DVI-D ports quantity:
0
HDMI ports quantity:
2
HDMI version:
2.1
DisplayPorts quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
10, 1, 5
RAID support:
Yes
Supported storage drive interfaces:
M.2, SATA III

BIOS

BIOS memory size:
256 Mbit
BIOS type:
UEFI AMI

Weight & dimensions

Width:
170 mm
Depth:
170 mm

Other features

Supported processor sockets:
LGA 1700
Wi-Fi standards:
802.11a, Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g
mSATA ports quantity:
0
DisplayPort version:
1.4
Audio chip:
Realtek ALC897
