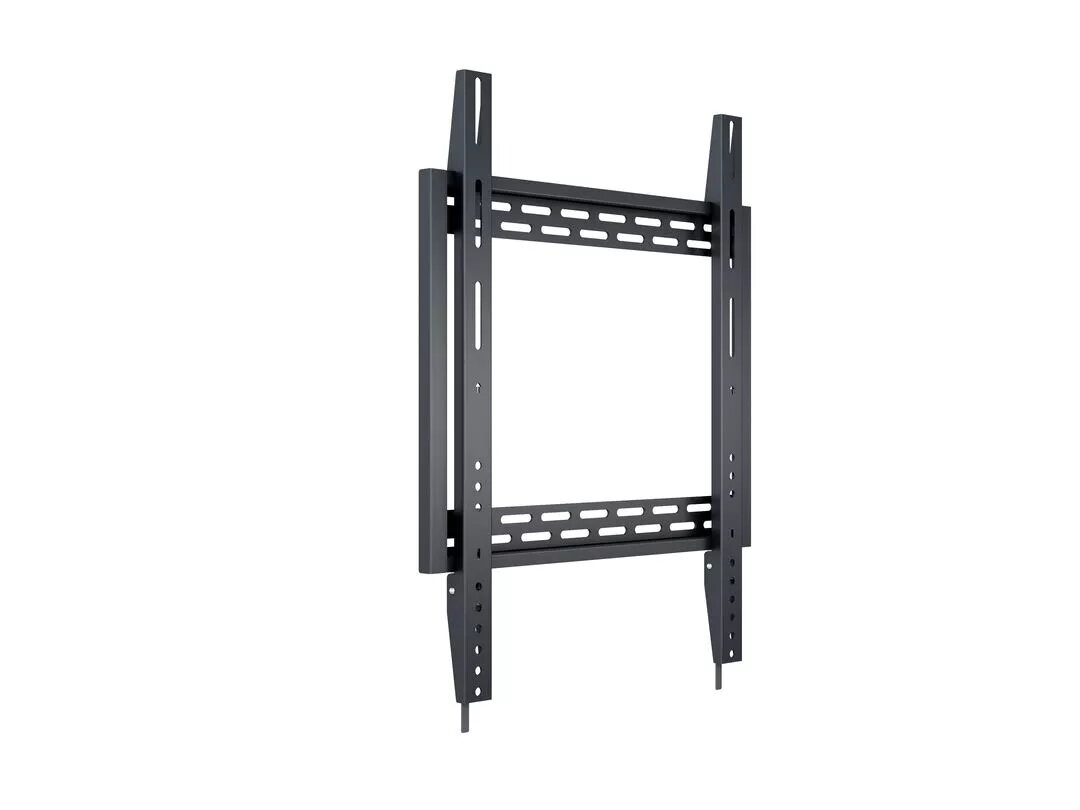

Wallmount MULTIBRACKETS M Universal HD Portrait wall bracket for 60"–100" screens, VESA 200x200–400x600, load 100 kg, black

The Multibrackets M Universal HD Portrait wall bracket is designed for secure, low-profile mounting of single commercial displays sized 60"–100" in portrait orientation. Constructed from cold-rolled steel with a durable black finish, the bracket supports displays up to 100 kg and accepts VESA patterns from 200x200 mm up to 400x600 mm. Its slim 4.5 cm profile from the wall and installer-oriented adjustment features allow final leveling and a tidy appearance for public, retail, or corporate installations.

Advantages

This wall bracket offers a high load capacity of 100 kg while remaining compact with a 4.5 cm mounting profile. The universal VESA compatibility covers a wide range of large-screen VESA patterns, simplifying product selection for different display models. Built from 3 mm cold-rolled steel and finished in black, the mount provides robust mechanical strength and a discreet visual presence suitable for commercial environments. Installer-focused details such as leveling adjustment screws and secure latching arms reduce installation time and improve safety during mounting and maintenance.

Suitable for

• Portrait-oriented digital signage displays in retail, transportation hubs, museums, and exhibition spaces
• Large interactive or touch screens that require a sturdy, fixed wall mount
• Corporate lobby displays and wayfinding panels where a slim profile and professional finish are needed
• Single-screen installations up to 100" and up to 100 kg

When it may not be suitable

This fixed portrait mount is not intended for frequent repositioning or swivel/tilt adjustments once installed; installations that require regular service access or variable viewing angles may be better served by tilt or articulating mounts. It is also not suitable for multi-screen video wall matrices unless each display location and supporting structure are assessed individually and separate mounts are used as appropriate.

Key specifications

• Supported screen size: 60"–100"
• VESA compatibility: 200 x 200 mm up to 400 x 600 mm
• Maximum load capacity: 100 kg
• Mounting profile (distance from wall): approx. 4.5 cm
• Material: cold-rolled steel (3 mm)
• Colour: black
• Number of displays supported: 1
• Product weight: approx. 4 kg

How to use

Locate suitable wall studs or a structural mounting surface capable of supporting the combined weight of the display and bracket. Position the bracket at the desired height, mark and drill mounting holes, and secure the bracket to the wall using appropriate fixings for the wall type. Attach the display to the bracket using the matching VESA holes and included hardware, then use the built-in adjustment screws to level the screen. Ensure all fasteners are tightened and the latching arms engage securely before releasing the display. Follow the display manufacturer’s mounting recommendations and safety instructions throughout the process.

What to consider before purchase

• Confirm the display’s VESA pattern falls within 200 x 200 to 400 x 600 mm and that mounting holes align with the bracket
• Verify the display weight does not exceed the 100 kg capacity
• Check wall construction and load-bearing capability; additional reinforcement may be required for non-structural walls
• Determine whether a fixed portrait mount meets your need for viewing angle and service access, or if an adjustable mount is preferable

Usage recommendations

Use appropriate structural fixings and, where possible, mount to studs or certified backing. Periodically inspect fasteners and the bracket for signs of corrosion or loosening, especially in high-traffic or humid environments. For heavy or unusually shaped displays, consult a qualified installer to confirm compatibility and safe mounting practice.
