Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200

Name: Multibrackets Menu Board Mount Pro 7350105215063
Brand: MULTIBRACKETS
SKU: 10473146
Price: 1086.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 — wall mount for 27–32" screens, 150 kg, VESA 75×75–200×200, tilt 0–15°

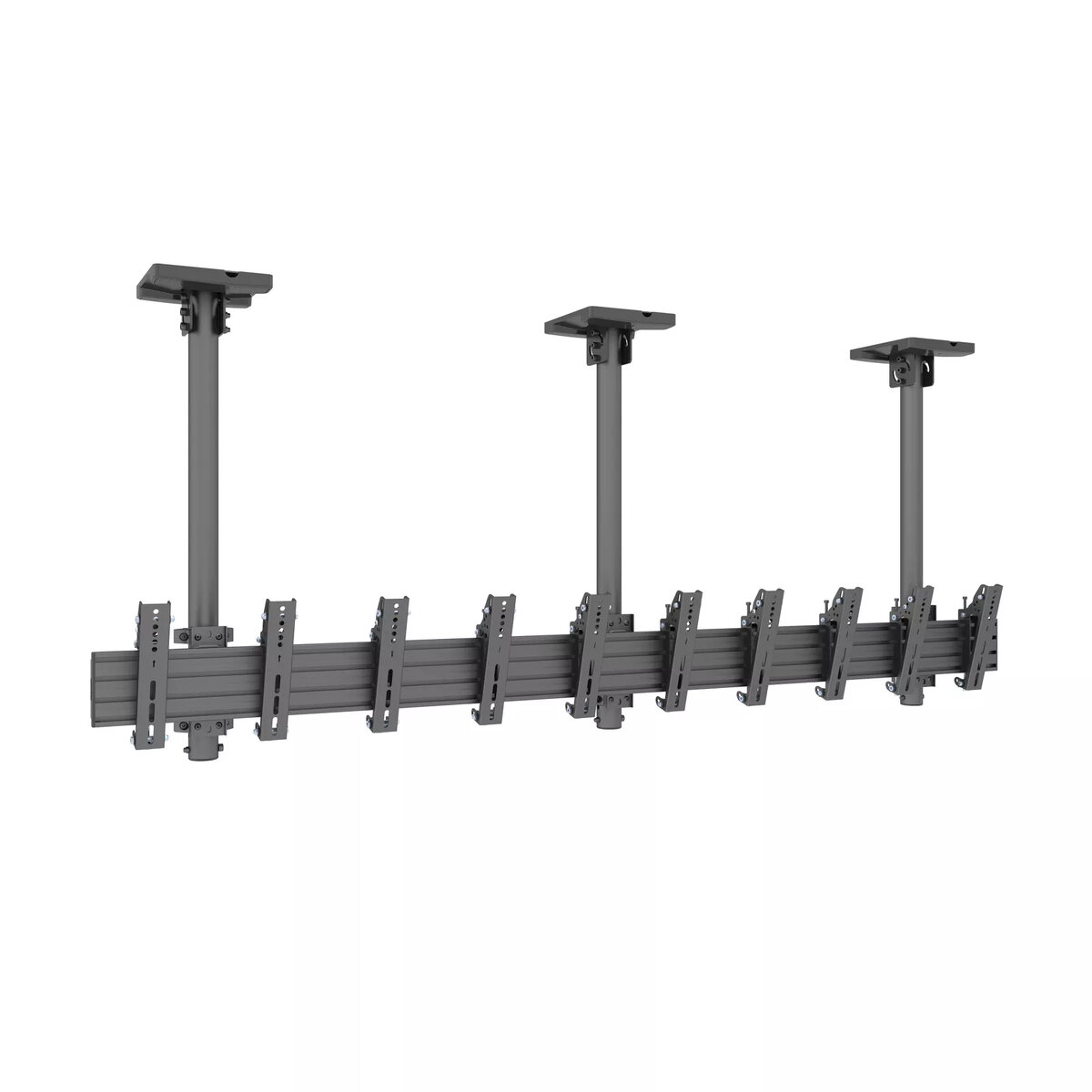

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 Photo 1

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 Photo 2

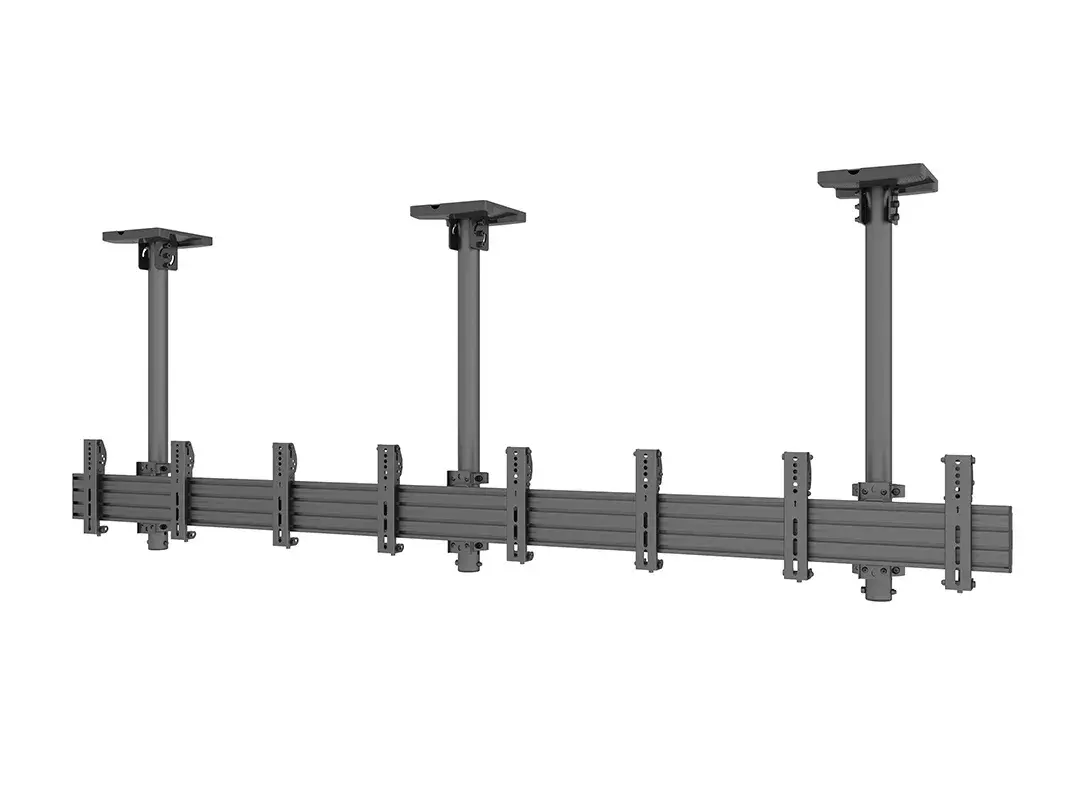

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 Photo 3

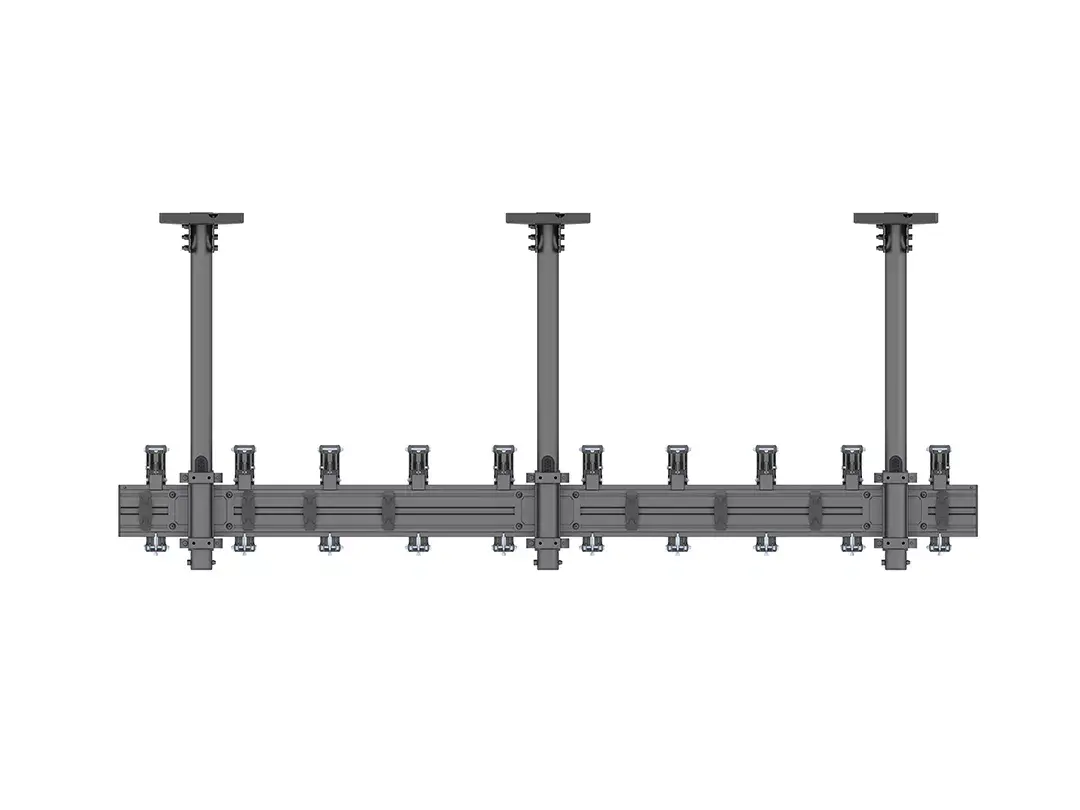

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 Photo 4

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 Photo 5

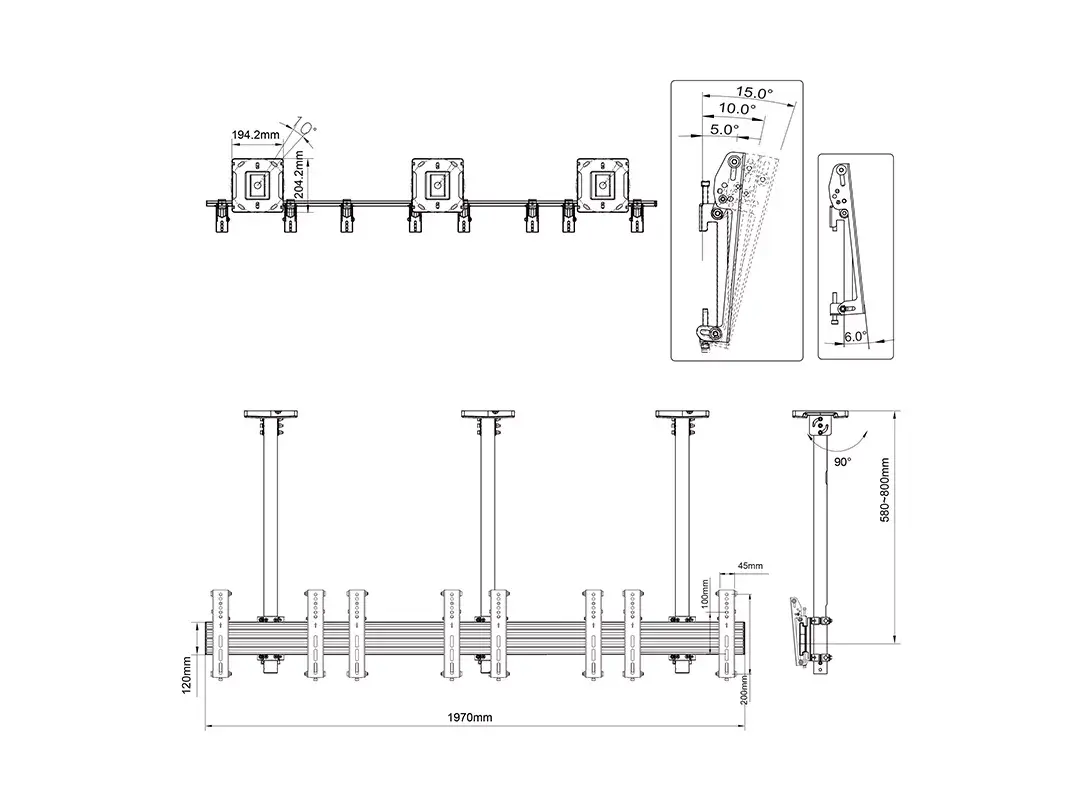

Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Fixed wall mount for menu boards and displays by MULTIBRACKETS, model MBC5X1UP with VESA up to 200×200 mm. Supports screens 27–32" (minimum 68.6 cm, maximum 81.3 cm) with a maximum load of 150 kg. Compatible with VESA 75×75–200×200 mounts and offers a tilt range of 0–15°. Black finish, suitable for signage, retail and hospitality installations.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 10473146

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 8.66 € (Weight: 10.24 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 37.83 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Multibrackets Menu Board Mount Pro MBC5X1UP VESA 200 is a professional-grade mounting solution designed to support five screens side-by-side. This modular system is engineered for digital signage applications, providing a clean and seamless alignment for menu boards in retail, hospitality, and public environments. Built on a high-quality aluminum rail, the system offers robust support and integrated cable management to ensure a professional and aesthetic installation.

Advantages

The primary advantage of this system is its modular design, which allows for quick installation and easy reconfiguration to meet changing display needs. The aluminum rail construction provides a stable and durable foundation, while the integrated cable management system keeps wiring organized and hidden from view. The mount is specifically designed to allow for precise tilt adjustments, ensuring that all five screens are perfectly aligned at the same angle for a uniform viewing experience. Its Scandinavian-inspired design ensures a clean, minimalist look that complements modern commercial interiors.

Suitable for

Digital menu boards in restaurants and cafes
Retail signage and promotional display walls
Information displays in public spaces
Hospitality environments requiring side-by-side screen configurations

When it may not be suitable

This mount is specifically designed for a five-screen side-by-side configuration and may not be suitable for single-screen setups or installations requiring vertical stacking. It is also not intended for screens outside the 27–32 inch size range or those exceeding the specified weight capacity.

Key specifications

Screen size compatibility: 27–32 inches
Maximum load capacity: 150 kg
VESA compatibility: 75x75 to 200x200 mm
Tilt range: 0–15 degrees
Configuration: 5 screens side-by-side
Material: Aluminum

How to use

Installation should be performed by qualified professionals to ensure structural integrity. Begin by securing the aluminum rail to the wall surface, ensuring it is perfectly level. Once the rail is mounted, attach the VESA brackets to the back of each display. Slide the displays onto the rail and adjust their horizontal positioning to achieve the desired spacing. Finally, adjust the tilt angle for each screen to ensure uniform alignment across the entire menu board array, and secure all locking mechanisms to finalize the installation.

What to consider before purchase

Verify that your wall structure can support the combined weight of the mount and five displays.
Ensure your screens fall within the 27–32 inch size range.
Confirm that your display VESA patterns are between 75x75 and 200x200 mm.
Check the available wall space to accommodate the full width of the five-screen configuration.

Usage recommendations

For the best aesthetic results, ensure all cables are routed through the integrated management channels during the initial installation to maintain a clean, professional appearance. Regularly inspect the mounting hardware to ensure all connections remain secure over time.

Specifications

Maximum VESA mount:: 200 x 200
Maximum weight capacity:: 150 kg
Weight:: 22 kg
Number of displays supported:: 5
Maximum screen size:: 32 "
Product colour:: Black

All features

Packaging data

Package weight:: 24809 g
Package depth:: 1000 mm
Package height:: 200 mm
Package width:: 400 mm

Features

Product colour:: Black
Tilt angle range:: 0 - 15

Mounting

Maximum weight capacity:: 150 kg
Panel mounting interface:: 200 x 200, 200 x 100, 100 x 200, 100 x 100, 75 x 75
Mounting type:: Ceiling
Minimum screen size:: 27 "
Maximum screen size:: 32 "
Number of displays supported:: 5
Minimum VESA mount:: 75 x 75
Maximum VESA mount:: 200 x 200
Maximum weight capacity (per display):: 30 kg

Packaging content

Mounting kit:: Yes

Ergonomics

Cable management:: Yes
Ceiling mounting tube length (min):: 580 cm
Ceiling mounting tube length (max):: 750 cm

Weight & dimensions

Weight:: 22 kg
Height:: 230 mm
Width:: 1100 mm
Depth:: 150 mm

Design

Housing material:: Steel, Aluminium
