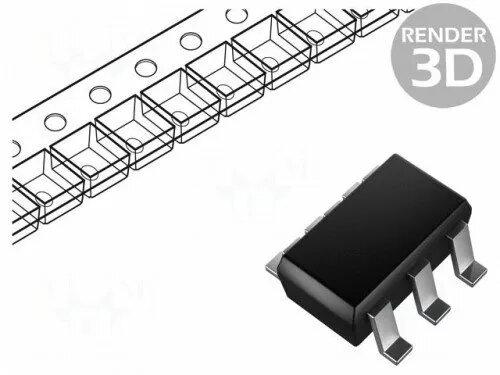

N‑MOSFET transistor EB255381215 30 V 1 A

N‑MOSFET transistor EB255381215 30 V 1 A is a compact semiconductor switch intended for PCB mounting in low‑power electronic circuits. It is specified for a maximum drain‑source voltage of 30 V and a continuous current rating of 1 A. The device is suitable for switching tasks and low‑power amplification, and it is commonly used in repair, hobby, and small equipment applications where a small footprint and straightforward MOSFET behavior are required.

Advantages

This N‑MOSFET offers a balance of voltage handling and current capability in a compact package suitable for printed circuit boards. Its electrical ratings make it appropriate for switching low‑voltage loads and for signal‑level amplification. The device provides predictable MOSFET switching characteristics and can be integrated into common gate‑drive arrangements used in control and power‑management circuits.

Suitable for

• Switching low‑voltage DC loads on PCBs
• Driving small DC motors or servos within the rated current
• LED drivers and lighting circuits with modest current requirements
• Signal‑level amplification and level shifting in analog/digital circuits
• Repair and prototyping of consumer electronics and hobby projects

Key specifications

• Transistor type: N‑channel MOSFET
• Maximum drain‑source voltage (VDS): 30 V
• Continuous drain current (ID): 1 A
• Intended mounting: PCB mount
• Primary applications: switching, low‑power amplification, signal control

How to use

Place the N‑MOSFET on the PCB following the device pinout and recommended soldering practices for small semiconductors. Use an appropriate gate‑drive voltage within the device’s safe operating range to switch the transistor fully on or off; ensure the gate is referenced correctly to the source. Provide suitable heat dissipation if operating near the current limit and include a flyback diode when switching inductive loads such as motors or coils. Verify connections and test the circuit at low voltages before applying the full operating voltage.

Usage recommendations

For reliable operation, avoid continuous operation at the maximum rated current without adequate thermal management. When switching inductive loads, always include transient protection (flyback diodes or snubber circuits) and observe proper gate‑drive timing to minimize switching losses and voltage spikes.
