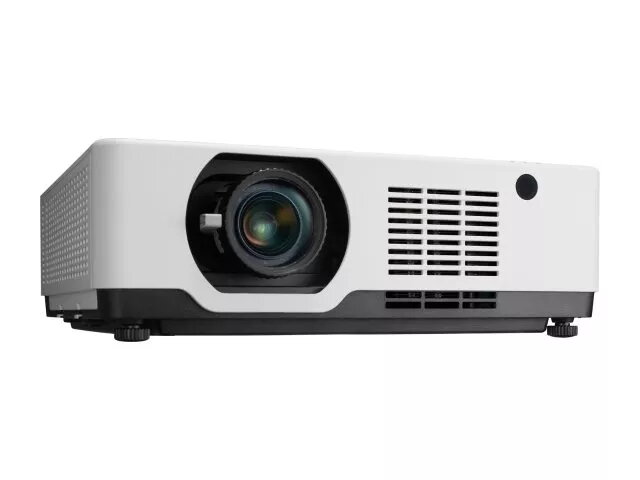

NEC PE506UL Large venue projector 5200 ANSI lumens LCD WUXGA

Short description

The NEC PE506UL is a large venue projector with 5200 ANSI lumens brightness and WUXGA resolution. It features LCD technology and a laser light source with a lifespan of 20000 hours. Manual focus and lens shift capabilities enhance installation flexibility. With a noise level of 37 dB, it operates quietly, making it suitable for various environments.

Warranty: 2 Years

SKU: 4956035

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The NEC PE506UL is a large venue projector offering 5,200 ANSI lumens brightness and WUXGA (1920x1200) native resolution. Using 3LCD projection technology and a laser light source with an extended lifespan, it provides reliable, high-brightness performance in a relatively compact and lightweight housing compared with previous models. Manual focus and lens shift options increase installation flexibility while a moderate noise level supports use in classrooms, training rooms and meeting rooms.

Advantages

The projector combines high brightness and 3LCD colour reproduction with a long-life laser light source, resulting in lower total cost of ownership and consistent image quality. Compact dimensions and reduced weight make installation and repositioning easier. Manual focus and lens shift simplify alignment, and compatibility with common control systems plus wireless presentation options expand connectivity and integration possibilities.

Suitable for

Large classrooms and lecture halls
Training rooms and corporate meeting rooms
Auditoriums and event venues requiring high brightness

Key specifications

Projection technology: LCD (3LCD)
Native resolution: WUXGA (1920 x 1200)
Brightness: 5,200 ANSI lumens
Light source: Laser (long life)
Weight: 7.95 kg
Colour: White
Noise level: 37 dB (typical)

How to use

Install the NEC PE506UL on a ceiling mount or stable surface following the manufacturer’s mounting instructions. Use the manual focus and lens shift controls to align the image with the screen, then select an input and adjust display settings as required. For wireless presentations, connect compatible devices using the projector’s screen sharing features; for integrated control, configure the projector with your room control system according to the control-system documentation.

Usage recommendations

For best results in large venues, place the projector at an appropriate throw distance to achieve the desired screen size, perform initial focus and lens shift adjustments before final mounting, and maintain routine cleaning of air filters and optics per the manufacturer’s service intervals to preserve brightness and image quality.

Specifications

Projection technology:: LCD
Projector native resolution:: WUXGA (1920x1200)
Native aspect ratio:: 16:10
Projector brightness:: 5200 ANSI lumens
Weight:: 7.95 kg
Product colour:: White

All features

Projector

Contrast ratio (typical):: 3000000:1
Projection distance:: 0.75 - 13
Projection technology:: LCD
Projector brightness:: 5200 ANSI lumens
Keystone correction, vertical:: -30 - 30
Keystone correction, horizontal:: -30 - 30
Native aspect ratio:: 16:10
Projector native resolution:: WUXGA (1920x1200)

Packaging content

Remote control included:: Yes
Cables included:: VGA
Manual:: Yes
Batteries included:: Yes

Light source

Light source type:: Laser
Service life of light source:: 20000 h

Design

Product colour:: White
Market positioning:: Presentation
Product type:: Large venue projector

Display

Built-in display:: No

Lens system

Zoom capability:: Yes
Focus:: Manual
Horizontal lens shift range:: -29 - 29
Vertical lens shift range:: 0 - 60

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 335 W
Power source:: AC
Power consumption (standby):: 0.5 W
Power consumption (economy mode):: 177 W
AC input frequency:: 50 - 60
AC input voltage:: 120 - 240

Operational conditions

Operating relative humidity (H-H):: 20 - 88
Storage temperature (T-T):: -10 - 50
Operating temperature (T-T):: 0 - 40

Multimedia

Number of built-in speakers:: 1
RMS rated power:: 16 W
Built-in speaker(s):: Yes

Ports & interfaces

USB 2.0 ports quantity:: 2
Headphone outputs:: 1
Microphone in:: Yes
VGA (D-Sub) ports quantity:: 1
Component video (YPbPr/YCbCr) in:: 1
HDMI ports quantity:: 2
USB 2.0 Type-B ports quantity:: 1

Network

Ethernet LAN:: Yes
Ethernet LAN (RJ-45) ports:: 1

Features

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 37 dB
Noise level (economic mode):: 27 dB

Weight & dimensions

Weight:: 7.95 kg
Height:: 137 mm
Width:: 405 mm
Depth:: 358 mm
