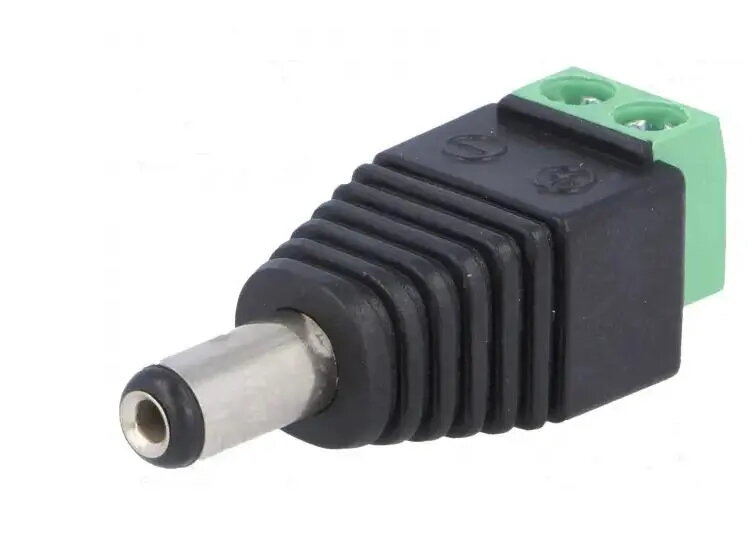

DC Power Plug 2.1x5.5 mm for Cable

The DC Power Plug 2.1x5.5 mm for cable is a reliable connector designed for secure and efficient power transmission in various electronic applications. This component is essential for professionals and DIY enthusiasts who need to create custom power supply cables, ensuring a stable barrel plug interface for a wide range of devices.

Advantages

This connector offers a robust design that facilitates a secure electrical connection, minimizing the risk of power interruptions. Its standard dimensions make it highly compatible with a vast array of electronic equipment, including security systems and lighting solutions. The durable construction ensures long-term performance, making it a dependable choice for both permanent installations and temporary project setups.

Suitable for

• CCTV camera power supply cables
• LED lighting system installations
• Custom power adapter repairs
• DIY electronics and hobbyist projects
• Low-voltage equipment power distribution

When it may not be suitable

This connector is not intended for high-voltage applications or environments requiring moisture and dust protection, as it carries an IP20 rating. It is also not suitable for outdoor use without additional protective housing.

Key specifications

• Connector type: DC barrel plug
• Inner diameter: 2.1 mm
• Outer diameter: 5.5 mm
• Protection rating: IP20
• Design: Cable mount

How to use

To use this DC power plug, strip the insulation from your cable wires and solder or crimp them to the internal terminals of the connector. Ensure that the positive and negative wires are correctly identified and connected to the appropriate pins to prevent short circuits. Once the connections are secure, slide the housing cover into place to protect the internal components.

What to consider before purchase

• Verify the polarity requirements of your device
• Ensure the cable gauge is compatible with the connector terminals
• Confirm that the 2.1x5.5 mm size matches your power input port
• Check if additional heat shrink tubing is needed for cable strain relief

Usage recommendations

Always test the connection with a multimeter before connecting the power supply to your electronic device to ensure correct polarity and prevent potential damage.
