header-product Fixed barcode reader Newland NLS-FM100GD-00 1D CCD Wired USB Black
74.99 €

Fixed barcode reader Newland NLS-FM100GD-00 1D CCD Wired USB Black

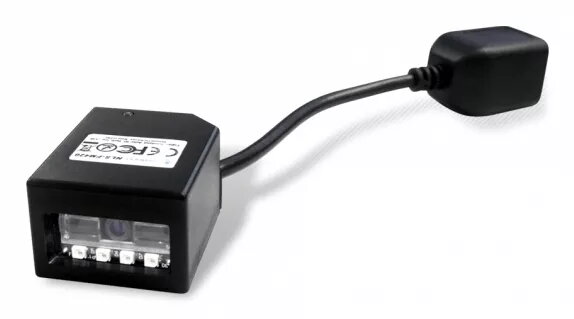

Fixed barcode reader Newland NLS-FM100GD-00 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fixed barcode reader Newland NLS-FM100GD-00 1D CCD Wired USB Black

{{email}}
You keep track of price changes

Fixed barcode reader Newland NLS-FM100GD-00 1D CCD Wired USB Black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Newland NLS-FM100GD-00 is a fixed barcode reader designed for 1D scanning. It features a CCD sensor, wired USB connectivity, and a compact design. With an IP54 rating, it is resistant to dust and water, making it suitable for various environments. The device operates on a 5V DC power supply and has a lightweight design at only 70g, ensuring easy integration into your workspace.
Available for order: 1 pcs.
Warranty: 5 Years
SKU: 10461619
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
20.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
23.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.30 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
23.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Newland NLS-FM100GD-00 is a fixed 1D barcode reader with a CCD sensor and wired USB connectivity. Designed for OEM integration, the compact scanner supports all global standard 1D barcode symbologies and is built to fit into kiosks, ticketing machines, vending solutions and similar devices. The unit has an IP54 rating for dust and water resistance and operates from a 5V DC supply while weighing approximately 70 g, allowing straightforward incorporation into various equipment.

Advantages

The scanner combines a small form factor with robust reading performance that meets and exceeds international standards. It uses Newland Auto-ID core technologies across optics, CMOS, digitizer, decoding, image processing and embedded systems, enabling reliable 1D barcode decoding. Its IP54 protection and supplied accessories simplify installation and adaptation to different customer environments.

Suitable for

  • Kiosks and self-service terminals
  • Ticketing and validation machines
  • Vending and reverse vending machines
  • OEM devices and custom automated systems

Key specifications

  • Barcode type: 1D symbologies (global standards)
  • Sensor: CCD
  • Interface: Wired USB
  • Power: 5V DC
  • Ingress protection: IP54 (dust and water resistant)
  • Weight: ~70 g
  • Design: Compact fixed-mount form factor for OEM integration

How to use

Mount the fixed scanner in the target device or kiosk using the provided accessories and ensure the USB cable is connected to the host system. Position the scanner so incoming 1D barcodes pass through its field of view; the embedded decoder will read supported symbologies and transmit decoded data over USB. Verify power supply is 5V DC and test with sample barcodes to adjust alignment and reading distance as needed.

Usage recommendations

Install the scanner in a protected location within the device to maintain IP54 effectiveness, avoid direct exposure to heavy spray, and perform periodic cleaning of the window to preserve reliable CCD reading performance.

Specifications

Scanner type:
1D
Sensor type:
CCD
Connectivity technology:
Wired
Weight:
0.07 kg
Linear (1D) barcodes supported:
GS1-128 (UCC/EAN-128), GS1 DataBar, EAN-8, EAN-13, Code 93, Code 39 (ASCII), Code 128, Codabar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
Product colour:
Black
Housing material:
Acrylonitrile butadiene styrene (ABS)
All features

Scanning

Scanner type:
1D
Sensor type:
CCD
Type:
Fixed bar code reader
Linear (1D) barcodes supported:
GS1-128 (UCC/EAN-128), GS1 DataBar, EAN-8, EAN-13, Code 93, Code 39 (ASCII), Code 128, Codabar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
Wavelength:
628 nm
Yaw reading angle:
60 - 60
Pitch reading angle:
-65 - 65
Tilt reading angle:
-30 - 30
Light levels (direct sunlight):
0 - 100000
Horizontal field of view:
40 °
Trigger mode:
Continuous, Manual

Ports & interfaces

Connectivity technology:
Wired
Cable length:
0.5 m
Standard interfaces:
USB

Power

AC adapter output voltage:
100-240
Input voltage:
5
Input current:
1.5
Power source type:
DC

Technical details

Compliance certificates:
Federal Communications Commission (FCC), KC, Electromagnetic Compatibility (EMC)

Performance

Product colour:
Black
Housing material:
Acrylonitrile butadiene styrene (ABS)
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP54
Protection features:
Water resistant, Dust resistant
Buzzer:
Yes
Print contrast:
30 %

Weight & dimensions

Weight:
0.07 kg
Height:
26 mm
Width:
37 mm
Depth:
49 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 60
Operating temperature (T-T):
-5 - 45
