header-product Fixed barcode reader Newland NLS-FM100GD-RC 1D CCD Wired Black
86.99 €

Fixed barcode reader Newland NLS-FM100GD-RC 1D CCD Wired Black

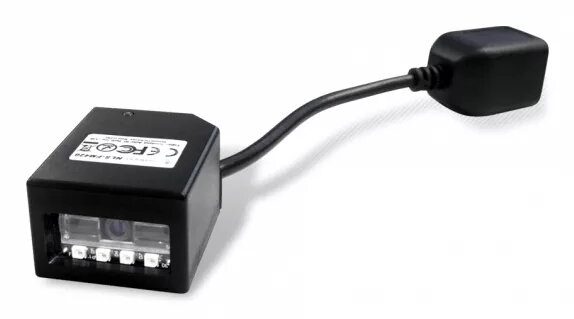

Fixed barcode reader Newland NLS-FM100GD-RC Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fixed barcode reader Newland NLS-FM100GD-RC 1D CCD Wired Black

{{email}}
You keep track of price changes

Fixed barcode reader Newland NLS-FM100GD-RC 1D CCD Wired Black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Newland NLS-FM100GD-RC is a fixed barcode reader designed for 1D scanning. It features a CCD sensor, wired connectivity with RS-232 interface, and a 2m cable. The device is lightweight at 70g and made from durable ABS material, offering IP54 protection. It operates on a 5V DC power supply and is ideal for retail and inventory management applications.
Available at price 86.99 €: 57 pcs.
Total available for order: 111 pcs.
Warranty: 5 Years
SKU: 4816110
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.30 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Newland NLS-FM100GD-RC is a fixed 1D barcode reader with a CCD sensor designed for OEM integration. It offers wired RS-232 connectivity with a 2 m cable, a compact ABS housing, and IP54 protection for dust and water resistance. Weighing 70 g and powered by 5 V DC, the scanner supports common linear barcode symbologies and is suitable for kiosks, ticketing and vending or other embedded scanning solutions.

Advantages

The scanner delivers reading performance that meets and exceeds global standards and includes Newland Auto-ID core technologies — optical module, CMOS/digitizer, decoder, image processing and embedded systems — all developed and manufactured by Newland. Its small form factor and included accessories simplify mechanical and electrical integration into customer environments. The IP54 rating and ABS housing provide durability for many commercial and industrial installations.

Suitable for

  • Kiosks and self-service terminals
  • Ticketing machines and access control
  • Reverse vending and retail vending machines
  • Retail point-of-sale and inventory management
  • OEM embedded scanning solutions

Key specifications

  • Scanner type: Fixed 1D
  • Sensor: CCD
  • Connectivity: Wired (RS-232), 2 m cable
  • Power: 5 V DC
  • Weight: 0.07 kg
  • Housing material: ABS
  • Protection rating: IP54
  • Supported 1D symbologies: GS1-128 (UCC/EAN-128), GS1 DataBar, EAN-8, EAN-13, Code 93, Code 39 (ASCII), Code 128, Codabar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
  • Colour: Black

How to use

Mount the Newland NLS-FM100GD-RC in the intended OEM housing or fixture using the supplied accessories, connect the RS-232 cable to the host system and apply a 5 V DC power supply. Position the scanner so barcodes pass through the read window at an appropriate distance and orientation for 1D CCD scanning. Use the host device or Newland configuration tools to set symbology enable/disable options and decoding parameters as required.

Usage recommendations

For reliable operation, keep the read window clean and protected from prolonged exposure to direct water jets; verify mounting minimizes vibration and aligns barcodes within the CCD field of view. Choose RS-232 settings that match the host system and test reading performance with representative barcodes during integration.

Specifications

Scanner type:
1D
Sensor type:
CCD
Connectivity technology:
Wired
Weight:
0.07 kg
Linear (1D) barcodes supported:
GS1-128 (UCC/EAN-128), GS1 DataBar, EAN-8, EAN-13, Code 93, Code 39 (ASCII), Code 128, Codabar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
Product colour:
Black
Housing material:
Acrylonitrile butadiene styrene (ABS)
All features

Scanning

Scanner type:
1D
Sensor type:
CCD
Type:
Fixed bar code reader
Linear (1D) barcodes supported:
GS1-128 (UCC/EAN-128), GS1 DataBar, EAN-8, EAN-13, Code 93, Code 39 (ASCII), Code 128, Codabar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
Wavelength:
628 nm
Yaw reading angle:
60 - 60
Pitch reading angle:
-65 - 65
Tilt reading angle:
-30 - 30
Light levels (direct sunlight):
0 - 100000
Horizontal field of view:
40 °
Trigger mode:
Continuous, Manual

Ports & interfaces

Connectivity technology:
Wired
Cable length:
2 m
Standard interfaces:
RS-232

Power

AC adapter output voltage:
100-240
Input voltage:
5
Input current:
1.5
Power source type:
DC

Technical details

Compliance certificates:
Federal Communications Commission (FCC), KC, Electromagnetic Compatibility (EMC)

Performance

Product colour:
Black
Housing material:
Acrylonitrile butadiene styrene (ABS)
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP54
Protection features:
Water resistant, Dust resistant
Buzzer:
Yes
Print contrast:
30 %

Weight & dimensions

Weight:
0.07 kg
Height:
26 mm
Width:
37 mm
Depth:
49 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 60
Operating temperature (T-T):
-5 - 45
