header-product Built-in bar code reader Newland FM3281-NFC-28 1D/2D CMOS Wired RS232
295.99 €

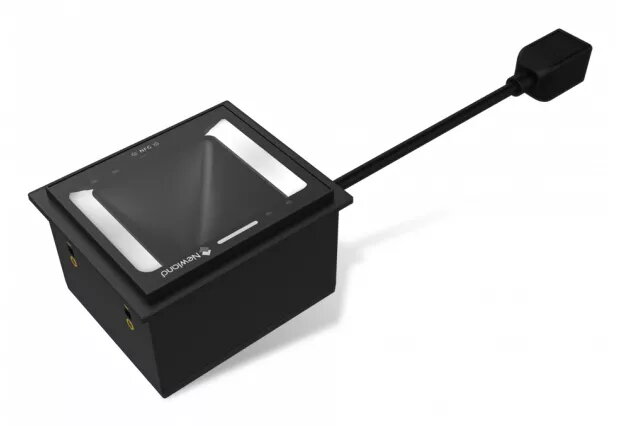

Built-in bar code reader Newland FM3281-NFC-28 1D/2D CMOS Wired RS232

Built-in bar code reader Newland FM3281-NFC-28 Photo 1
Built-in bar code reader Newland FM3281-NFC-28 Photo 2
Built-in bar code reader Newland FM3281-NFC-28 Photo 3
Built-in bar code reader Newland FM3281-NFC-28 Photo 4
Built-in bar code reader Newland FM3281-NFC-28 Photo 1
Built-in bar code reader Newland FM3281-NFC-28 Photo 2
Built-in bar code reader Newland FM3281-NFC-28 Photo 3
Built-in bar code reader Newland FM3281-NFC-28 Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Built-in bar code reader Newland FM3281-NFC-28 1D/2D CMOS Wired RS232

{{email}}
You keep track of price changes

Built-in bar code reader Newland FM3281-NFC-28 1D/2D CMOS Wired RS232

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Newland FM3281-NFC-28 is a built-in bar code reader designed for 1D and 2D scanning. It features a CMOS sensor, wired connectivity via RS-232 and USB, and a wireless range of 50 m. With an IP67 rating, it is dust-tight and can withstand immersion in water. The device operates on a DC power source with an input voltage of 5-24 V and consumes 220 mA. Its compact dimensions make it suitable for various applications.
Available at price 295.99 €: 5 pcs.
Total available for order: 58 pcs.
Warranty: 2 Years
SKU: 10762170
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
20.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
23.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.19 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
23.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Newland FM3281 Grouper is a built-in 1D/2D barcode and OCR reader with full NFC functionality, designed for fixed-mount indoor and outdoor use. Equipped with a CMOS megapixel sensor and wired interfaces (RS232 and USB), the FM3281 supports fast, secure data transfers and can operate from a DC input of 5–24 V. Its IP67 rating, glare-reduction optics and robust sealing make it suitable for environments exposed to dust, moisture and direct sunlight.

Advantages

The FM3281 combines high-sensitivity barcode and OCR scanning with full NFC support, enabling combined barcode/OCR reading and contactless card interactions. Its IP67 protection prevents dust and water ingress and avoids condensation problems when temperatures change. Integrated IR and light triggers improve capture accuracy and throughput, while continuous status feedback allows remote monitoring of device health. Additional protocols such as Wiegand and RS485 extend connectivity options for access control and multi-device or long-distance installations.

Suitable for

  • Outdoor fixed-mount barcode reading in bright sunlight
  • Access control systems using NFC cards and Wiegand
  • ID document OCR and barcode capture
  • Industrial installations with long cable runs using RS485
  • Remote sites requiring continuous device status reporting

Key specifications

  • Scan types: 1D and 2D barcodes, OCR capable
  • Sensor: CMOS megapixel
  • Interfaces: RS232, USB; additional protocols: Wiegand, RS485
  • NFC: full-functionality, supports various contactless cards
  • Ingress protection: IP67
  • Power: DC input 5–24 V, current 220 mA
  • Mounting: fixed / built-in reader
  • Brand / MPN: Newland, NLS-FM3281-NFC-28

How to use

Mount the FM3281 securely in the fixed position required for your application and connect power and the chosen host interface (RS232 or USB). Configure communication and protocol settings (for example Wiegand or RS485) according to the host system requirements. Present barcodes, ID documents, or NFC cards to the reader window; the IR and light sensors trigger capture automatically. For OCR reading, position documents within the camera field and allow the device to process the image before passing data to the host.

Usage recommendations

Install the reader where the window is free from direct obstructions and where mounting prevents water pooling. For best outdoor performance, orient the reader to minimize direct glare on the lens while keeping the reading area accessible. Use the appropriate communication protocol for your system: Wiegand for secure access control, RS485 for long cable runs or multi-device setups. Regularly inspect seals and connectors to maintain IP67 performance.

Specifications

Scanner type:
1D/2D
Sensor type:
CMOS
Connectivity technology:
Wired
Linear (1D) barcodes supported:
EAN-13, Code 39, Code 128
Product colour:
Black
All features

Scanning

Scanner type:
1D/2D
Sensor type:
CMOS
Type:
Built-in bar code reader
Linear (1D) barcodes supported:
EAN-13, Code 39, Code 128
Pitch reading angle:
-60 - 60
Optical sensor resolution (W x H):
1280 x 1088

Ports & interfaces

Connectivity technology:
Wired
Wireless range:
50 m
Standard interfaces:
RS-232, USB
Near Field Communication (NFC):
Yes

Power

Input voltage:
5 - 24
Power consumption:
220 mA
Power source type:
DC

Performance

Product colour:
Black
LED indicators:
Alarm
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67
Print contrast:
25 %

Weight & dimensions

Height:
67.7 mm
Width:
78.7 mm
Depth:
47.7 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-20 - 60

Packaging data

Cables included:
USB
External power adapter:
Yes
