header-product Fixed bar code reader Newland FM430 Barracuda 1D 2D CMOS Wired Black
188.49 €

Fixed bar code reader Newland FM430 Barracuda 1D 2D CMOS Wired Black

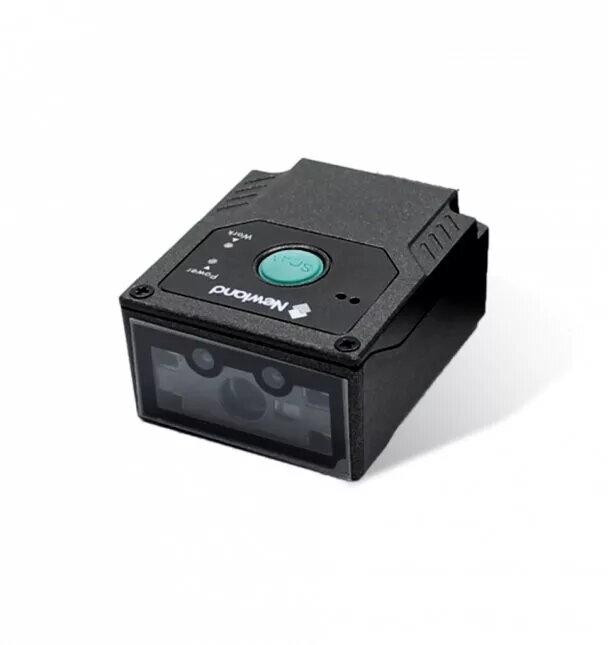

Fixed bar code reader Newland FM430 Barracuda Photo 1
Fixed bar code reader Newland FM430 Barracuda Photo 2
Fixed bar code reader Newland FM430 Barracuda Photo 1
Fixed bar code reader Newland FM430 Barracuda Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fixed bar code reader Newland FM430 Barracuda 1D 2D CMOS Wired Black

{{email}}
You keep track of price changes

Fixed bar code reader Newland FM430 Barracuda 1D 2D CMOS Wired Black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Newland FM430 Barracuda is a fixed bar code reader designed for 1D and 2D scanning. It features a CMOS sensor, wired connectivity with RS-232 interface, and a durable black housing made of ABS and PC materials. With an IP54 rating, it is resistant to dust and water, making it suitable for various environments. The device operates at a voltage of 5V and has a compact design with a weight of 75g, making it easy to integrate into different setups.
Available at price 188.49 €: 8 pcs.
Total available for order: 16 pcs.
Warranty: 5 Years
SKU: 4772738
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
18.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
18.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Newland FM430 Barracuda is a fixed-mounted barcode reader designed for fast, reliable 1D and 2D scanning. Equipped with a megapixel CMOS camera, the FM430 reads a wide range of linear and matrix barcodes with high speed and supports wired connectivity. With an IP54 rating and durable ABS/PC housing, it is suitable for use in environments where dust or moisture may be present. The unit weighs 75 g and operates at 5 V, making it compact and straightforward to integrate into kiosks, production lines or other fixed installations.

Advantages

The FM430 Barracuda combines a megapixel camera with intelligent programming, an IR sensor and a light sensor to ensure quick barcode capture even in suboptimal lighting. It supports both handsfree and manual scanning modes and can be configured to read at short and long distances. Optional laser aimer and automatic brightness adjustment improve usability for inexperienced operators and mobile-phone screen scanning. Its IP54 rating and robust materials provide resistance to dust and moisture for reliable outdoor or semi-outdoor deployment.

Suitable for

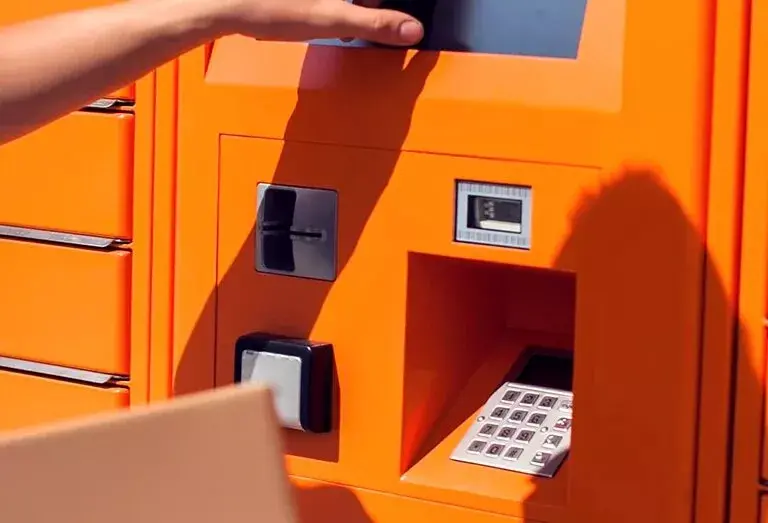

  • Self-service kiosks (e‑commerce, ticketing)
  • Express delivery and postal sorting
  • Access control and loyalty systems
  • Mobile payment and events ticket redemption
  • Production line and industrial fixed scanning points
  • Parking ticket machines and transport boarding/pass scanning

Key specifications

  • Scanner type: 1D/2D fixed mount
  • Sensor type: CMOS megapixel camera
  • Read rate: up to 60 reads/s
  • Supported 1D: Code 93, UPC‑E, UPC‑A, Plessey, MSI, Industrial 2 of 5, ITF‑6, ITF‑14, EAN‑8, EAN‑13, EAN 128, Code 128, Code 11, Codabar, Code 39
  • Supported 2D: MicroPDF417, PDF417, QR Code, Micro QR, MaxiCode, Aztec, Code 1, Data Matrix
  • Connectivity: Wired (USB with 2 m extension cable; RS‑232 interface available)
  • Housing: ABS + PC; colour: black
  • IP rating: IP54
  • Weight: 0.075 kg
  • Operating voltage: 5 V

How to use

Mount the FM430 Barracuda in the desired fixed position and connect it via the wired interface (USB with supplied 2 m extension cable or RS‑232 as required). Select handsfree mode for continuous automatic scanning or use the manual trigger if preferred. Position the barcode within the field of view; the device’s IR and light sensors and adjustable illumination will assist in detecting and optimising exposure for 1D and 2D codes, including codes displayed on mobile screens. Optionally enable the red cross laser aimer for assisted targeting.

Usage recommendations

The scanner performs best when the barcode area is kept free of dirt or heavy glare; if used outdoors, place the unit in suitable housing to extend protection. Configure scanning distance and illumination settings according to the barcode size and mounting height to achieve optimal read rates.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.075 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Fixed bar code reader
Power source type: What the power source is.
RS-232
Product colour: The colour e.g. red, blue, green, black, white.
Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
Code 93, EAN 128, Code 39, Code 128, Code 11, Codabar, ITF-14, EAN-13, EAN-8, ITF-6, Industrial 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Aztec Code, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Data Matrix, Code 1
All features

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60

Packaging data

Cables included:
RS-232
External power adapter:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.075 kg
Height: The measurement of the product from head to foot or from base to top.
24.3 mm
Depth: The distance from the front to the back of something.
49.5 mm
Width: The measurement or extent of something from side to side.
41.5 mm

Power

Power consumption:
276.8 mA
AC adapter output voltage:
100 - 240
Input frequency: The frequency (Hz) which is required to power the product.
50 - 60
Input voltage: The voltage (V) which is required to power the product.
5
Power source type: What the power source is.
RS-232

Performance

Certification:
FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC
Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
1000 MHz
Built-in processor: Whether or not a processor is built into the device.
Yes
Print contrast:
25 %
Buzzer:
Yes
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.
Electrostatic Discharge (ESD) protection, Drop proof
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP54
Housing material: What the casing of the product is made of.
Polycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS)
Product colour: The colour e.g. red, blue, green, black, white.
Black

Ports & interfaces

Cable length: How long the cable is.
2 m
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Yaw reading angle:
0 - 360
Pitch reading angle:
-55 - 55
Tilt reading angle:
-55 - 55
Read rate (max):
60 reads/s
Optical sensor resolution (W x H):
1280 x 800
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
Code 93, EAN 128, Code 39, Code 128, Code 11, Codabar, ITF-14, EAN-13, EAN-8, ITF-6, Industrial 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Aztec Code, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Data Matrix, Code 1
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Fixed bar code reader
