header-product Barcode module Newland FM8080-20 1D/2D CMOS Wired Black
235.99 €

Barcode module Newland FM8080-20 1D/2D CMOS Wired Black

Barcode module Newland FM8080-20 Photo 1
Barcode module Newland FM8080-20 Photo 2

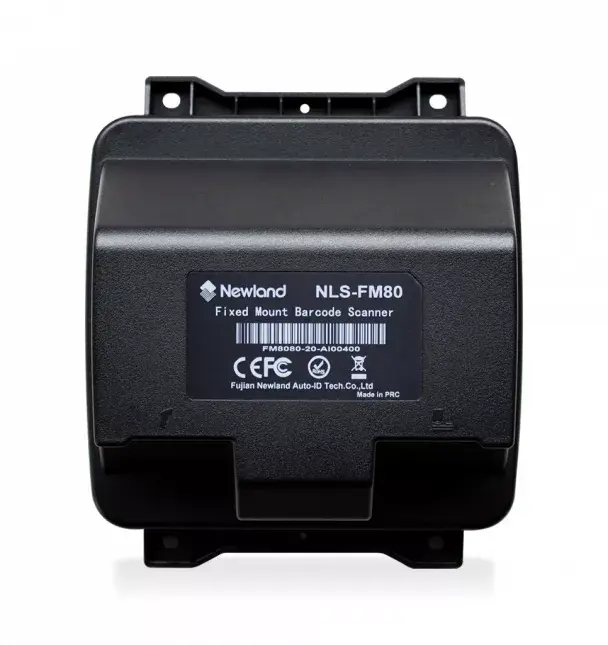

Barcode module Newland FM8080-20 Photo 3

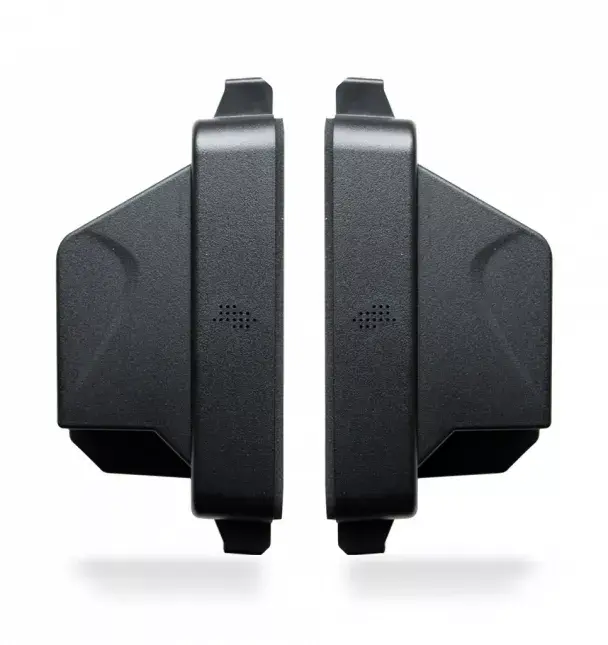

Barcode module Newland FM8080-20 Photo 4

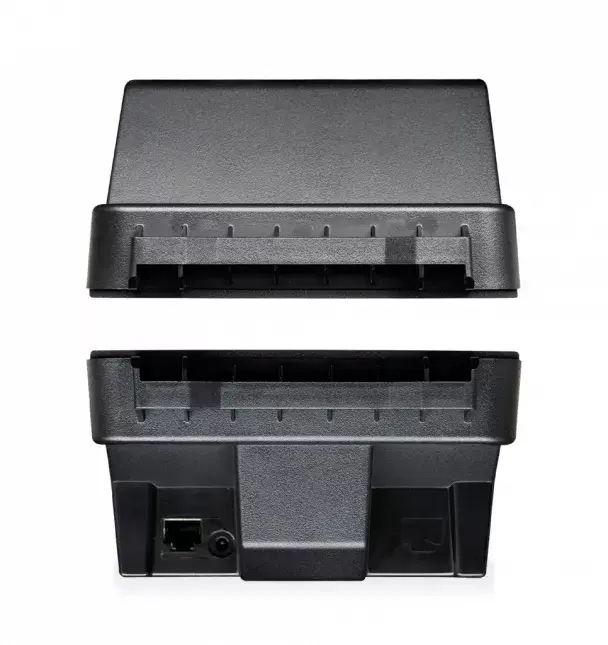

Barcode module Newland FM8080-20 Photo 5
Barcode module Newland FM8080-20 Photo 1
Barcode module Newland FM8080-20 Photo 2
Barcode module Newland FM8080-20 Photo 3
Barcode module Newland FM8080-20 Photo 4
Barcode module Newland FM8080-20 Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Barcode module Newland FM8080-20 1D/2D CMOS Wired Black

{{email}}
You keep track of price changes

Barcode module Newland FM8080-20 1D/2D CMOS Wired Black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Newland FM8080-20 is a wired barcode module designed for 1D and 2D scanning. It features a CMOS sensor, IP52 protection, and standard interfaces like RS-232 and USB. With a compact design and lightweight build, it operates on 5V input and consumes 500mA power, making it suitable for various applications in retail and logistics.
Available at price 235.99 €: 12 pcs.
Total available for order: 24 pcs.
Warranty: 5 Years
SKU: 4772282
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
15.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

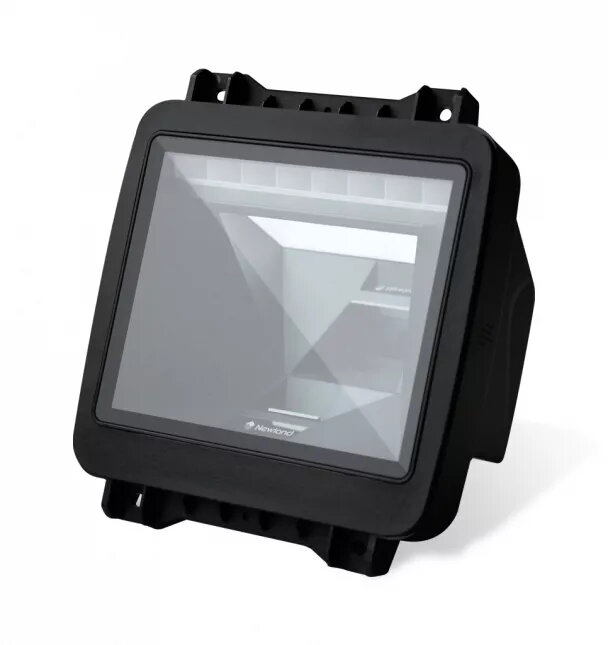

The Newland FM8080-20 (FM80 Salmon) is a wired 1D/2D barcode module with a CMOS sensor designed for retail and integrated point-of-sale installations. It offers megapixel scan technology, a large scan window and motion-tolerant decoding to enable fast scanning of retail items, including codes displayed on customer phone screens. The compact module supports standard interfaces and is intended for flush mounting in service counters or enclosures.

Advantages

The FM80 Salmon provides high motion tolerance (up to 3.5 m/s) for efficient processing of moving EAN and retail codes, reducing checkout delays. Its large scan window and small depth-of-field simplify aiming and improve read rates for large or closely presented items. Short- and long-range, anti-glare illumination and optimized optics ensure comfortable customer-facing use and good performance reading phone-screen barcodes. Megapixel decoding improves reliability on low-quality, damaged or high-density 2D codes. The front window includes six anchor points and a soft inlay for flush mounting; the unit has an IP52 rating and requires additional protection if exposed.

Suitable for

  • Retail POS fixed installations and checkout counters
  • Self-service kiosks and customer-facing scanning points
  • Integrated enclosures where flush mounting is required
  • Environments that need reliable decoding of high-density 2D codes (alcohol, tobacco, pharmaceuticals)

Key specifications

  • Model: Newland FM8080-20 (FM80 Salmon)
  • Scan types: 1D / 2D (megapixel CMOS)
  • Motion tolerance: up to 3.5 m/s for retail codes
  • Protection rating: IP52 (requires additional protection for exposed use)
  • Power: 5 V input, 500 mA consumption
  • Interfaces: standard wired interfaces (e.g., RS-232, USB)
  • Mounting: fixed/mountable with six anchor points on front window

How to use

Install the FM8080-20 into the counter or enclosure so the scan window is flush with the surface using the six anchor points for secure fitting. Connect the module to the host system using the appropriate wired interface (USB or RS-232) and supply 5 V power. Present barcodes to the scan window at normal retail handling speeds; the scanner’s motion tolerance and large scan window reduce the need for precise alignment. For phone-screen barcodes, hold the screen steady briefly within the scanner’s reading area to ensure a reliable read.

Usage recommendations

The FM8080-20 is designed for indoor, customer-facing retail and kiosk installations. Because the device has an IP52 rating, provide additional environmental protection if the scanner will be exposed to dust or moisture. Use the soft window inlay and anchor points to achieve a flush, vibration-free mount and test reading performance with representative barcode types (printed and on-screen) during installation.

Specifications

Scanner type:
1D/2D
Sensor type:
CMOS
Connectivity technology:
Wired
Weight:
0.4483 kg
Linear (1D) barcodes supported:
UPC-E, MSI, EAN-8, EAN-13, Code 93, Code 39, Code 128, Code 11, Codabar, Code 25 (IR 2 of 5)
2D (matrix & stacked) barcodes supported:
Micro QR Code, QR Code, PDF417, MicroPDF417, MaxiCode, Data Matrix, Aztec Code
Product colour:
Black
All features

Scanning

Scanner type:
1D/2D
Sensor type:
CMOS
Type:
Barcode module bar barcode readers
Linear (1D) barcodes supported:
UPC-E, MSI, EAN-8, EAN-13, Code 93, Code 39, Code 128, Code 11, Codabar, Code 25 (IR 2 of 5)
2D (matrix & stacked) barcodes supported:
Micro QR Code, QR Code, PDF417, MicroPDF417, MaxiCode, Data Matrix, Aztec Code

Ports & interfaces

Connectivity technology:
Wired
Standard interfaces:
RS-232, USB

Power

Input voltage:
5
Power consumption:
500 mA

Performance

Product colour:
Black
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP52

Weight & dimensions

Weight:
0.4483 kg
Height:
166.5 mm
Width:
149 mm
Depth:
78.5 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
-20 - 60
