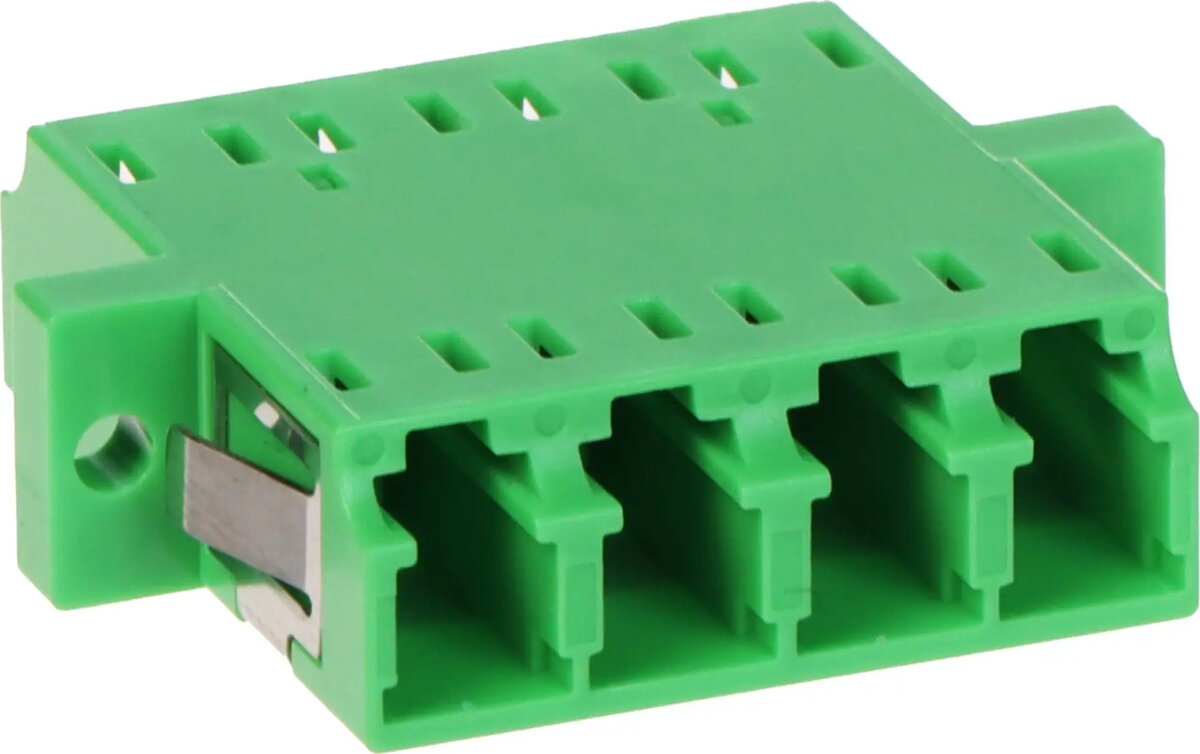

No name optical adapter AD-4LC-APC/4LC-APC single-mode, 4x LC/APC to 4x LC/APC

No name optical adapter AD-4LC-APC/4LC-APC single-mode is a passive fiber coupling module that connects four LC/APC connectors to four LC/APC connectors. It is designed for mounting in fiber optic patch panels, distribution frames or enclosures and provides correct angled physical contact (APC) mating to maintain low back reflection required in single-mode networks. The adapter supports stable mechanical alignment and reliable optical transmission for telecom, data center and FTTH cabling where LC/APC interfaces are used.

Advantages

The adapter provides precise alignment of LC/APC ferrules to ensure consistent optical performance and low insertion loss. Its angled physical contact design reduces back reflection compared with flat connectors, which helps maintain signal integrity in single-mode systems. The compact four-channel format saves space in patch panels and enclosures and simplifies fiber management by grouping four LC/APC connections in a single adapter unit.

Suitable for

• Telecommunication single-mode links
• Data center patch panels and fiber backbone connections
• FTTH (fiber-to-the-home) installations requiring LC/APC interfaces
• Optical distribution frames and enclosure terminations

Key specifications

• Connector type: LC/APC to LC/APC (angled physical contact)
• Number of channels: 4
• Fiber type: single-mode
• Function: passive fiber coupling / mechanical alignment
• Form factor: compact quad adapter suitable for standard patch panels and enclosures

How to use

Install the adapter into the compatible cutout or module slot of a patch panel, distribution frame or enclosure following the panel manufacturer’s mounting method. Insert LC/APC patch cords into the adapter until they click into place, ensuring the angled ferrule faces mate correctly to maintain APC contact geometry. For removal, depress the latch on the LC connector and withdraw the connector straight out to avoid damaging ferrules or the adapter alignment sleeve.

Usage recommendations

Use clean, undamaged LC/APC connectors and perform fiber end-face inspection and cleaning before mating. Avoid excessive bending or strain on connected fibers and secure patch cords to reduce movement. For optimal performance in single-mode networks, ensure adapters and patch cords meet relevant insertion loss and return loss specifications and follow standard cabling practices when integrating into telecom, data center or FTTH installations.
