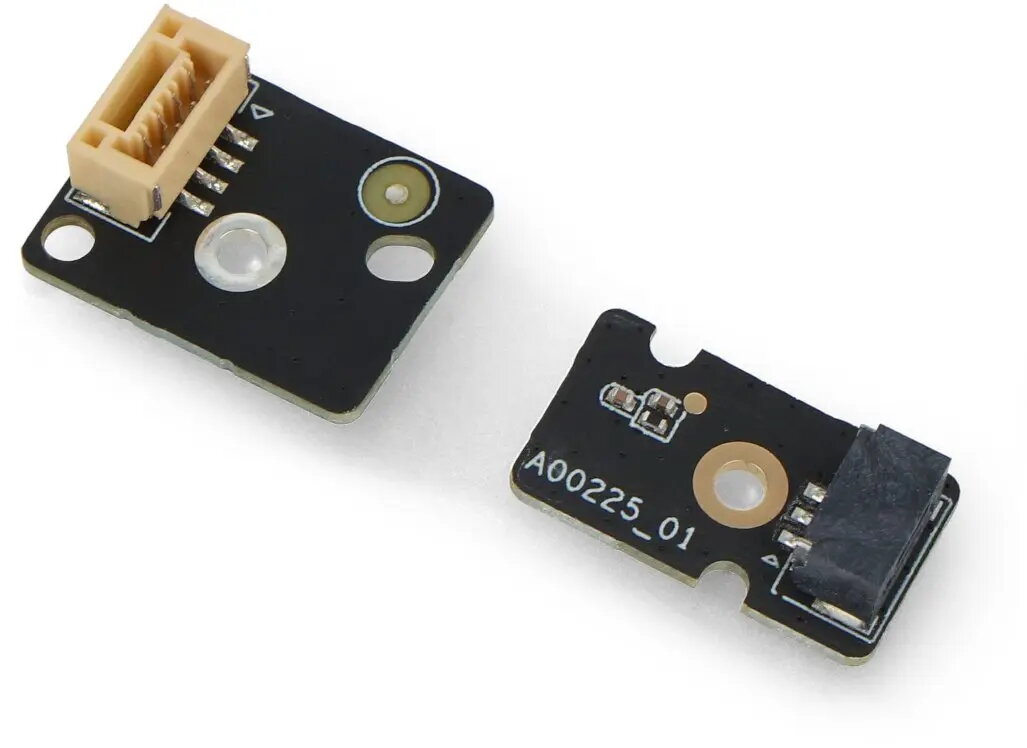

No name Hall sensor set for Bambu Lab H2 series printers — digital and analog sensors

Replacement Hall sensor set compatible with Bambu Lab H2 series 3D printers, including one digital and one analog sensor. The pair is designed for magnetic field detection to identify axis home positions, endstop triggers or filament/runout events in compatible H2-series printer assemblies. Intended for repair, maintenance or modification, the sensors restore or extend position-detection functions without altering the printer’s original mechanics.

Advantages

The set contains both a digital Hall sensor and an analog Hall sensor, enabling use in circuits that require either a discrete switch signal or a variable magnetic-field output. Sensors are compact and intended for straightforward replacement of the original components in compatible H2-series printers. Using magnetic sensing reduces mechanical wear compared with mechanical endstops and can improve long-term reliability of homing and probe-related functions.

Suitable for

• Repairing or replacing faulty endstop or probe sensors on Bambu Lab H2 series printers
• Upgrading printer assemblies that require separate digital and analog Hall inputs
• Maintenance tasks where non-contact position detection is preferred
• Prototyping or custom wiring where both switch and variable Hall outputs are needed

Key specifications

• Includes: one digital Hall-effect sensor and one analog Hall-effect sensor
• Detection method: magnetic-field sensing for non-contact position detection
• Form factor: compact PCB-mounted sensor modules suitable for printer assemblies
• Signal types: digital (open-collector or logic-level switch output) and analog (varying voltage proportional to magnetic flux density)
• Typical applications: endstop/home detection, probe signal input, filament/runout sensing

How to use

Identify the faulty or target sensor location on the Bambu Lab H2 series printer and power the machine off before beginning work. Remove any covers or mounts needed to access the original sensor, then desolder or disconnect the existing sensor from its wiring harness. Fit the replacement sensor module in the same mechanical position and secure it using the original mounting points. Reconnect wiring, ensuring correct signal and power polarity for the digital and analog outputs, then power on the printer and verify sensor operation through the printer’s diagnostics or homing routine. Adjust sensor position relative to the magnet or moving part if required to achieve reliable switching or desired analog range.

Usage recommendations

Use appropriate ESD protection when handling the sensors and avoid exposing the sensor PCBs to excessive moisture or contaminants. Verify wiring and signal logic before applying power. If calibration or adjustment is needed, make small positional changes while testing homing and probe responses to avoid excessive mechanical stress.
