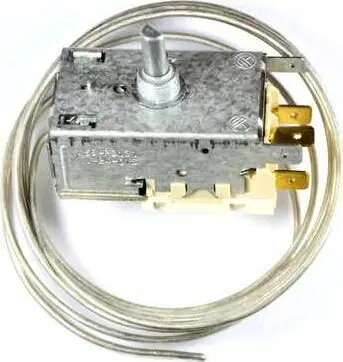

Mechanical thermostat RANCO K59-P3131 – bimetal temperature control capillary sensor

The mechanical thermostat RANCO K59-P3131 is a bimetal temperature control device with a capillary sensor designed for on/off regulation of heating and cooling systems. It operates without electronic components, using a mechanical bimetal element to detect temperature changes and a capillary probe to sense remote temperatures. The unit is suitable for installations where a straightforward, durable temperature switch is required, such as boilers, ovens, HVAC equipment and industrial machinery.

Advantages

The thermostat offers reliable mechanical operation and simple temperature adjustment via a setpoint control. Its bimetal sensing element and capillary sensor deliver stable switching action and remote sensing capability, reducing the need for wiring near the heat source. The absence of electronic circuitry increases resistance to electrical interference and contributes to long service life under typical operating conditions.

Suitable for

• On/off control of domestic and commercial boilers
• Temperature regulation in ovens and cooking equipment
• Control of HVAC systems and fan-coil units
• Basic temperature limit or safety cut-out in industrial machines

Key specifications

• Type: Mechanical bimetal thermostat with capillary sensor
• Sensing element: Bimetallic strip
• Sensor form: Capillary probe for remote temperature sensing
• Control action: On/off switching at set temperature
• Adjustment: Manual setpoint control
• Construction: Mechanical components without solid-state electronics

How to use

Install the capillary sensor in the location that represents the temperature to be controlled, securing the probe according to the mounting requirements of the application. Wire the thermostat into the control circuit so that it switches the power to the heating or cooling device when the setpoint is reached. Set the desired temperature using the mechanical adjustment control; test the switching action across the expected temperature range to confirm correct operation. Ensure electrical connections are made with power disconnected and in accordance with applicable wiring standards.

Usage recommendations

Use the RANCO K59-P3131 where simple, robust temperature control is required and where electronic controllers are unnecessary. Regularly inspect the capillary for kinks or damage and verify switching accuracy periodically. For applications requiring precise temperature stability, consider using this thermostat in conjunction with additional control or safety devices.
