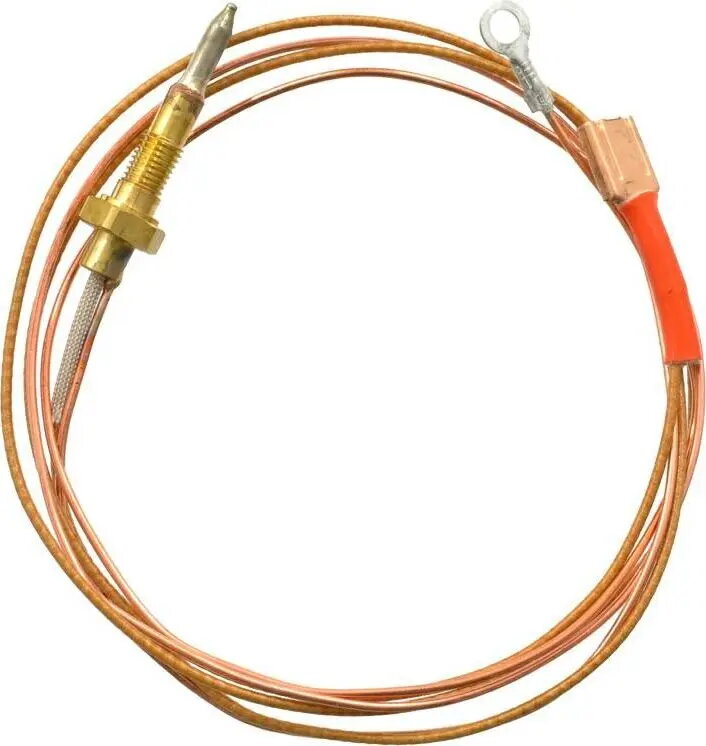

Double Thermocouple L750 with eyelet and slide connector — No name

The Double Thermocouple L750 with eyelet and slide connector is a temperature sensor assembly that integrates two sensing junctions into a single mounting unit. Each junction provides independent temperature measurement while sharing a common mounting tab (eyelet) and a slide/insert connector for electrical connection. The design is intended for installations that require monitoring of two nearby points or a redundant measurement for safety and control in heating systems, industrial equipment, laboratory apparatus and HVAC devices.

Advantages

This double thermocouple delivers two-point temperature sensing in a compact assembly that can be mounted using the integrated eyelet. The slide connector enables straightforward, tool-friendly electrical connection and replacement without soldering. The combined configuration reduces wiring complexity compared with separate sensors while offering the option to compare readings from two junctions or provide backup measurement for critical processes.

Suitable for

• Heater elements and kilns where two-point monitoring or redundancy is needed
• Industrial process equipment requiring local temperature feedback
• Laboratory setups that measure temperature at two positions within the same assembly
• HVAC systems with thermocouple inputs for control and safety monitoring

Key specifications

• Configuration: two sensing junctions in a single assembly
• Mounting: integrated eyelet (mounting tab) for mechanical attachment
• Electrical connection: slide/insert connector suitable for thermocouple wiring
• Intended use: temperature measurement and monitoring, with option for redundancy or differential comparison

How to use

Install the thermocouple by securing the eyelet to a stable surface using a screw or bolt appropriate to the installation environment. Route the thermocouple leads to the instrument or controller that accepts the matching thermocouple type and attach the slide connector to the corresponding input. Ensure correct polarity when connecting and verify that the controller is configured to read from the thermocouple type used. Position the sensing junctions so they contact or closely represent the measurement points for accurate readings.

Usage recommendations

For reliable operation, select cable and connector materials compatible with the operating temperature and environment, avoid mechanical strain on the leads, and perform routine verification against a calibrated reference. Where safety or process control depends on temperature limits, use the secondary junction as redundancy and schedule periodic checks to confirm consistent readings between both junctions.
