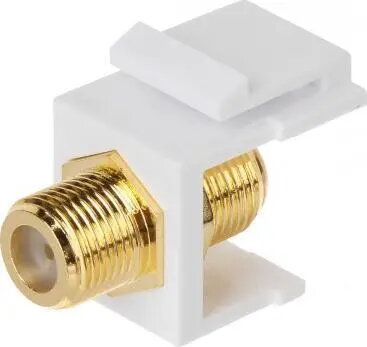

Keystone insert connector FX-F1C, no brand, model FX-F1C

The Keystone insert connector FX-F1C is a modular, snap-in housing designed for use with keystone wall plates and patch panels. It accepts standard keystone-format jacks and adapters, allowing installers to mount network, audiovisual or telephony modules into faceplates and panels quickly and consistently. The insert is intended to provide a stable mechanical interface and a clean finished appearance in structured cabling installations.

Advantages

This keystone insert offers a standardized form factor that simplifies module interchangeability and maintenance. Its snap-in design enables tool-free installation and removal in compatible faceplates and panels. The compact housing supports a wide range of keystone-format jacks and adapters, which helps reduce inventory complexity and makes upgrades or replacements straightforward.

Suitable for

• Residential and commercial wall plates for Ethernet, coax, HDMI or phone jacks
• Patch panels and surface-mount boxes using keystone modules
• AV cabinets and media plate installations where modular connectors are required

Key specifications

• Form factor: standard keystone module size compatible with keystone openings
• Mounting type: snap-in (tool-free) installation into keystone faceplates and panels
• Material: durable plastic construction suitable for indoor installations
• Finish: neutral color compatible with common faceplate designs
• Compatibility: accepts standard keystone-format jacks and adapters for network, AV and telephony

How to use

Push the keystone insert into a compatible keystone opening in a wall plate, patch panel or surface-mount box until it snaps into place and sits flush with the plate surface. Install the desired keystone-format jack or adapter into the insert from the front until it locks. To remove the module, press the retention tabs or release mechanism on the insert while pulling the module out. Ensure the faceplate or panel is mounted and secured before connecting cables.

Usage recommendations

For reliable performance, use this keystone insert with standard keystone jacks and faceplates that match the module dimensions. Avoid exposure to outdoor weather or direct sunlight. When installing network or AV connectors, follow relevant cabling and grounding practices and verify compatibility of the inserted jacks with the intended cables and devices.
