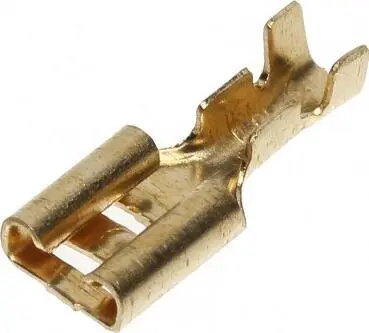

Connector female KSG-4.7/1.0*P100 No name — female crimp connector KSG-4.7/1.0*P100

Female crimp connector KSG-4.7/1.0*P100 is a metal electrical terminal designed for secure termination of stranded or solid conductors. It provides a reliable mechanical and electrical connection when crimped onto the conductor end and mated with a corresponding male plug. The connector is intended for use in wiring assemblies, equipment repairs and panel connections where a compact, removable female contact is required.

Advantages

This female crimp connector offers consistent contact pressure and low electrical resistance when properly crimped. Its compact axial profile allows for space-efficient installations and straightforward mating with compatible male terminals. Made for standard crimping tools, the design ensures repeatable terminations and improved strain relief compared with bare wire connections.

Suitable for

• Wire-to-wire and wire-to-equipment connections in electrical panels and control boxes
• Repair and replacement of female terminals in harnesses and assemblies
• Prototyping and small-scale electrical projects requiring removable connections

Key specifications

• Connector type: female crimp terminal
• Contact shape: receptacle for mating male plug
• Typical conductor range: suitable for small gauge conductors (crimp type contact)
• Material: metal contact intended for solderless crimp termination
• Finish: conductive plating to ensure low contact resistance (where applicable)
• Mounting style: inline cable termination for insertion into housings or mating plugs

How to use

Strip the conductor to the appropriate length for this type of terminal, insert the bare conductor into the contact barrel and use a compatible crimping tool to compress the barrel onto the conductor. Verify a solid mechanical bite and that the conductor is held firmly by a pull test. After crimping, mate the female connector with the corresponding male plug, ensuring correct orientation and full engagement for reliable electrical contact.

Usage recommendations

Use the connector with the recommended conductor cross-section and a quality crimping tool to ensure electrical continuity and mechanical stability. Avoid using the connector on undersized or excessively large wires. For environments with corrosive atmospheres or high humidity, consider additional protection such as insulating sleeves or sealed housings.
