Power Supply Module No name PZD-L7805 — DC voltage regulator module (PZD-L7805)

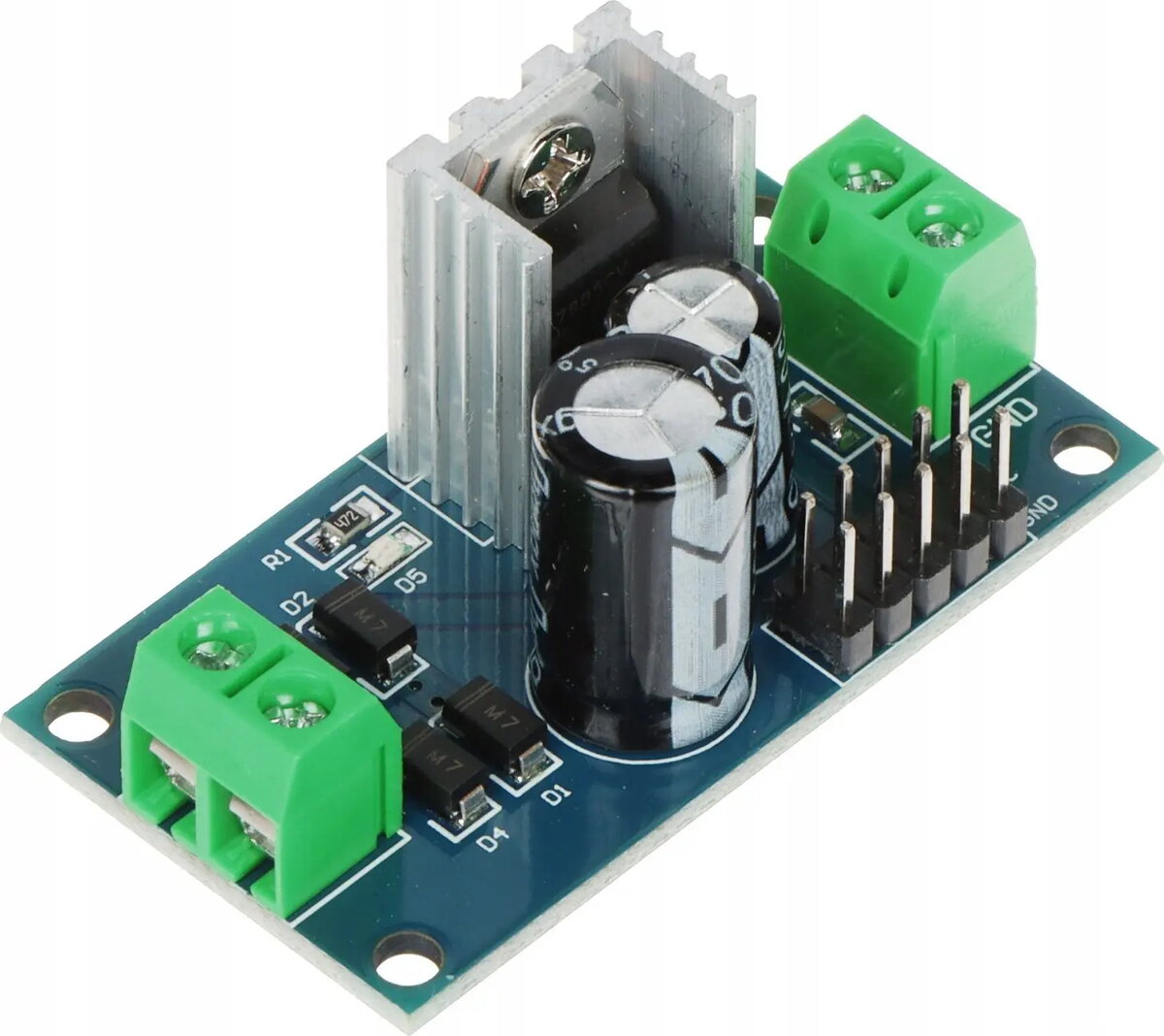

The PZD-L7805 power supply module by No name is a compact DC voltage regulator module engineered to provide a stable 5V output for electronics projects and prototyping. Designed for integration into electronic circuits, this module delivers constant low-voltage DC suitable for microcontrollers, sensors, small peripherals, and other low-power devices that require a reliable regulated supply.

Advantages

This DC voltage regulator module offers a compact form factor that simplifies placement on breadboards and PCBs while reducing wiring complexity. It provides a steady 5V output that helps protect connected components from fluctuations in input voltage. The module’s straightforward design enables quick installation and integration into existing circuits without the need for external complex circuitry.

Suitable for

• Powering microcontroller boards and development kits that require a 5V supply
• Supplying sensors, modules, and small actuators in prototyping setups
• Replacing or adding a regulated 5V rail on custom PCBs and electronic assemblies
• Laboratory benches and hobby electronics where a compact regulator is needed

Key specifications

• Output voltage: regulated 5V DC
• Intended use: low-voltage DC regulation for electronics circuits
• Form factor: compact module suitable for breadboard or PCB mounting
• Typical applications: prototyping, microcontroller power, sensor modules

How to use

Connect the module’s input to an appropriate DC source with sufficient headroom above 5V as required for regulation, observing correct polarity. Attach the regulated 5V output to the load or circuit requiring stable power. Ensure input and output connections are secured and verify voltage with a multimeter before connecting sensitive components. Mount the module on a stable surface or PCB, keeping it away from high-temperature sources and providing adequate ventilation if enclosed.

Usage recommendations

For reliable operation, use a DC input voltage within the module’s acceptable range and verify current requirements of connected devices do not exceed the module’s capacity. Add decoupling capacitors on the input and output if the application involves significant transient currents or long supply lines. Avoid exposing the module to excessive heat or moisture and follow standard ESD precautions when handling.
