header-product DC-DC converter No name TMR 6-1212, 6 W, input 9–18 V, output 12 V 500 mA, 9.1×11.2×21.8 mm
44.99 €

DC-DC converter No name TMR 6-1212, 6 W, input 9–18 V, output 12 V 500 mA, 9.1×11.2×21.8 mm

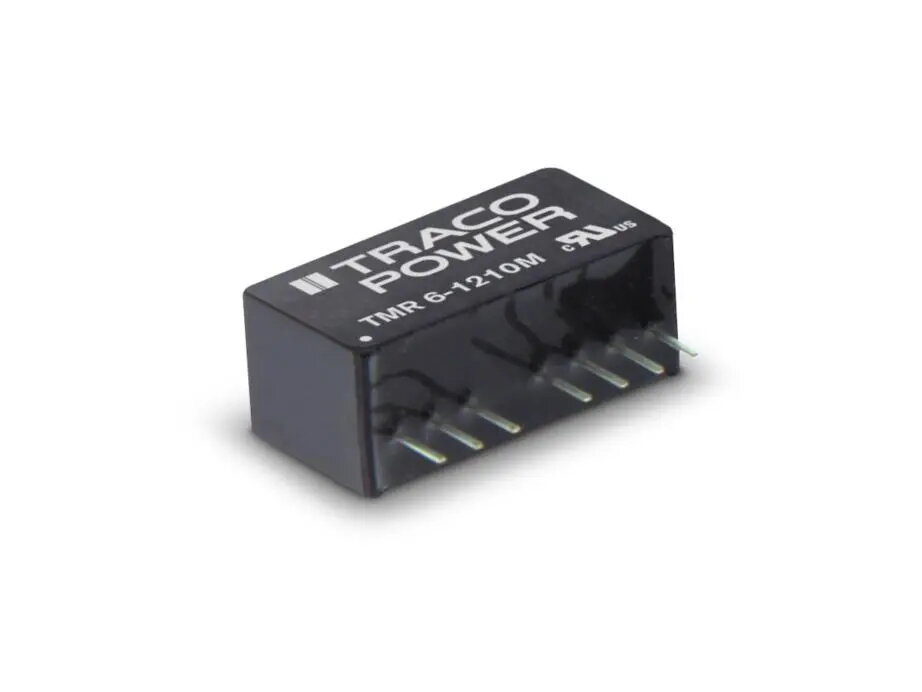

DC-DC converter No name TMR 6-1212 6 W Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

DC-DC converter No name TMR 6-1212, 6 W, input 9–18 V, output 12 V 500 mA, 9.1×11.2×21.8 mm

{{email}}
You keep track of price changes

DC-DC converter No name TMR 6-1212, 6 W, input 9–18 V, output 12 V 500 mA, 9.1×11.2×21.8 mm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Compact DC-DC converter No name TMR 6-1212 with 6 W output power. Operates from a 9–18 V DC input and provides a regulated 12 V output at up to 500 mA. Small board-mount module with dimensions 9.1 × 11.2 × 21.8 mm, suitable for embedded systems, industrial control, instrumentation and power supplies for small electronics.
Available for order: 1 pcs.
Warranty: 2 Years
SKU: 11793772
Manufacturer: No name
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
21.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The No name TMR 6-1212 is an ultra-compact isolated DC-DC converter module delivering 6 W of regulated output power. Designed to operate from a wide 9–18 V DC input, the module provides a stable 12 V output at up to 500 mA. Packaged in a SIP-8 plastic housing with a footprint of just 2.0 cm² and overall dimensions of 9.1 × 11.2 × 21.8 mm, this board-mount converter is targeted at embedded systems, industrial control equipment, instrumentation and other space-constrained electronics that require galvanic isolation and reliable regulation.

Advantages

The TMR 6-1212 offers a wide 2:1 input voltage range, built-in remote On/Off control and continuous short-circuit protection, providing dependable operation in variable-voltage environments. Its isolated output ensures separation between input and output grounds, improving safety and reducing noise coupling in mixed-signal and industrial applications. The extremely small SIP-8 package minimizes PCB area usage while delivering a regulated 12 V rail, making the module suitable for compact power supply designs.

Suitable for

  • Embedded systems and microcontroller-based devices requiring isolated 12 V
  • Industrial control modules and instrumentation with limited PCB area
  • Power supplies for small sensors, actuators and communication modules
  • Battery-powered systems or vehicles operating in the 9–18 V range

Key specifications

  • Output power: 6 W
  • Input voltage range: 9–18 V DC
  • Output voltage: 12 V DC, regulated
  • Maximum output current: 0.5 A (500 mA)
  • Isolation: isolated input-to-output
  • Protection: continuous short-circuit protection
  • Control: remote On/Off function
  • Package: SIP-8 plastic module
  • Board footprint: approx. 2.0 cm²
  • Dimensions: 9.1 × 11.2 × 21.8 mm

How to use

Mount the SIP-8 module onto the PCB following recommended footprint and pinout guidelines from the manufacturer. Apply a DC input within the 9–18 V range to the input pins and observe correct polarity. Use the remote On/Off pin to enable or disable the output as required by the system design. Ensure proper thermal conditions and keep ambient temperature within the module's specified operating range. For applications requiring reliable isolation, wire input and output grounds separately and observe creepage and clearance distances on the PCB.

Usage recommendations

For stable long-term operation, allow adequate airflow around the module and avoid exposing it to temperatures beyond the specified limits. Use decoupling capacitors at input and output if recommended by the manufacturer, and verify the short-circuit protection behavior during design validation. When integrating into systems that demand low conducted or radiated emissions, follow PCB layout best practices and add filtering as needed.

Specifications

Weight:
0.0048 kg
Product colour:
Black
All features
Power:
6 W
Output current:
500 mA
DC input voltage:
9-18

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-55 - 125
Operating temperature (T-T):
-40 - 80

Technical details

Sustainability compliance:
Yes
Compliance certificates:
RoHS

Other features

Type:
DC/DC
Material:
Copper, Silicone, Nickel
Quantity:
1

Weight & dimensions

Weight:
0.0048 kg
Height:
21.8 mm
Width:
9.1 mm
Depth:
11.2 mm

Power

Output voltage:
12

Design

Product colour:
Black
