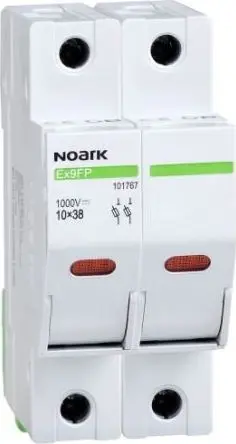

Fuse base Noark EX9FP 2P 30A (model 101767)

Fuse base Noark EX9FP 2P 30A is a two-pole fuse holder designed to accept compatible cartridge fuses rated at 30 A. Manufactured for electrical distribution and circuit protection, this fuse base provides a stable mechanical mounting and reliable electrical contact for fuses in panels, control cabinets and equipment. The compact two-pole configuration allows installation in confined spaces while maintaining separation between live conductors.

Advantages

The fuse base offers secure clamping and consistent contact pressure for predictable overcurrent protection performance. Constructed from materials suitable for electrical applications, the holder ensures insulation and resistance to heat generated under normal operating currents. Its two-pole layout simplifies wiring for single-phase circuits that require fused protection of two conductors. The design supports easy fuse replacement and maintenance without the need to disconnect permanent wiring.

Suitable for

• Control cabinets and switchboards in industrial environments
• Protection of motors and machinery circuits requiring 30 A fuses
• Electrical distribution panels in commercial and residential installations
• Equipment and devices that use cartridge-style fuses for overcurrent protection

Key specifications

• Poles: 2 (two-pole fuse holder)
• Rated current: 30 A
• Fuse type compatibility: cartridge-style fuses rated for 30 A
• Mounting: panel or equipment mounting suitable for distribution and control cabinets
• Contact material: conductive metal contacts designed for secure electrical connection
• Insulation: non-conductive housing material suitable for standard electrical applications

How to use

Install the fuse base in the panel or enclosure following local electrical codes and standard installation practices. Secure the holder mechanically and connect supply and load conductors to the designated terminals, ensuring correct tightening torque for safe contact. Insert a compatible 30 A cartridge fuse into the holder until it seats fully. Verify correct polarity and conductor separation as required by the circuit. When replacing fuses, remove power to the circuit before opening the holder and use the appropriate fuse rating for the application.

Usage recommendations

Use the fuse base with cartridge fuses that match the required time-current characteristics and 30 A rating for the protected circuit. Ensure installation and maintenance are performed by qualified personnel and comply with applicable standards and regulations. Check connections periodically for tightness and signs of overheating, and replace any components that show wear or damage.
