header-product Heatsink/Radiator Noctua NH-L12SX77 12 cm Beige Nickel 450-1850 RPM
104.99 €

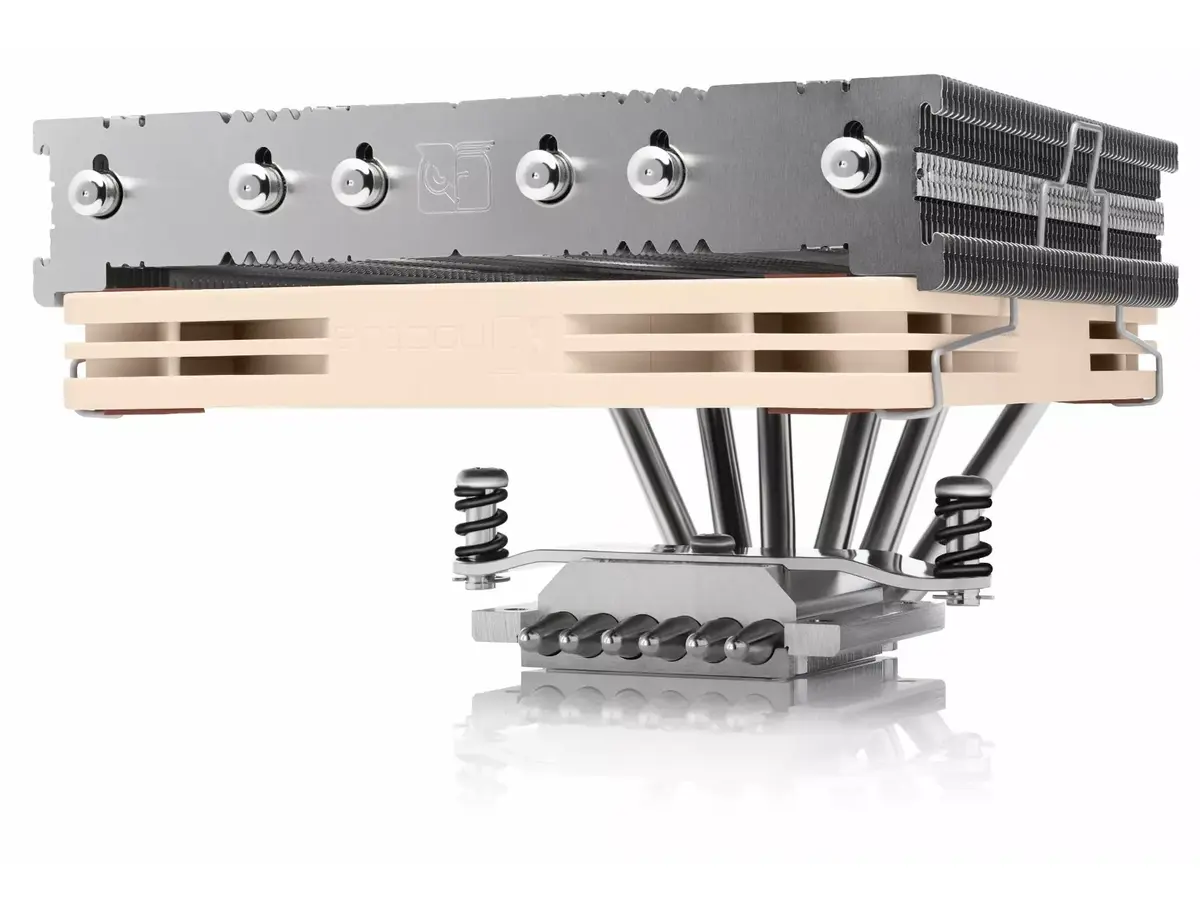

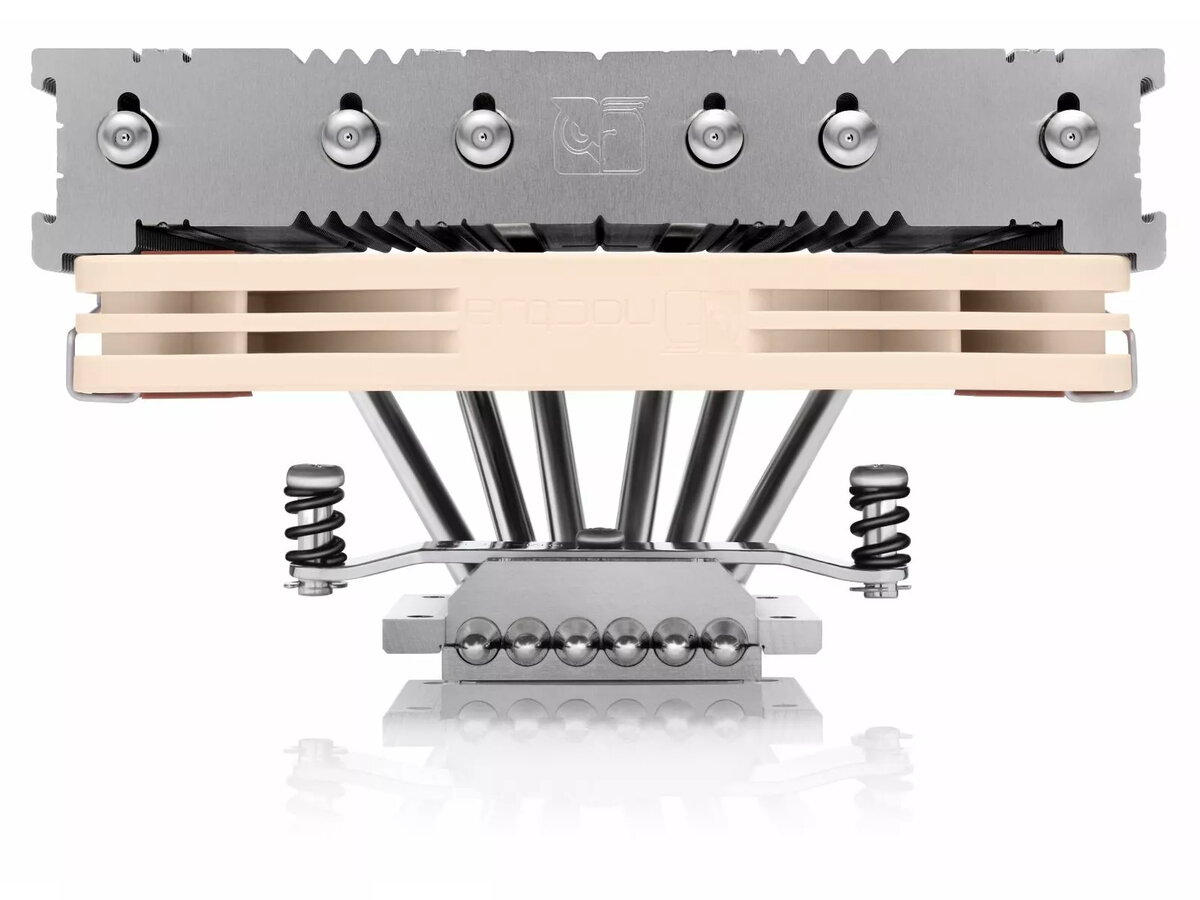

Heatsink/Radiator Noctua NH-L12SX77 12 cm Beige Nickel 450-1850 RPM

Heatsink Noctua NH-L12SX77 Photo 1
Heatsink Noctua NH-L12SX77 Photo 2
Heatsink Noctua NH-L12SX77 Photo 3
Heatsink Noctua NH-L12SX77 Photo 4
Heatsink Noctua NH-L12SX77 Photo 5
Heatsink Noctua NH-L12SX77 Photo 6
Heatsink Noctua NH-L12SX77 Photo 1
Heatsink Noctua NH-L12SX77 Photo 2
Heatsink Noctua NH-L12SX77 Photo 3
Heatsink Noctua NH-L12SX77 Photo 4
Heatsink Noctua NH-L12SX77 Photo 5
Heatsink Noctua NH-L12SX77 Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Heatsink/Radiator Noctua NH-L12SX77 12 cm Beige Nickel 450-1850 RPM

{{email}}
You keep track of price changes

Heatsink/Radiator Noctua NH-L12SX77 12 cm Beige Nickel 450-1850 RPM

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Noctua NH-L12SX77 is a compact heatsink with a 12 cm fan, offering a rotational speed range of 450 to 1850 RPM. It operates at a noise level of 23.9 dB and provides an airflow of 94.2 m³/h. This heatsink is designed for efficient cooling, featuring a self-stabilizing oil-pressure bearing for durability. Its dimensions are 128 mm in width, 131 mm in depth, and 77 mm in height, making it suitable for various computer builds.
Available at price 104.99 €: 5 pcs.
Total available for order: 17 pcs.
Warranty: 2 Years
SKU: 10920776
Manufacturer: Noctua
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 35 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 2.92 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Noctua NH-L12Sx77 is a compact low-profile CPU heatsink with a 120mm slim fan that balances strong cooling performance and compatibility for small form factor (SFF) builds. At 77mm height and featuring six heatpipes, it delivers improved thermal headroom compared with the original NH-L12S while maintaining the fan-under-fin-stack orientation to exhaust hot air directly through perforated case panels. The package includes the NF-A12x15 slim 120mm PWM fan (450–1850 RPM), Noctua’s NT-H2 thermal compound, SecuFirm2™ multi-socket mounting system and compatibility options for a wide range of Intel and AMD sockets, plus a 6-year manufacturer’s warranty.

Advantages

The NH-L12Sx77 offers enhanced cooling capacity thanks to six heatpipes and a high-efficiency NF-A12x15 slim fan, while remaining compact enough for many SFF/SFX cases. Its fan-under-fin orientation helps exhaust hot air directly and reduces intake turbulence noise. Soldered fins ensure long-term thermal contact, and the included NT-H2 compound and SecuFirm2™ mounting system simplify installation and improve thermal performance. The cooler supports both default low-profile and high-clearance configurations to accommodate tall RAM or chipset coolers.

Suitable for

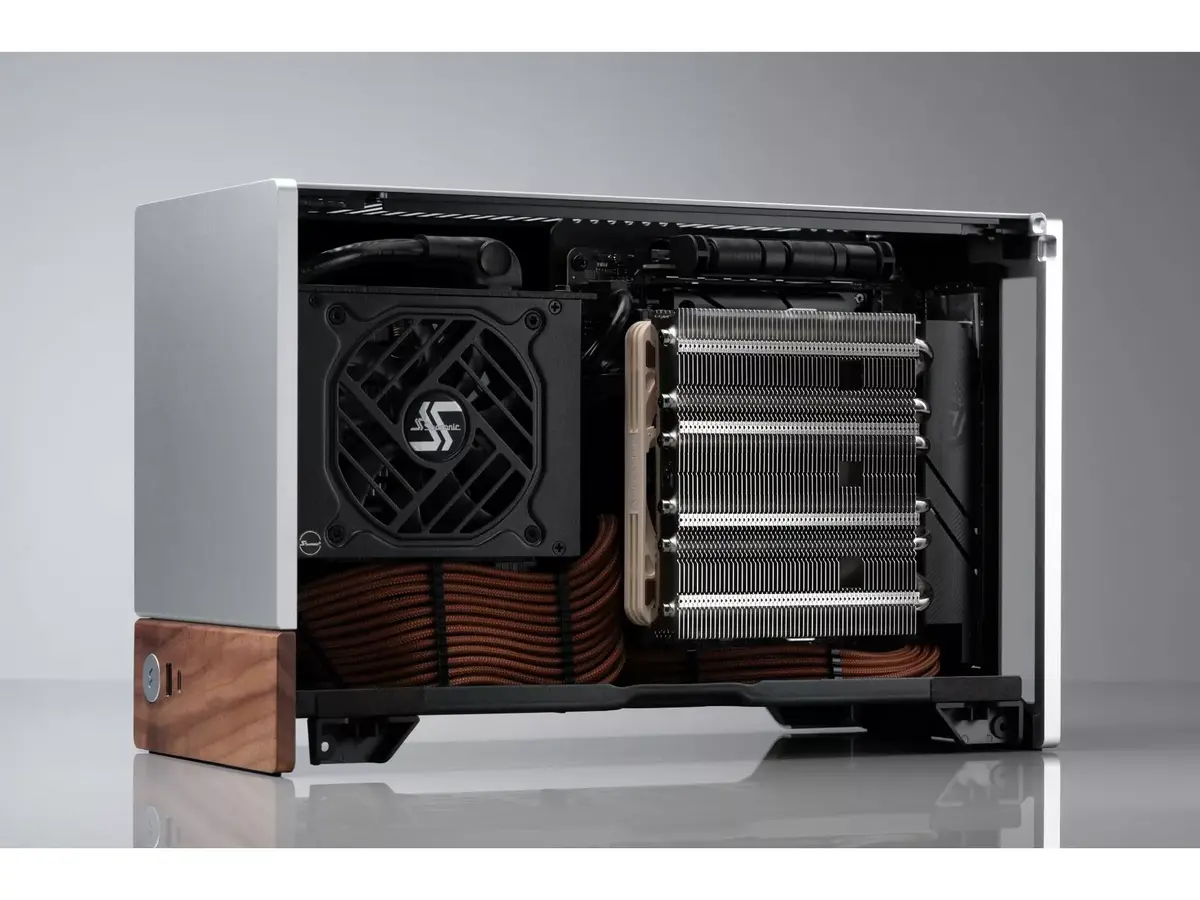

  • Small form factor (SFF/SFX) builds with limited height (cases like Fractal Design Terra, SilverStone Milo ML12, Louqe Raw S1)
  • Compact desktops that need better cooling for high-performance CPUs with aggressive turbo modes
  • Systems requiring improved motherboard and RAM clearance (up to 44mm in default orientation, up to 56mm in high-clearance mode)
  • Users who want a quiet PWM-controlled 120mm slim fan with LNA option

Key specifications

  • Model: Noctua NH-L12Sx77 (MPN: NH-L12Sx77, EAN: 9010018000504)
  • Dimensions (W×D×H): 128 × 131 × 77 mm (default configuration)
  • Fan: NF-A12x15 slim 120mm PWM (450–1850 RPM, Low-Noise Adaptor reduces max to 1400 RPM)
  • Airflow / noise: 94.2 m³/h / 23.9 dB (manufacturer data)

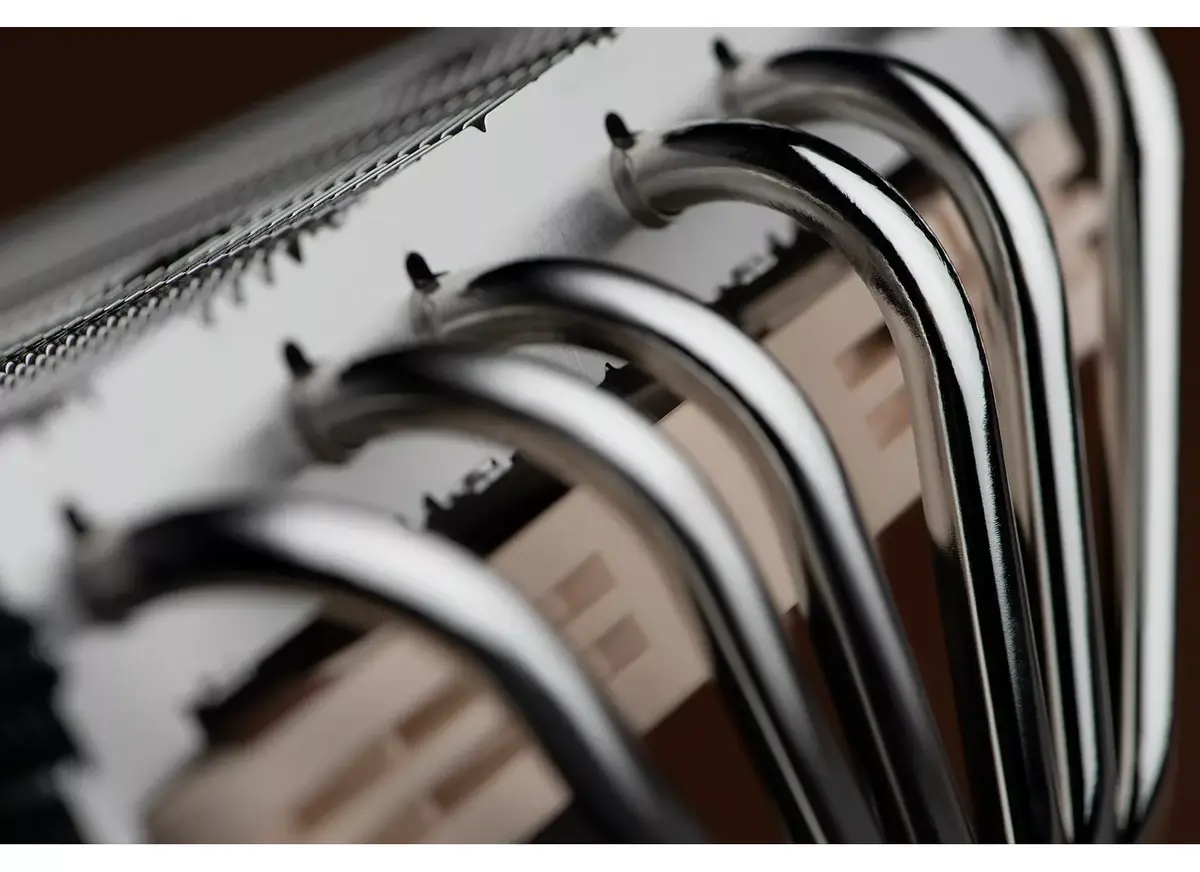

  • Heatpipes: 6 heatpipes, soldered fins
  • RAM clearance: 44 mm (standard), up to 56 mm in high-clearance mode
  • Socket support: Intel LGA1851, LGA1700, LGA1200, LGA115x; AMD AM5, AM4. Optional free upgrade kits available for older sockets (LGA20xx, LGA1366, LGA775) where applicable

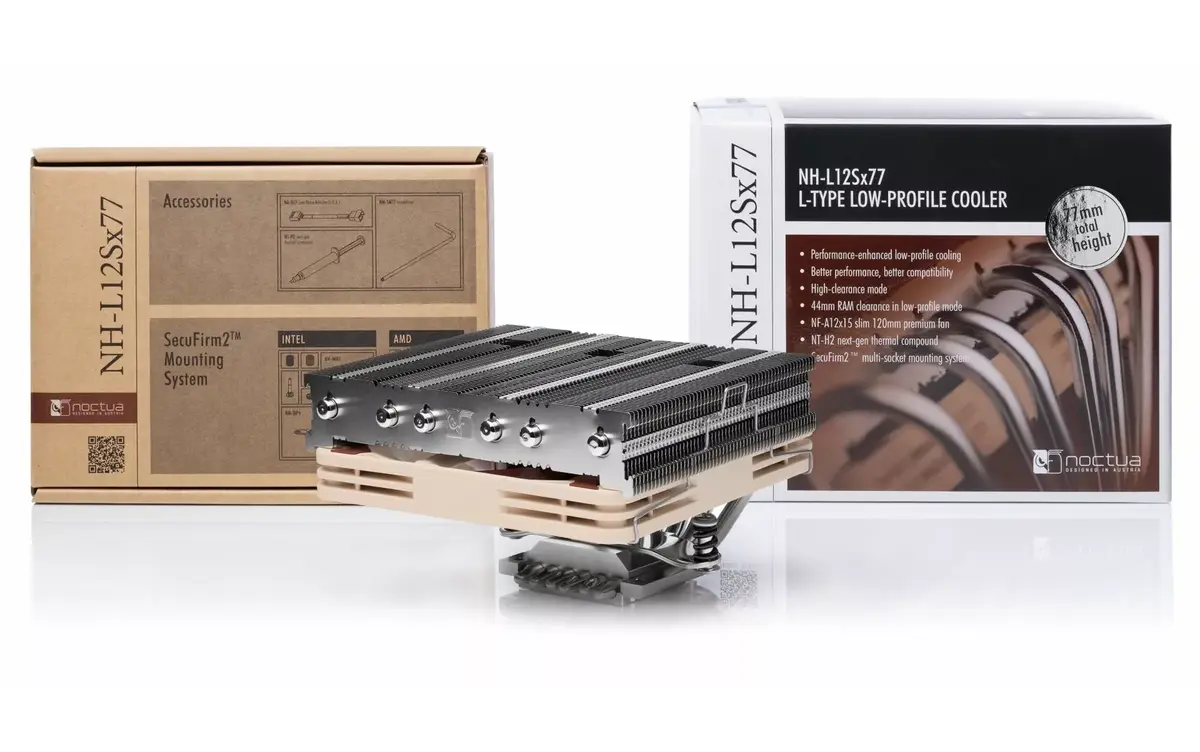

  • Included: NF-A12x15 fan, SecuFirm2™ mounting, NT-H2 thermal compound, Low-Noise Adaptor, fan clips for 25mm fans
  • Warranty: 6 years

How to use

Install the NH-L12Sx77 using the supplied SecuFirm2™ mounting kit following the motherboard-specific instructions included in the package. Apply a thin, even layer of the supplied NT-H2 thermal compound to the CPU heatspreader before seating the heatsink. The fan is pre-installed underneath the fin stack for exhaust airflow; optionally move the fan on top of the fins to enable high-clearance mode or replace it with a 25mm 120mm fan for increased performance (this increases overall cooler height to 102mm). Connect the fan to a motherboard PWM header to allow automatic speed control.

Usage recommendations

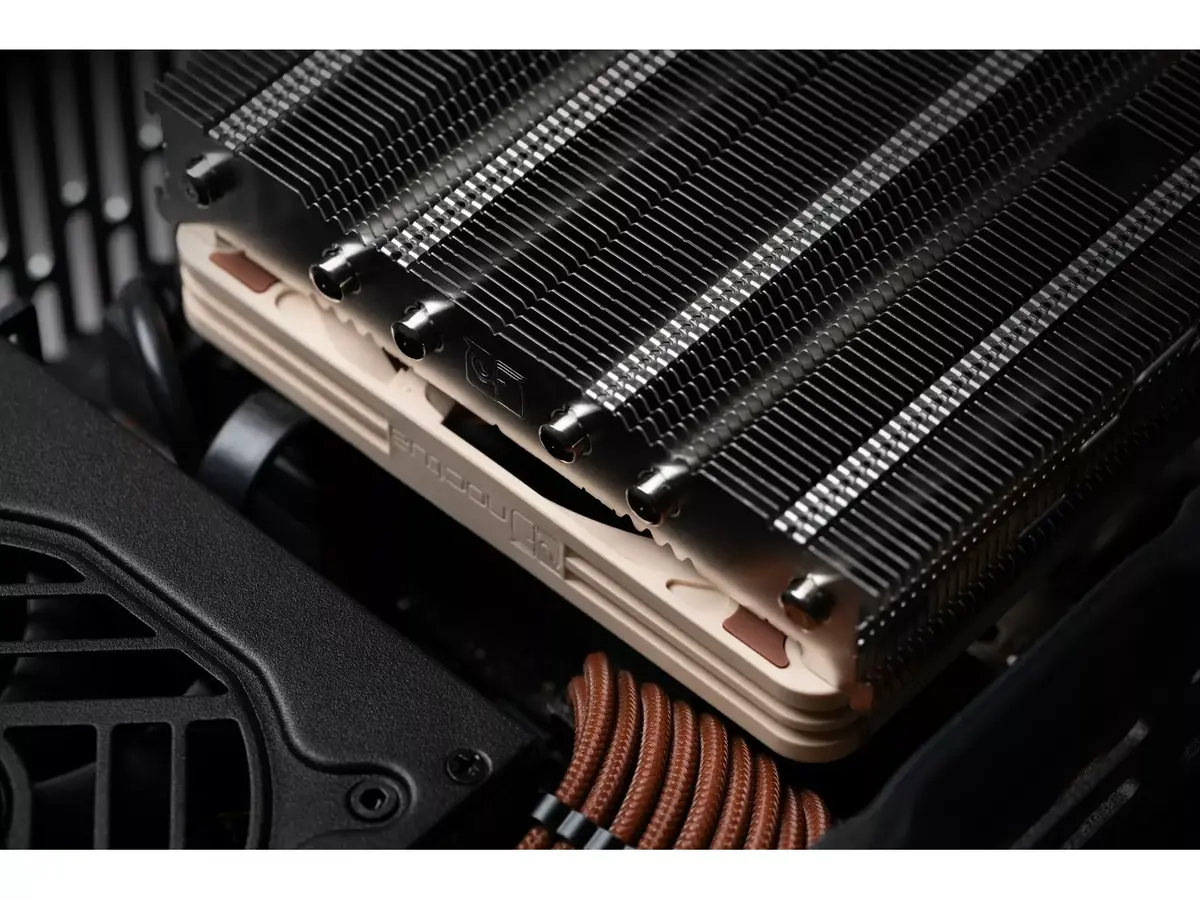

Use the default fan-under-fin orientation in compact cases with perforated panels above the CPU to exhaust hot air directly. Switch to high-clearance mode (fan on top) if you need extra clearance for tall RAM modules or chipset coolers. Use the Low-Noise Adaptor to limit maximum fan speed when quieter idle operation is preferred.
All features
Type:
Heatsink/Radiatior
Weight:
0.52 kg
Mean time between failures (MTBF):
150000 h
Package weight:
1090 g
Material:
Aluminium, Copper, Nickel
Power supply:
1.56 W
Height:
77 mm
Width:
128 mm
Depth:
131 mm
Product colour:
Beige, Nickel
Compatible processor series:
Intel Pentium, AMD A, Intel Celeron
Package depth:
139 mm
Package height:
146 mm
Package width:
182 mm
Number of fans:
1 fan(s)
Voltage:
12
Airflow:
94.2 m³/h
Fan diameter:
120 mm
Supported processor sockets:
LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, LGA 2011 (Socket R), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H)
Suitable location:
Processor
Maximum air pressure:
1.53 mmH2O
Noise level (high speed):
23.9 dB
Fan connector:
4-pin
Fan dimensions (W x D x H):
120 x 15 x 120
Rotational speed (max):
1850 RPM
Rotational speed (min):
450 RPM
Bearing type:
Self-Stabilising Oil-pressure Bearing (SSO)
Quantity per pack:
1 pc(s)
Pulse-width modulation (PWM) support:
Yes
Fins material:
Aluminium
Warranty period:
6 year(s)

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
EU16 5 09.07.2026 Best delivery 104.99 € Best price
WH357 6 15.07.2026 129.49 €
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH109 6 23.07.2026 115.99 €
104.99 €
Stock: 5
Delivery Date: 09.07.2026 Best delivery
Warehouse: EU16
129.49 €
Stock: 6
Delivery Date: 15.07.2026
Warehouse: WH357
Available only for legal entities
115.99 €
Stock: 6
Delivery Date: 23.07.2026
Warehouse: WH109

Customer reviews

Customer questions

FAQ

How much does the Heatsink Noctua NH-L12SX77 cost, and is it available for purchase?

The price is 104.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 17 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 09.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment. All transactions are 100% secure and encrypted.

Can Heatsink Noctua NH-L12SX77 be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the Heatsink Noctua NH-L12SX77 online, and the application process is as simple as possible:
  • Select the product on the website and add it to your cart;
  • When placing your order, choose the payment method “Installments”;
  • Fill in the required details for the lending partner;
  • Receive a decision within a few minutes.
For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Noctua products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Noctua service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

Where can I download the instructions for Heatsink Noctua NH-L12SX77?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
