header-product CPU cooler Noctua NH-U12S TR4-SP3, single 120 mm fan, for AMD TR4/SP3 sockets, 158×125×71 mm, 870 g
109.49 €

CPU cooler Noctua NH-U12S TR4-SP3, single 120 mm fan, for AMD TR4/SP3 sockets, 158×125×71 mm, 870 g

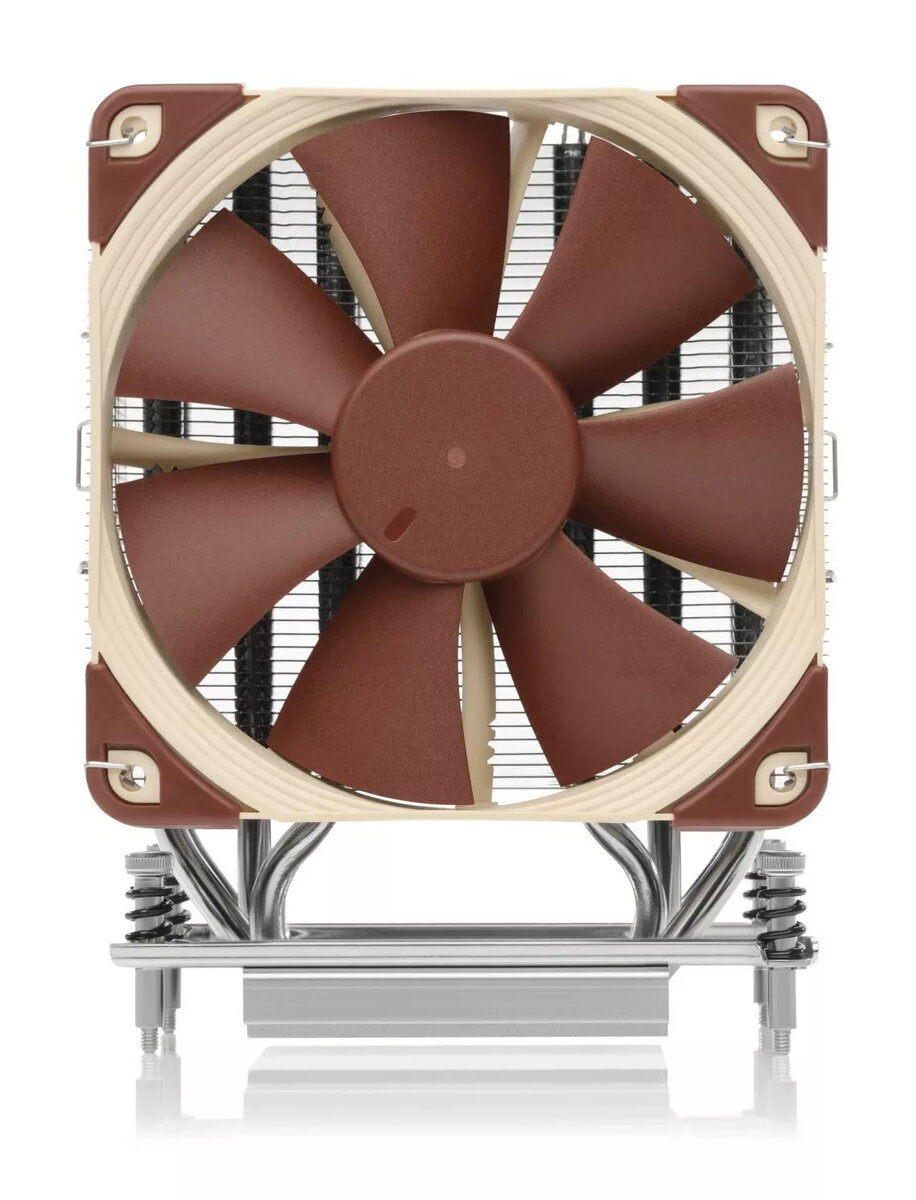

Noctua NH-U12S TR4-SP3 CPU cooler Photo 1

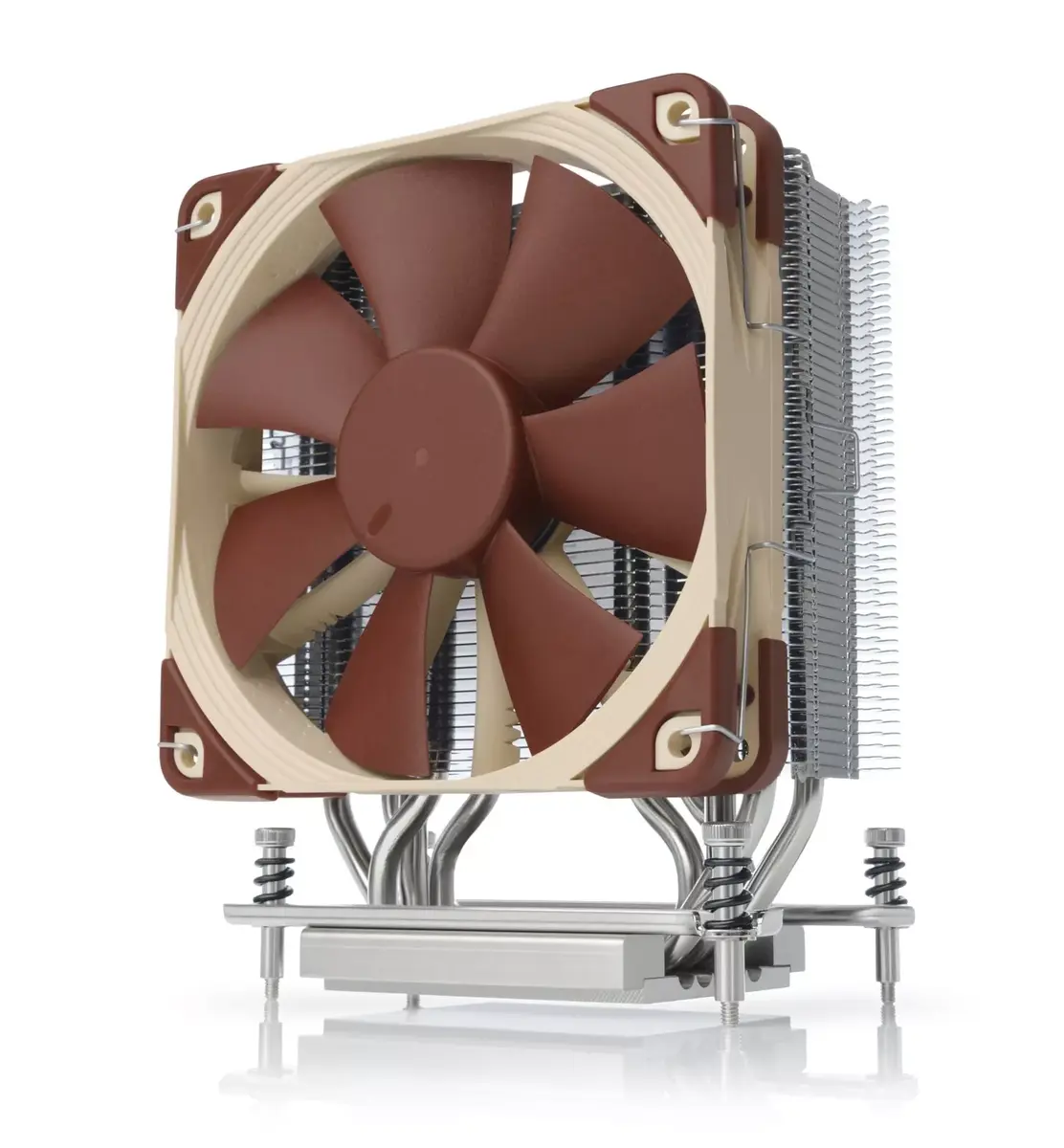

Noctua NH-U12S TR4-SP3 CPU cooler Photo 2

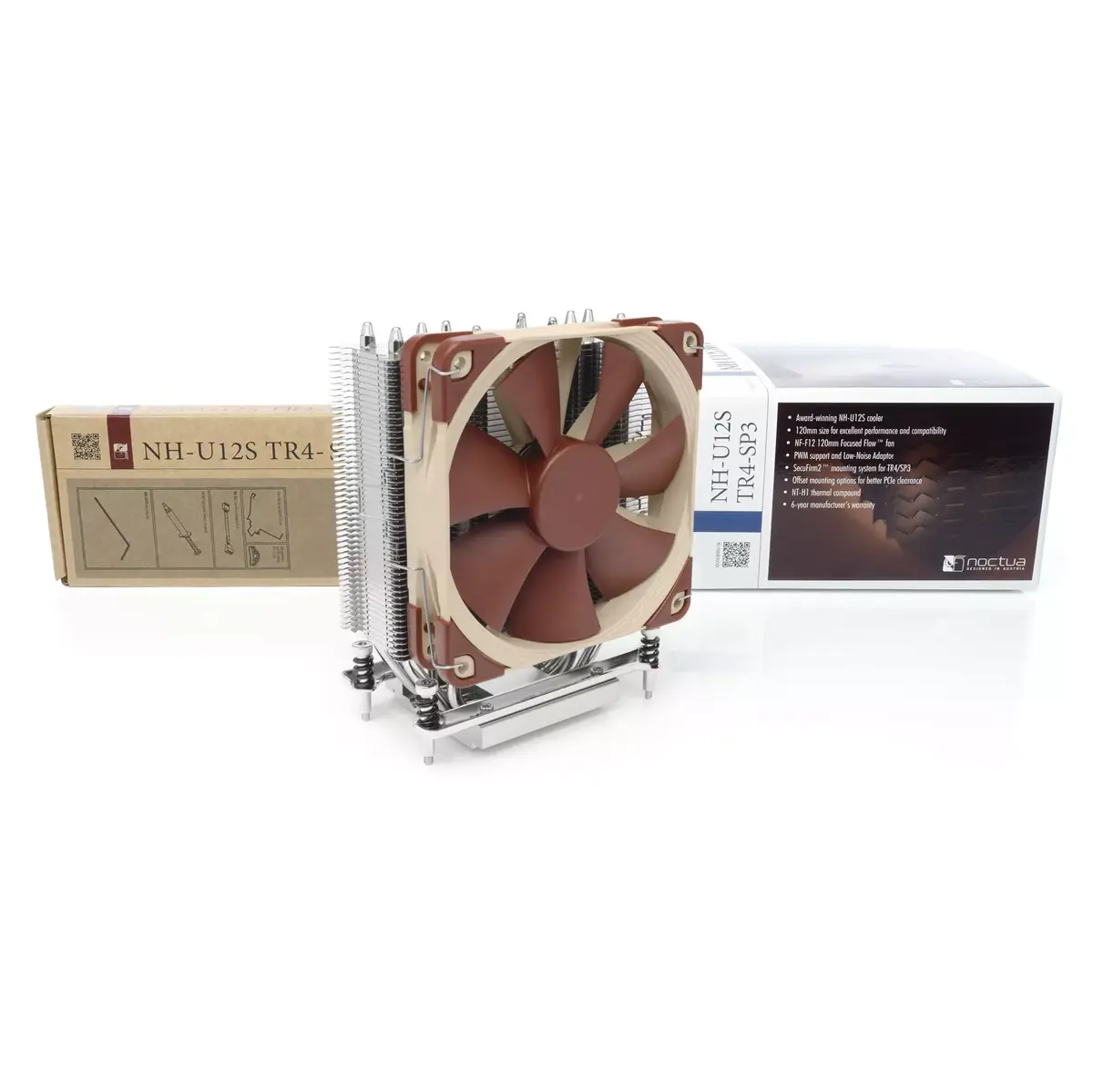

Noctua NH-U12S TR4-SP3 CPU cooler Photo 3

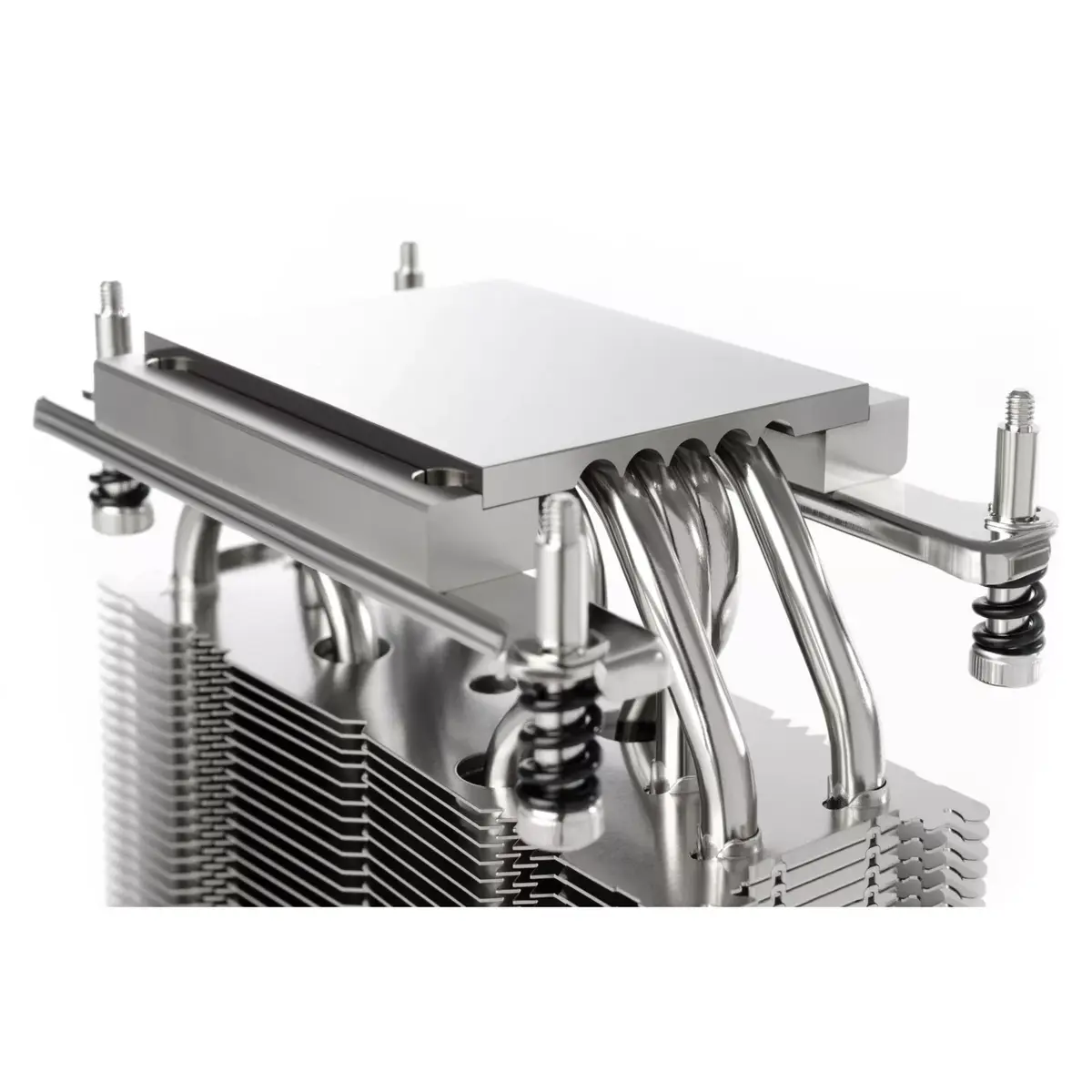

Noctua NH-U12S TR4-SP3 CPU cooler Photo 4

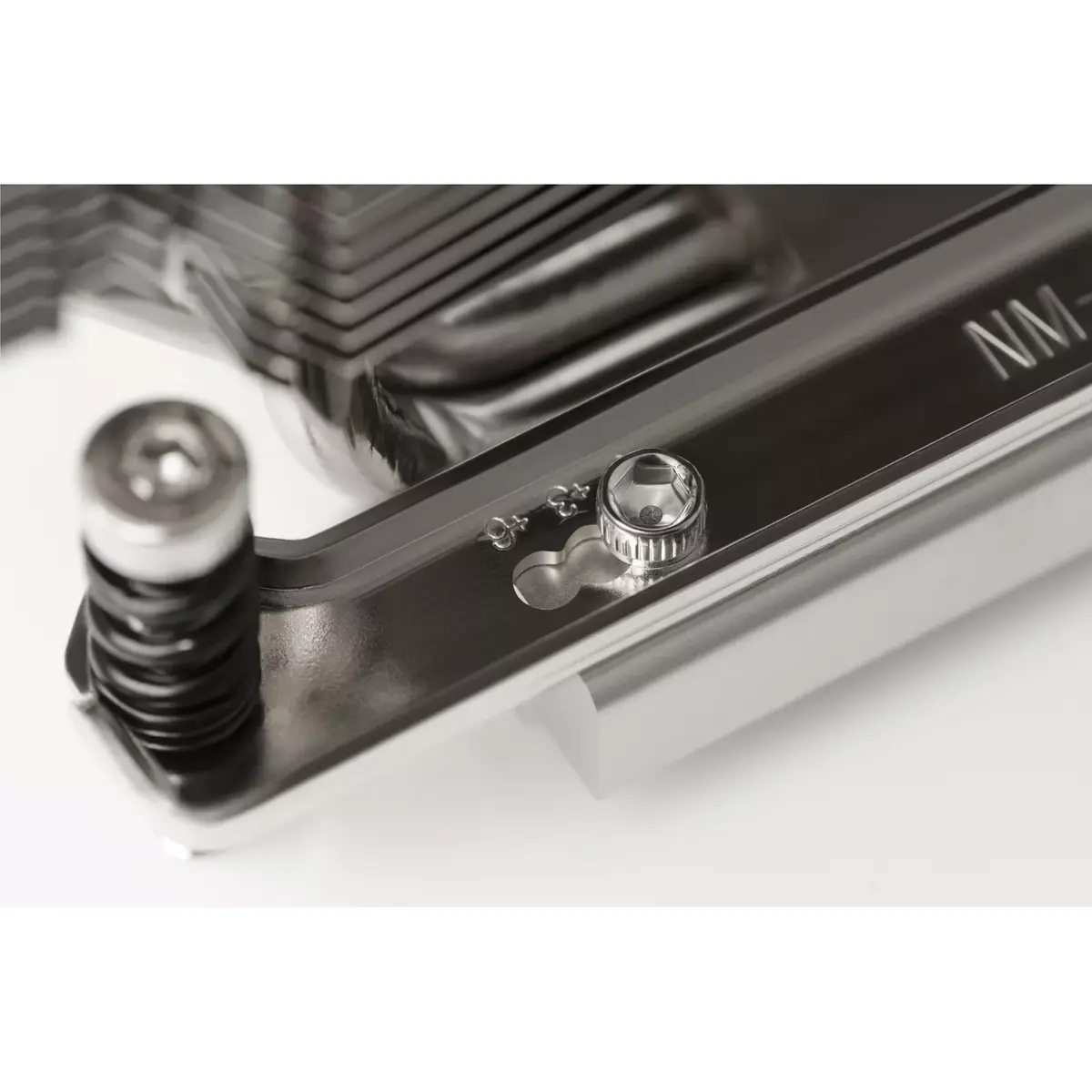

Noctua NH-U12S TR4-SP3 CPU cooler Photo 5
Noctua NH-U12S TR4-SP3 CPU cooler Photo 1
Noctua NH-U12S TR4-SP3 CPU cooler Photo 2
Noctua NH-U12S TR4-SP3 CPU cooler Photo 3
Noctua NH-U12S TR4-SP3 CPU cooler Photo 4
Noctua NH-U12S TR4-SP3 CPU cooler Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

CPU cooler Noctua NH-U12S TR4-SP3, single 120 mm fan, for AMD TR4/SP3 sockets, 158×125×71 mm, 870 g

{{email}}
You keep track of price changes

CPU cooler Noctua NH-U12S TR4-SP3, single 120 mm fan, for AMD TR4/SP3 sockets, 158×125×71 mm, 870 g

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Noctua NH-U12S TR4-SP3 is a single-fan CPU cooler designed for AMD TR4 and SP3 sockets. It has a 120×120×25 mm PWM fan (300–1500 RPM) with SSO bearing, 93.4 m³/h airflow (74.3 m³/h with LNA), noise from 18.6 to 22.4 dB and 0.6 W power draw. The heatsink combines copper base and aluminium fins (125×45×158 mm, 695 g). Suitable for workstation/server Ryzen CPUs, it provides reliable air cooling with low noise.
Available for order: 3 pcs.
Warranty: 2 Years
SKU: 1001375
Manufacturer: Noctua
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
13.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.25 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
13.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 36.5 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 3.04 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Noctua NH-U12S TR4-SP3 is a 120mm single-tower CPU cooler specifically adapted for AMD TR4 and SP3 platforms (Ryzen Threadripper / Epyc). It pairs a slim heatsink with five heatpipes and the NF-F12 PWM 120mm fan to deliver efficient heat dissipation while keeping a compact footprint (125 × 71 × 158 mm). The TR4‑SP3 variant features an enlarged 70 × 56 mm copper contact surface and the SecuFirm2 mounting system designed for large IHS processors, and is supplied with Noctua’s NT-H1 thermal compound and a six-year manufacturer’s warranty.

Advantages

The NH-U12S TR4-SP3 provides strong cooling performance in a 120mm form factor that preserves compatibility with most tower cases and keeps clearance for the top PCIe slot on many motherboards. The custom TR4/SP3 base plate improves heat transfer from large Threadripper/Epyc IHS designs. The NF-F12 Focused Flow fan offers high static pressure and quiet operation, PWM support enables automatic speed control, and a Low-Noise Adaptor reduces maximum RPM for quieter use. Included accessories allow installation of a second fan in push/pull configuration and anti-vibration pads improve acoustics.

Suitable for

  • Workstations and desktops using AMD Socket TR4 or SP3 processors (Ryzen Threadripper / Epyc)
  • High-performance single-CPU systems where case space above the CPU is limited
  • Builds requiring a low-noise cooling solution with PWM fan control

Key specifications

  • Type: Cooler (120 mm single-tower)
  • Fan diameter: 120 mm (NF-F12 PWM)
  • Fan speed: 300–1500 RPM (with Low-Noise Adaptor reducing max to 1200 RPM)
  • Airflow: 93.4 m³/h
  • Bearing type: Self‑Stabilising Oil-pressure Bearing (SSO)
  • Contact plate size (TR4/SP3): 70 × 56 mm
  • Dimensions (W × D × H): 125 × 71 × 158 mm
  • Weight: 0.87 kg
  • Supported sockets: TR4, SP3
  • Included: NF-F12 fan, SecuFirm2 TR4/SP3 mounting kit, NT-H1 thermal compound, fan clips, anti-vibration pads
  • Warranty: 6 years

How to use

Apply a small, even amount of the supplied NT-H1 thermal compound to the processor IHS according to the thermal paste instructions. Mount the NH-U12S TR4-SP3 heatsink using the SecuFirm2 TR4/SP3 mounting system: position the cooler on the socket, secure the four spring-loaded screws evenly in a cross pattern until snug. Connect the NF-F12 PWM fan to the motherboard CPU_FAN header for automatic speed control. If desired, fit the optional second NF-F12 fan using the supplied clips and offset pads to create a push/pull configuration.

Usage recommendations

To maintain optimal acoustic and thermal performance, ensure the cooler is installed with sufficient case airflow and verify clearance with tall RAM modules and the top PCIe slot. Use the Low-Noise Adaptor for quieter operation when full fan speed is not required, and follow Noctua’s torque guidance when tightening the SecuFirm2 screws.

Specifications

Type: Characteristics of the device.
Cooler
Product colour: The colour e.g. red, blue, green, black, white.
Aluminium, Beige
Suitable location: Locations in which the product can be used.
Processor
All features

Logistics data

Products per master (outer) case:
10 pc(s)
Master (outer) case gross weight:
13600 g
Harmonized System (HS) code:
84733080

Other features

Mean time to failure (MTTF):
150000 h
Heatsink dimensions (W x D x H):
125 x 45 x 158

Packaging content

Low-noise adaptor (LNA):
Yes

Weight & dimensions

Package weight: Weight of the packaged product.
1260 g
Package height: The distance from the top to the bottom of the packaging.
196 mm
Package depth: The distance from the front to the back of the packaging.
106 mm
Package width: The distance from one side of the packaging to the other.
212 mm
Heatsink weight:
695 g
Fan dimensions (W x D x H):
120 x 120 x 25
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.87 kg
Height: The measurement of the product from head to foot or from base to top.
158 mm
Depth: The distance from the front to the back of something.
71 mm
Width: The measurement or extent of something from side to side.
125 mm

Power

Voltage:
12
Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
0.6 W

Design

Fan connector:
4-pin
Fins material:
Aluminium
Number of fan blades:
7
Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Material: The material from which a thing is or can be made e.g. wood, plastic.
Copper
Product colour: The colour e.g. red, blue, green, black, white.
Aluminium, Beige

Performance

Bearing type:
Self-Stabilising Oil-pressure Bearing (SSO)
Pulse-width modulation (PWM) support:
Yes
Airflow with LNA (max):
74.3 m³/h
Airflow:
93.4 m³/h
Noise level with LNA (max):
18.6 dB
Noise level (high speed): How loud the device is when used at high speed.
22.4 dB
Rotational speed with LNA (max):
1200 RPM
Rotational speed (max):
1500 RPM
Rotational speed (min):
300 RPM
Compatible processor series: A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.
AMD Ryzen
Supported processor sockets: The sockets (plugs) for processors that are supported (can be used) by the device.
Socket SP3, Socket TR4
Fan diameter: The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
120 mm
Type: Characteristics of the device.
Cooler
Suitable location: Locations in which the product can be used.
Processor
