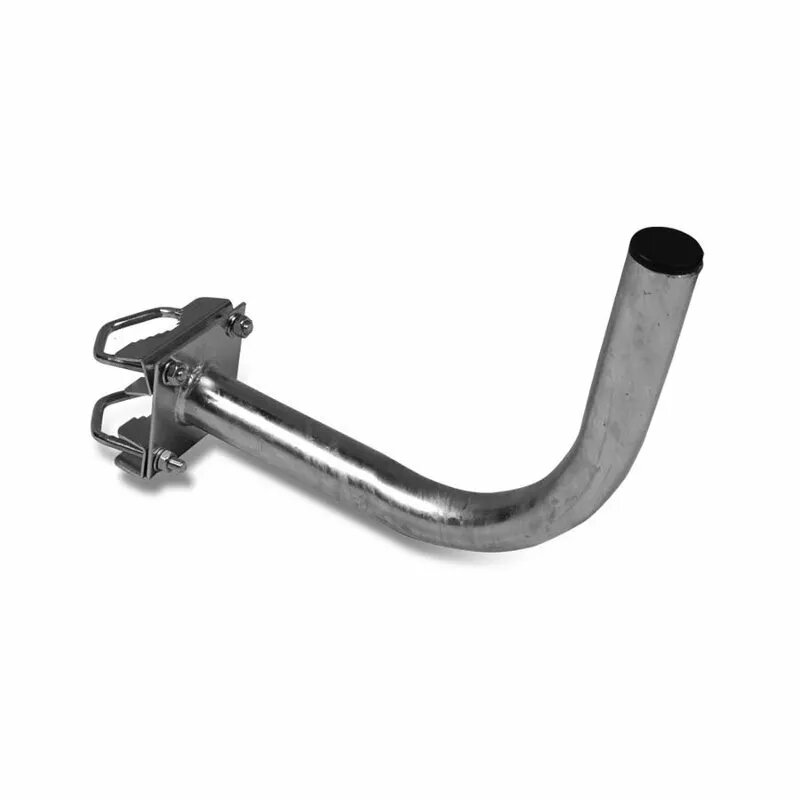

Metal pipe mount bracket OEM Ø38 mm length 250 mm model 02.001

OEM metal pipe mount bracket for Ø38 mm pipes with a 250 mm length, model 02.001, is designed to secure and support round metal tubing in various installations. The bracket provides a stable and durable fastening point for structural supports, HVAC runs, or routed cables where a fixed mounting solution is required. Its construction is intended for indoor and sheltered outdoor environments where corrosion exposure is limited.

Advantages

The bracket offers a straightforward mechanical fastening method that simplifies installation of Ø38 mm pipes. Its 250 mm length gives a reliable bearing surface for pipes, reducing movement and maintaining alignment. The OEM construction ensures consistent dimensions and fit for repeatable mounting. The design is compatible with common mounting hardware and provides a secure connection suitable for medium-duty applications.

Suitable for

• Mounting Ø38 mm round metal tubing in structural frames
• Supporting HVAC pipe runs and conduit routes
• Fixed installations for cable management and routing
• Indoor and sheltered outdoor mounting where limited corrosion protection is acceptable

Key specifications

• Pipe internal diameter compatibility: 38 mm
• Bracket length: 250 mm
• Material: metal construction suitable for mechanical fastening
• Application environment: indoor and sheltered outdoor use
• Load category: medium-duty mounting and support (dependant on installation and mounting hardware)

How to use

Position the bracket so the Ø38 mm pipe rests securely along the 250 mm bearing length. Align the bracket with the mounting surface and mark attachment points. Use appropriate fasteners for the mounting substrate (for example, bolts for steel structures or anchors for concrete). Tighten clamps or fasteners to secure the pipe while avoiding over-tightening that could deform the tubing. Confirm alignment and load distribution after installation and perform periodic checks in service.

Usage recommendations

Select corrosion-resistant fasteners or apply protective coating if the bracket will be exposed to humid or corrosive conditions. Verify compatibility of the bracket with the specific pipe wall thickness and intended load; for heavy loads or critical installations consult structural guidelines or an engineer to determine appropriate mounting spacing and reinforcement.
