Air cooler Alpenföhn Brocken 4

Name: Air cooler Alpenföhn Brocken 4 8274467
Brand: OEM
SKU: 11096171
Price: 66.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Air cooler Alpenföhn Brocken 4 12 cm Black 94 m³/h

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Alpenföhn Brocken 4 is a high-performance air cooler designed for efficient cooling. With a 12 cm fan diameter, it delivers an airflow of 94 m³/h and a maximum air pressure of 1.74 mmH2O. Its compact dimensions of 127 mm width, 92 mm depth, and 155 mm height make it suitable for various builds. The sleek black design adds a modern touch to your setup.

Available for order: 32 pcs.

Warranty: 2 Years

SKU: 11096171

Manufacturer: OEM

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.43 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

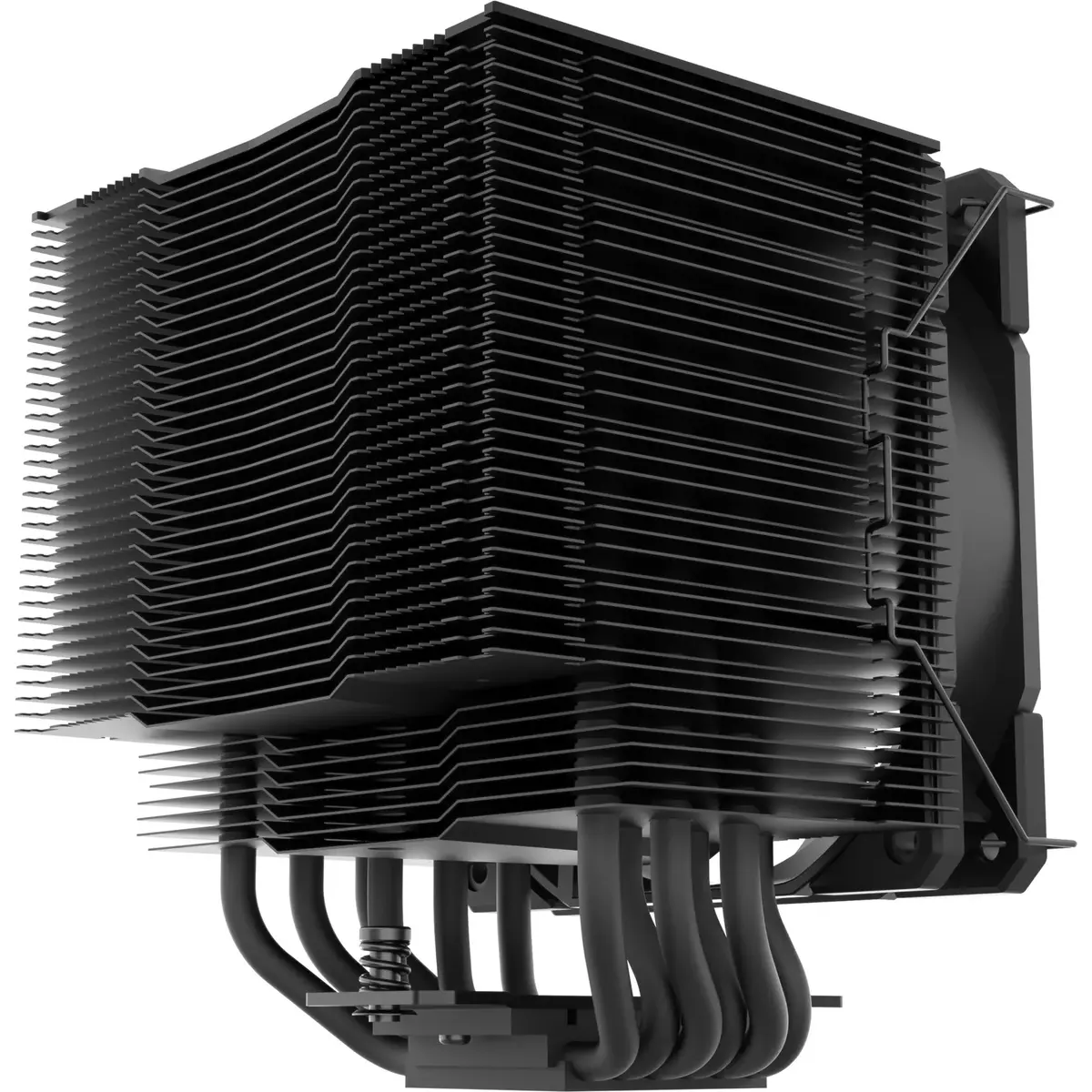

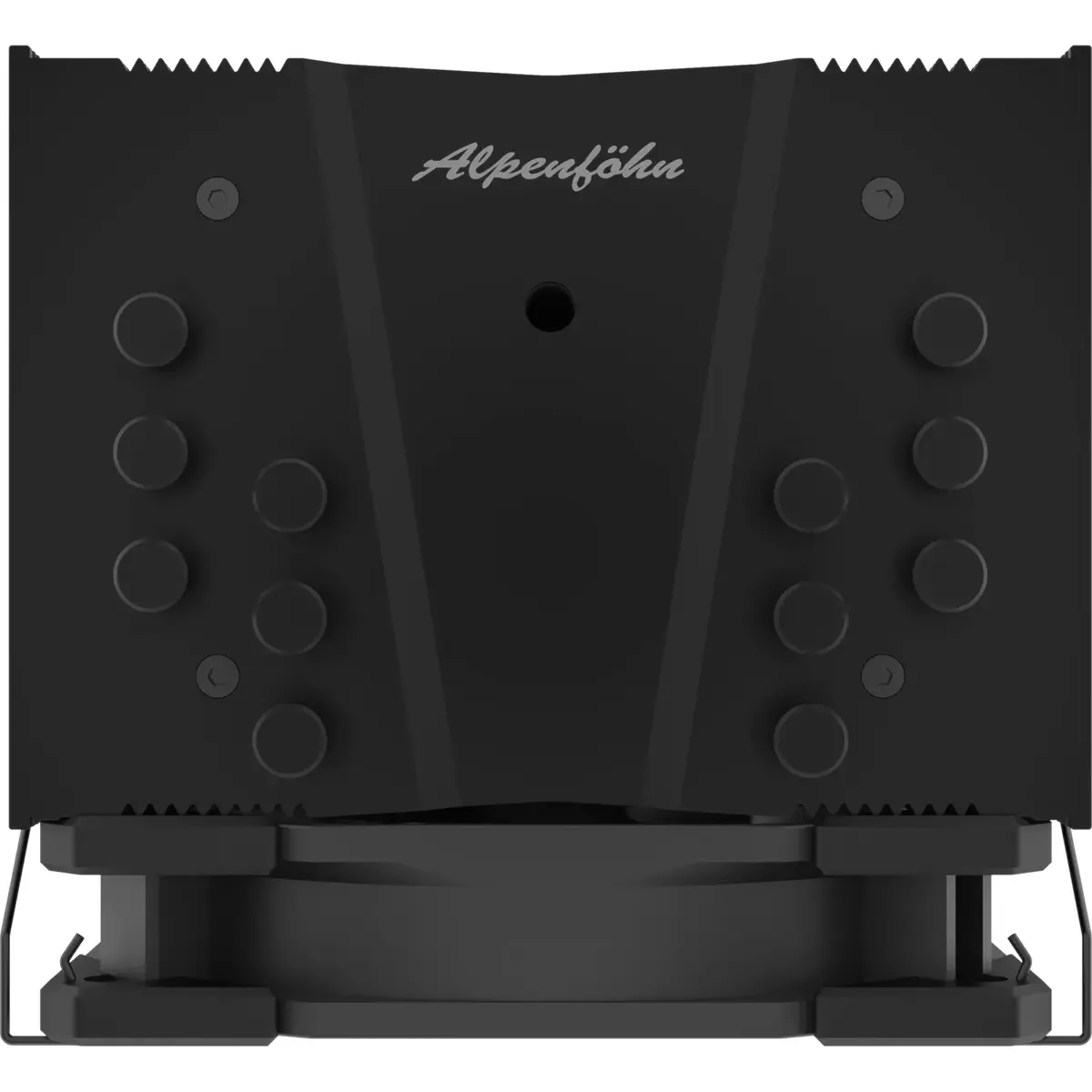

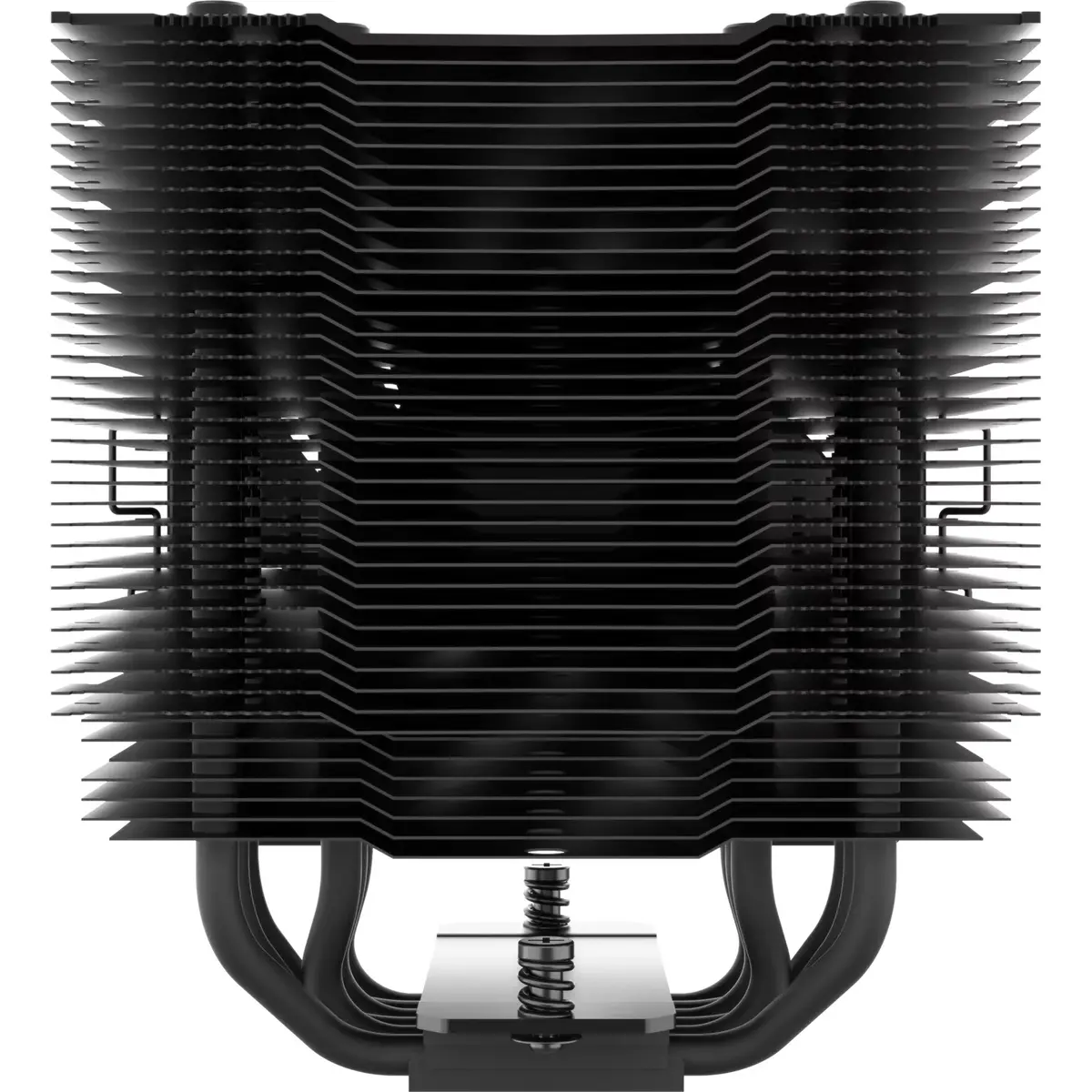

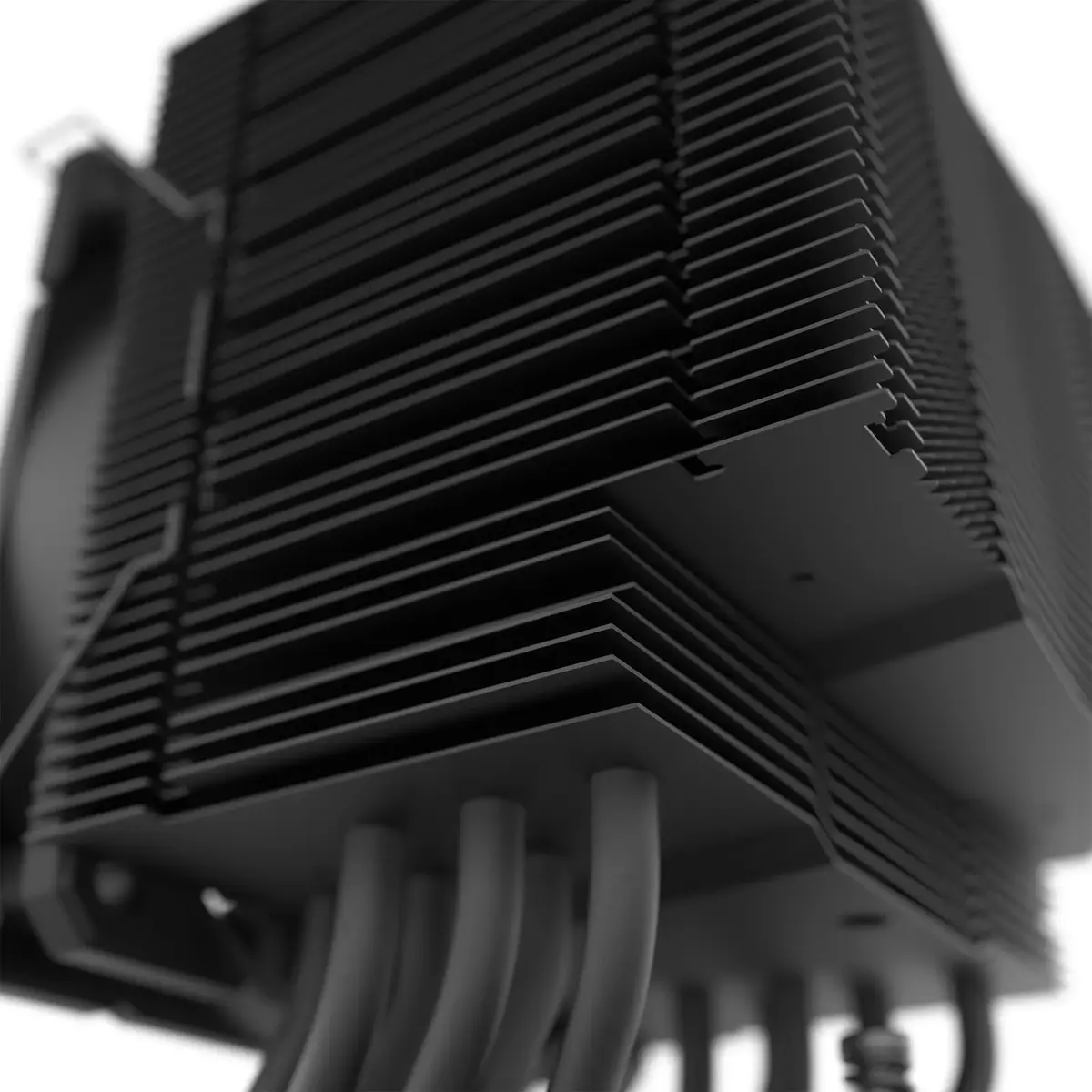

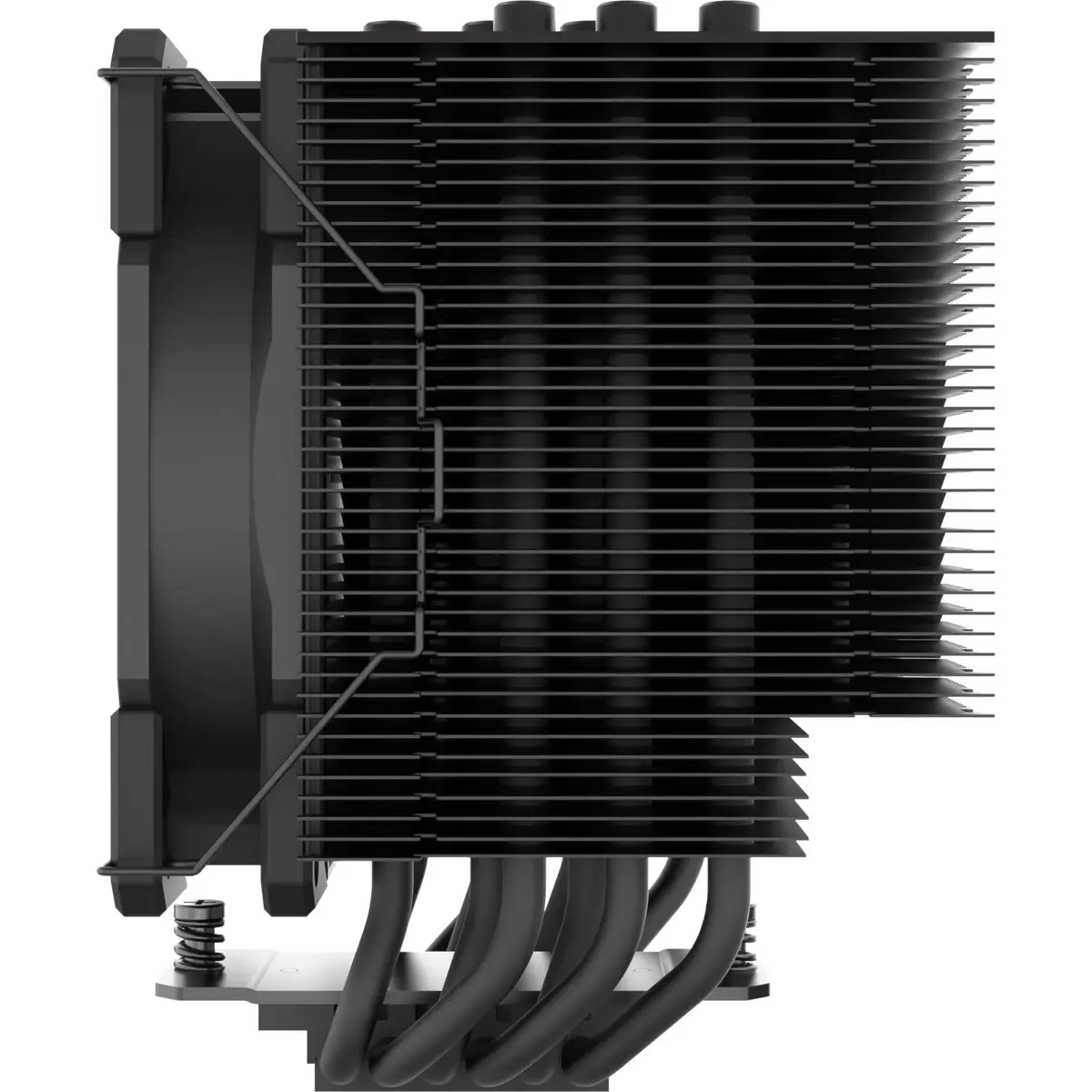

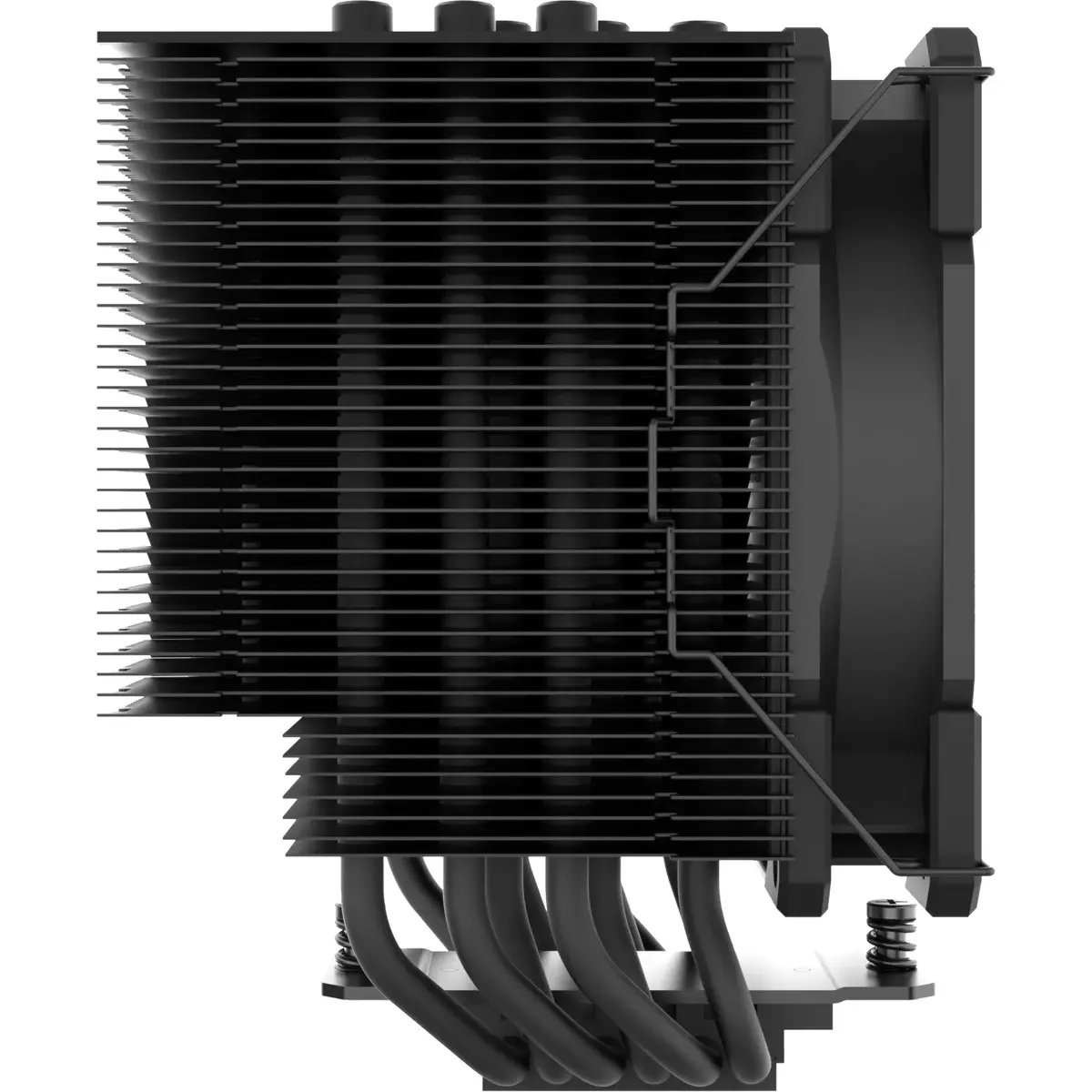

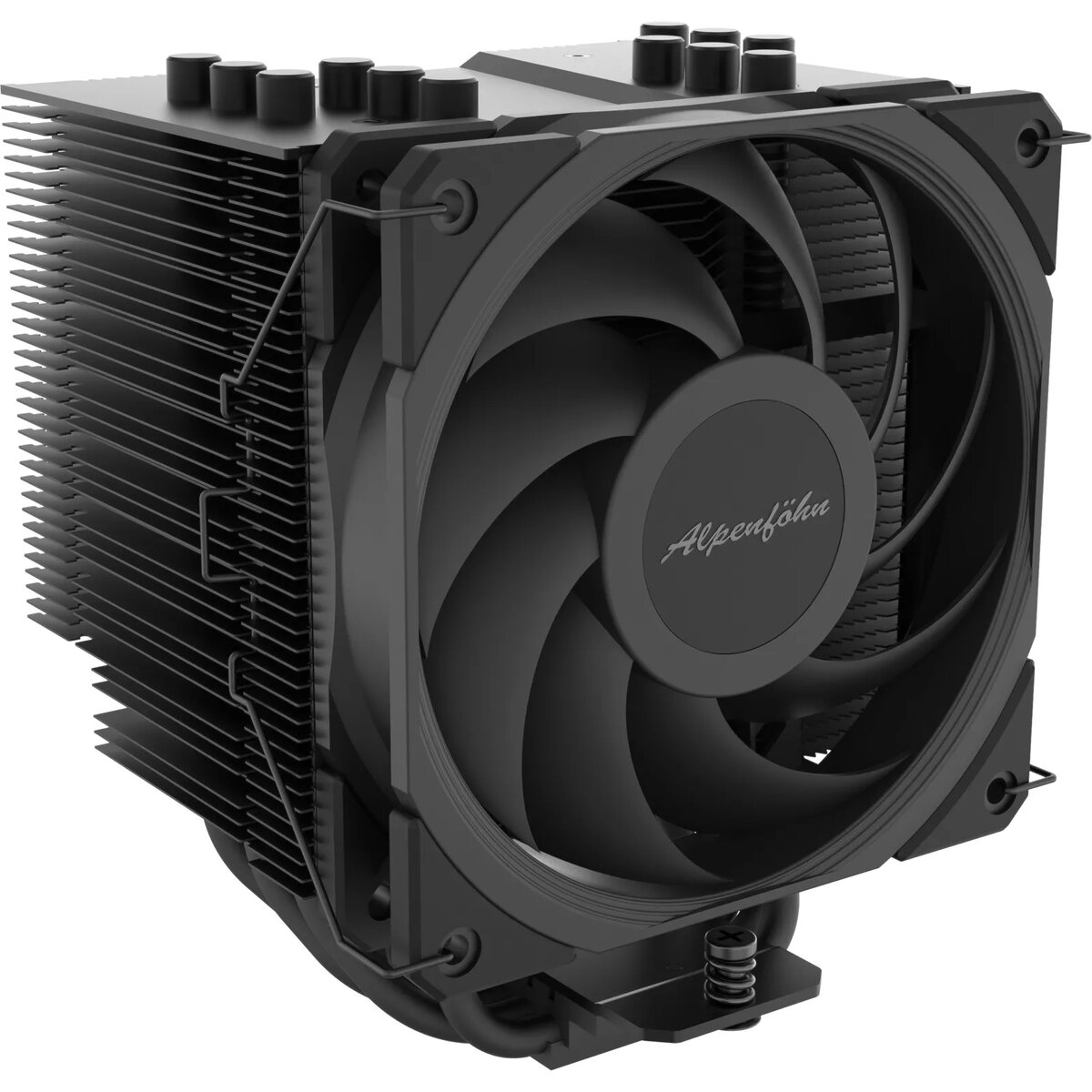

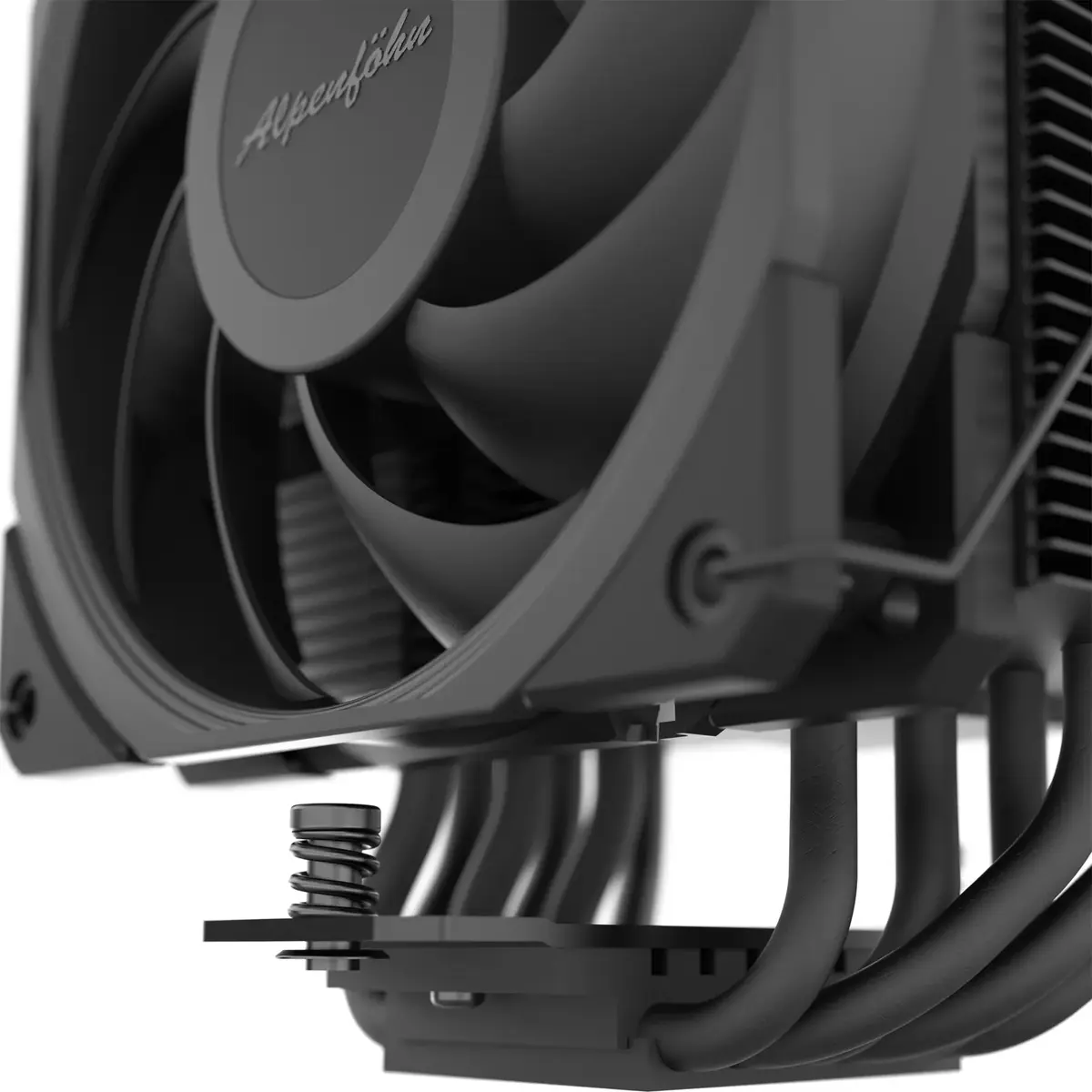

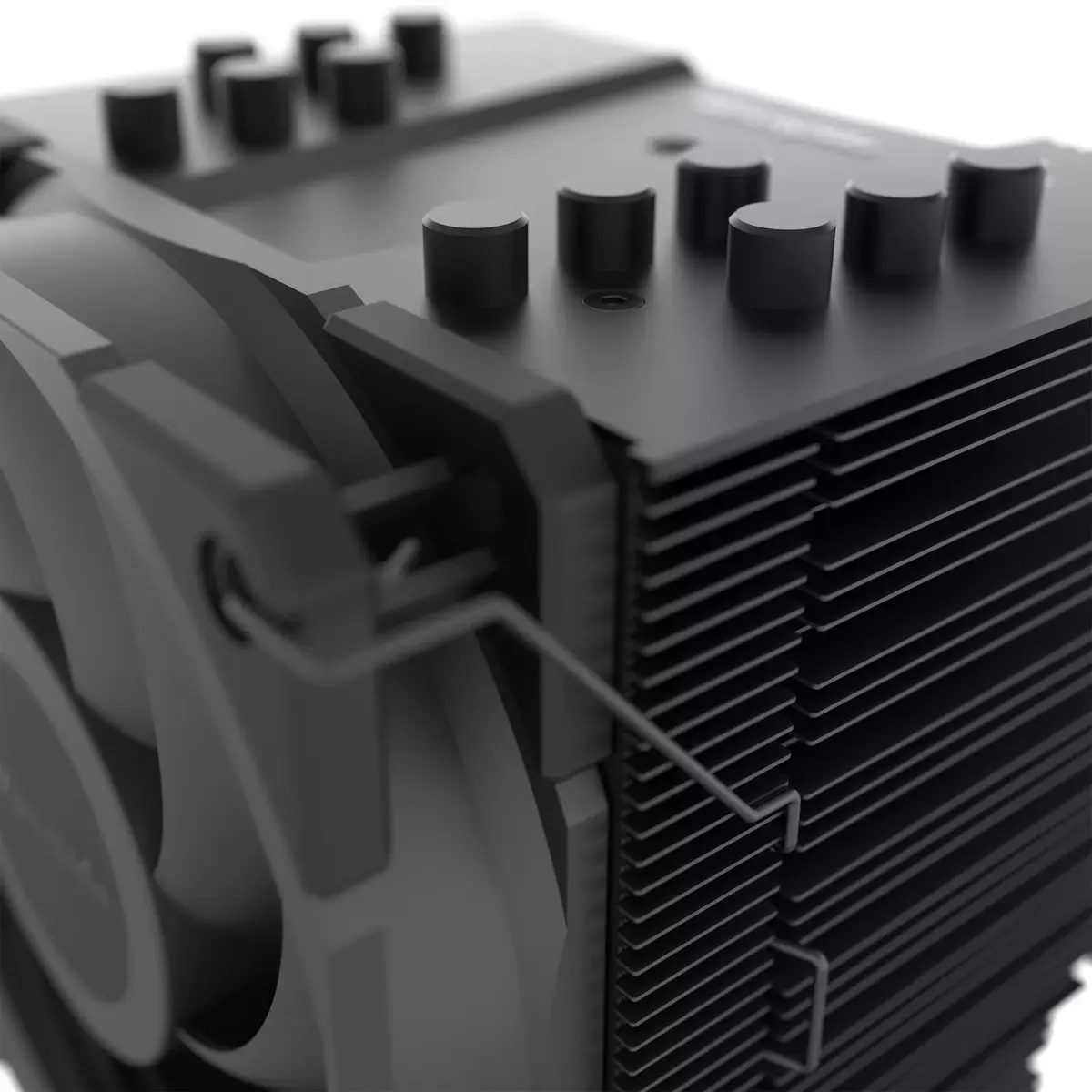

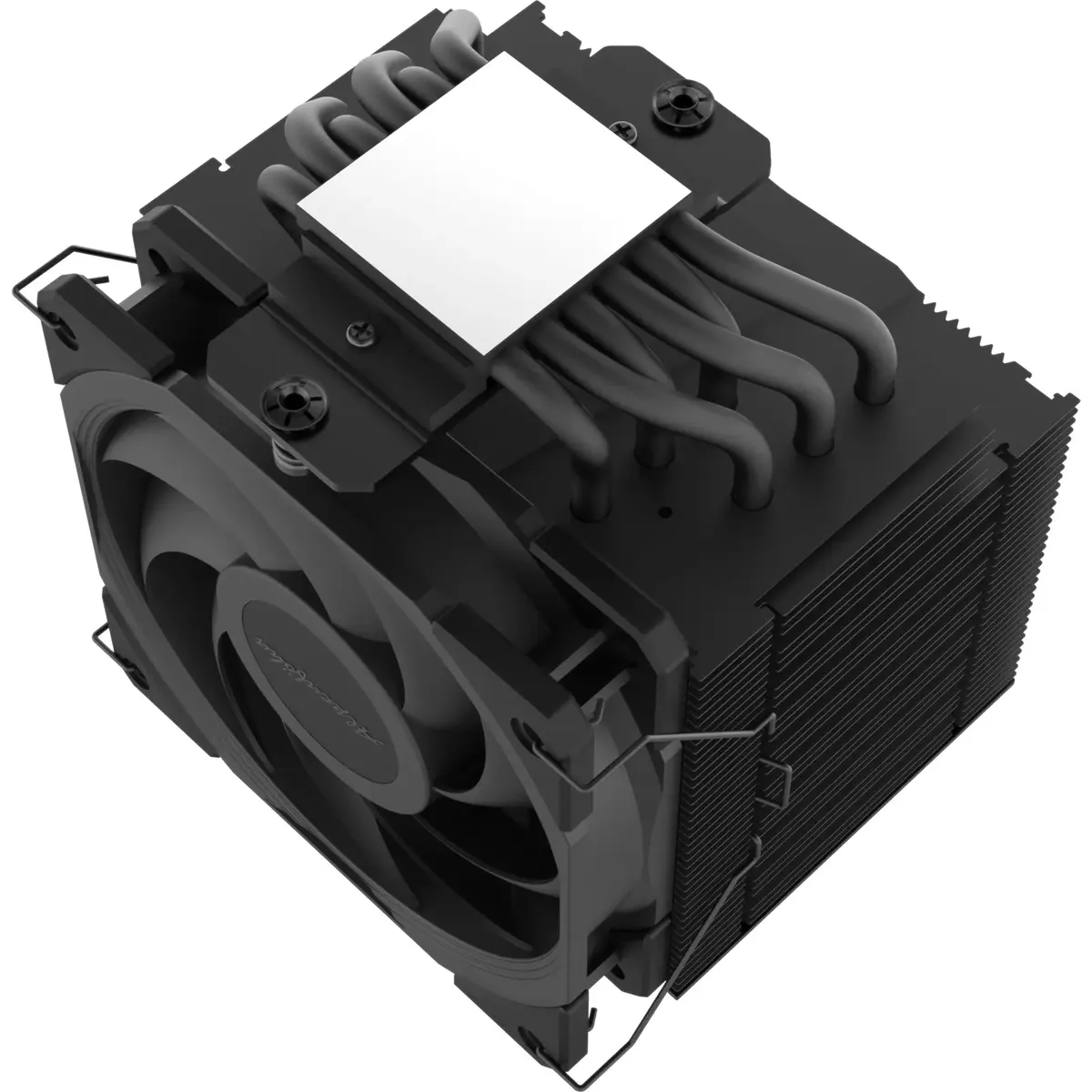

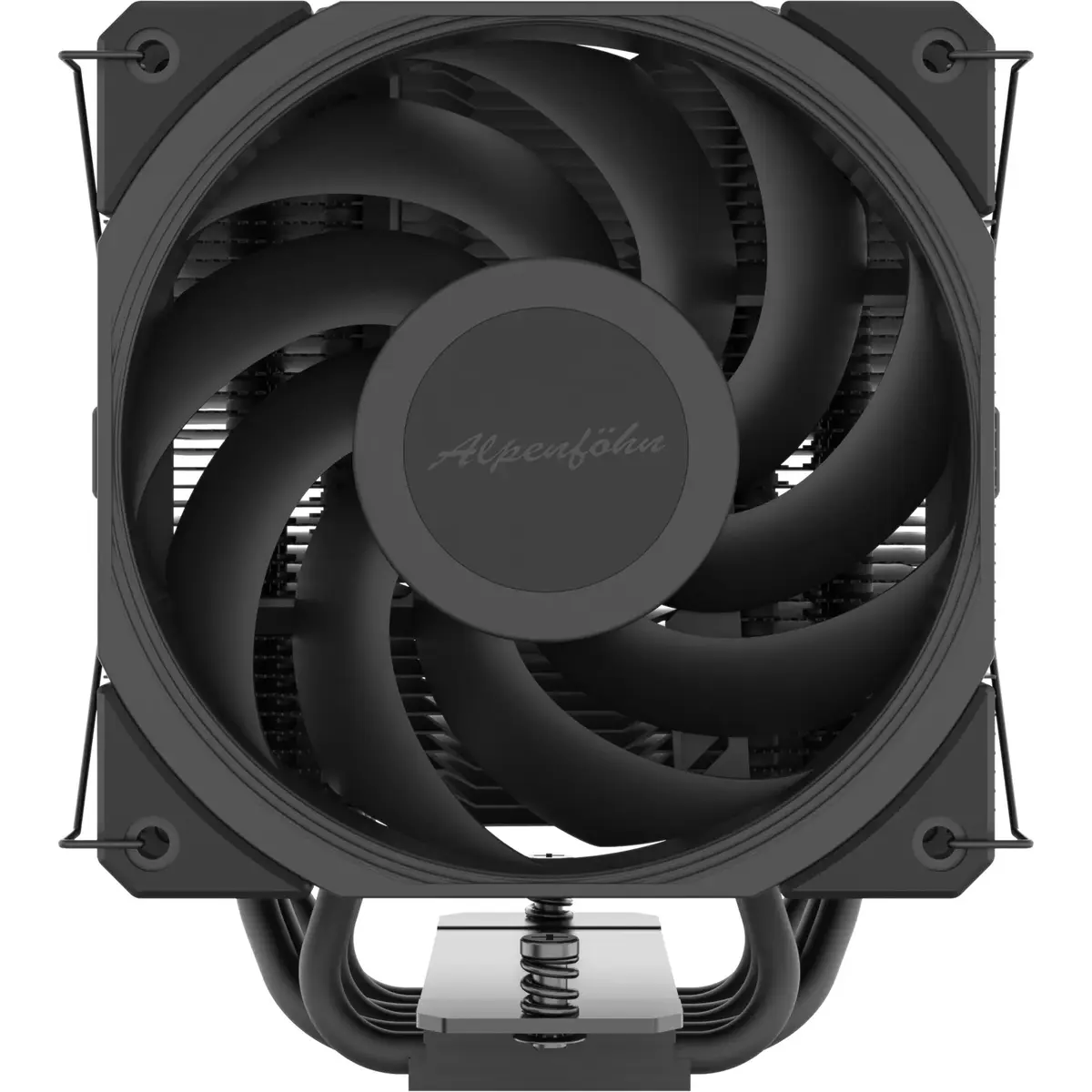

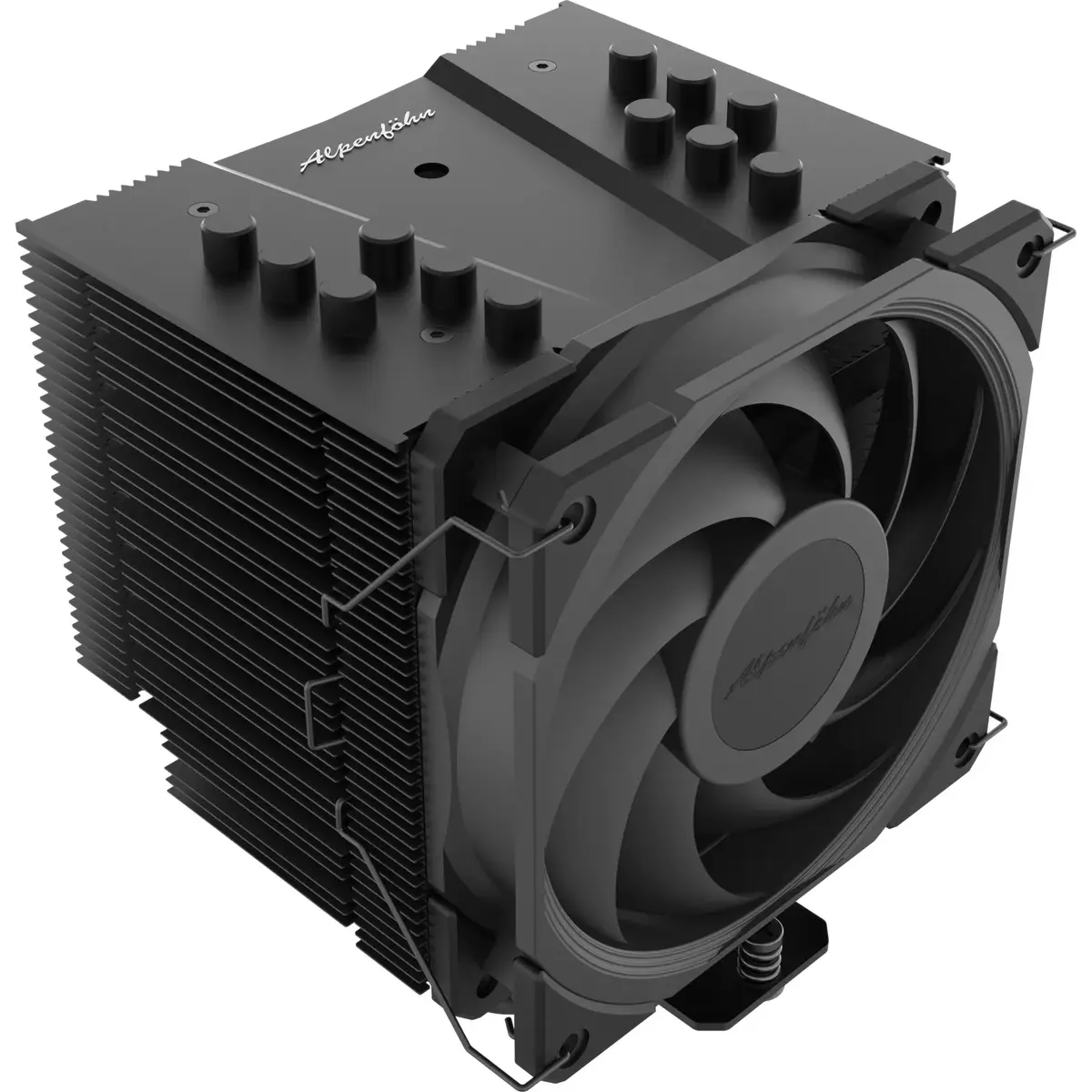

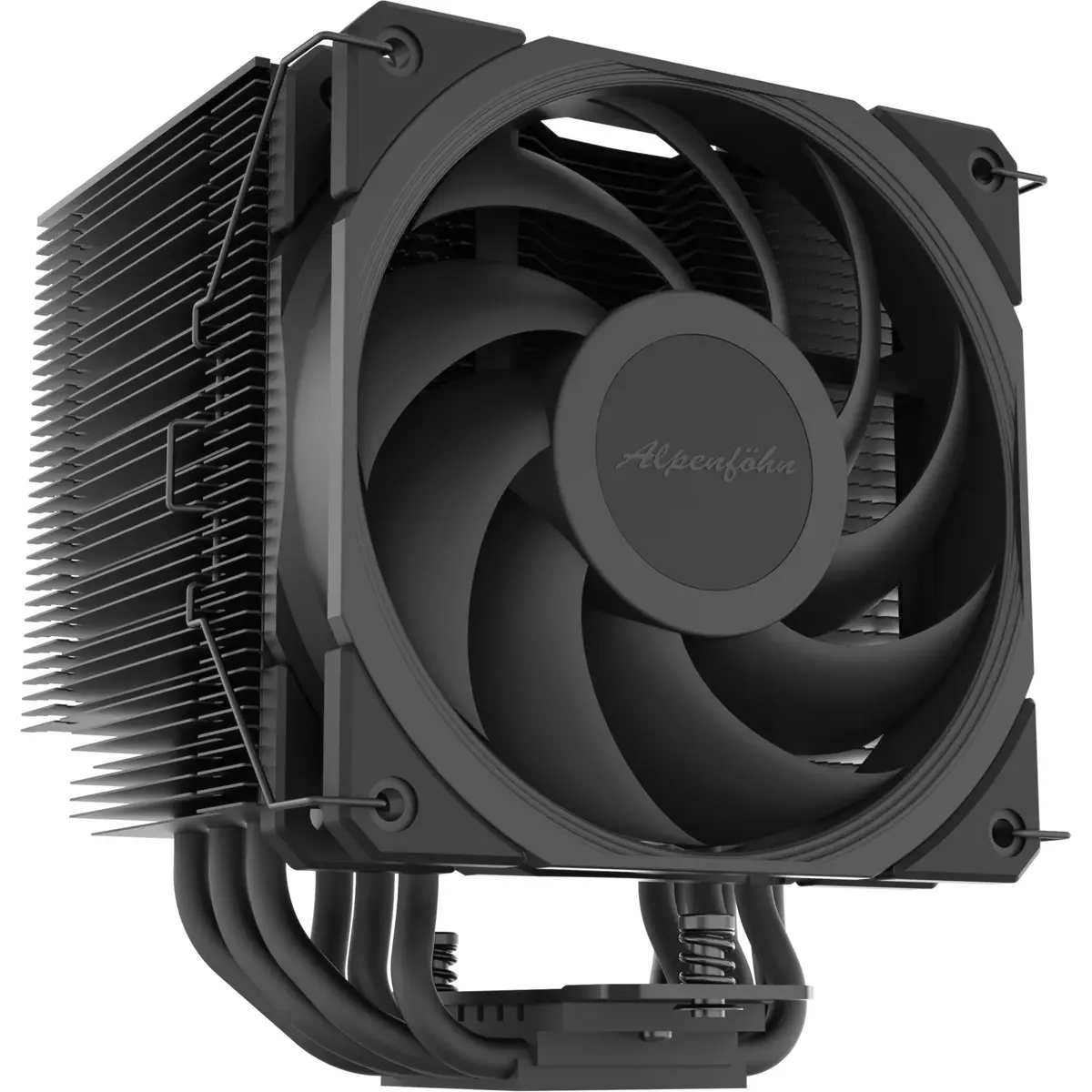

The Alpenföhn Brocken 4 12 cm Black is a single-tower air cooler engineered for efficient CPU cooling in compact and mid-size builds. It features a 120 mm JetStream fan delivering up to 94 m³/h airflow and a maximum air pressure of 1.74 mmH2O. The cooler combines six 6 mm heat pipes, a nickel-plated copper baseplate and a large asymmetric heatsink with an aerodynamically optimised fin design and matt black surface coating to balance thermal performance and quiet operation. With compact dimensions (127 mm × 92 mm × 155 mm) and a weight of 1.098 kg, the Brocken 4 fits a wide range of systems while offering a rated Thermal Design Power of 220 W.

Advantages

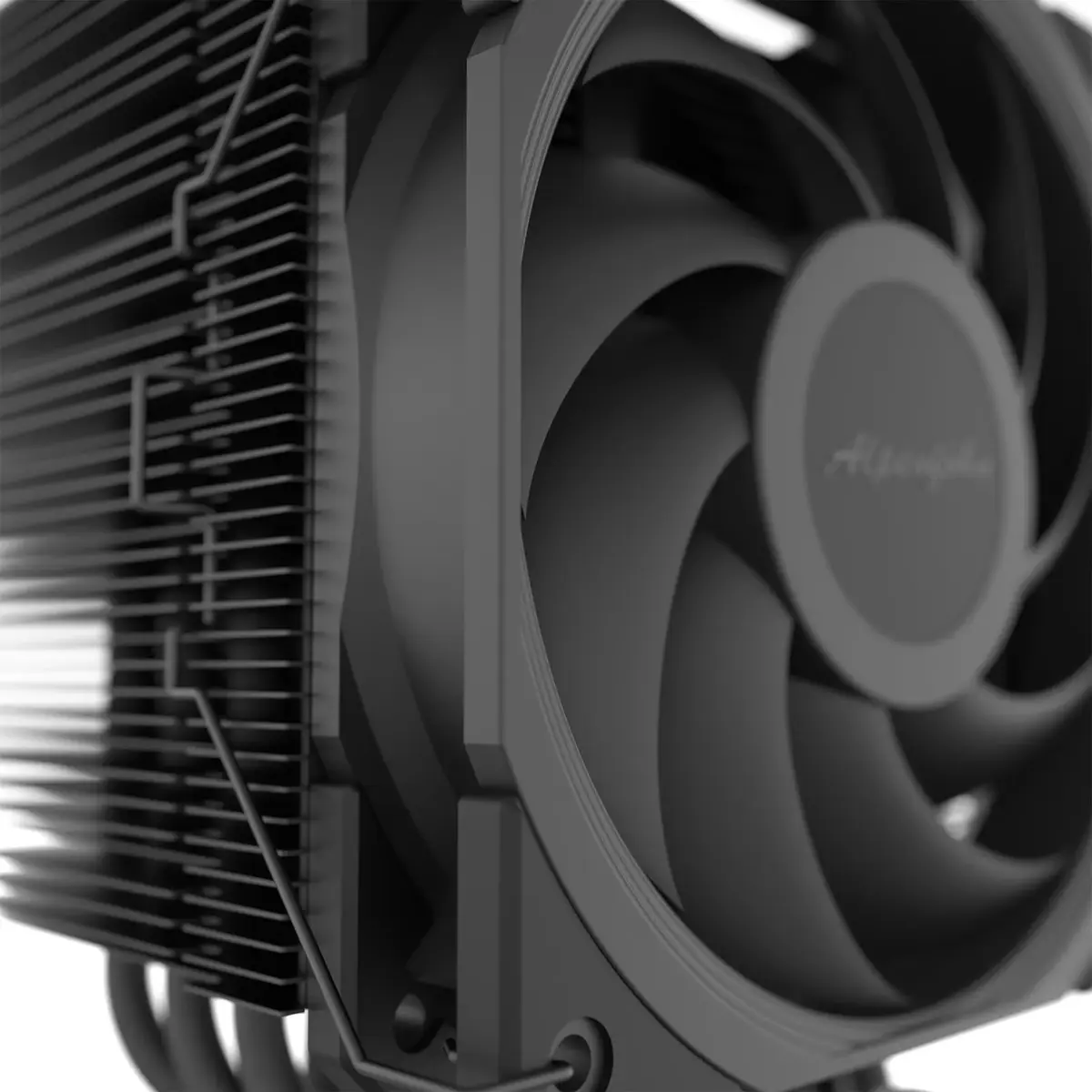

The Brocken 4 uses high-end heat pipes bonded to a copper baseplate for rapid heat transfer from the CPU to the heatsink, and the JetStream fan employs an airflow-optimised impeller and next-generation bearings to provide smooth, efficient airflow with reduced vibration. Its matt black coating and asymmetric heatsink layout improve component clearance and aesthetic integration in modern builds. The included mounting system supports multiple mainstream sockets and additional fan clamps allow for easy expansion to a dual-fan setup.

Suitable for

Air cooling for mainstream and high-performance desktop CPUs with up to 220 W TDP
Compact and mid-tower systems where a low-profile single-tower cooler is needed
Builds requiring RAM clearance and compatibility with tall heatspreaders
Systems where reduced fan vibration and quiet operation are important

Key specifications

Type: Air cooler, single-tower design
Fan diameter: 120 mm (JetStream fan)
Airflow: 94 m³/h
Maximum air pressure: 1.74 mmH2O
Heatpipes: 6 × 6 mm high-end heat pipes
Baseplate: Nickel-plated copper baseplate
Thermal Design Power (TDP): 220 W
Dimensions (W × D × H): 127 mm × 92 mm × 155 mm
Weight: 1.098 kg
Colour: Matt black

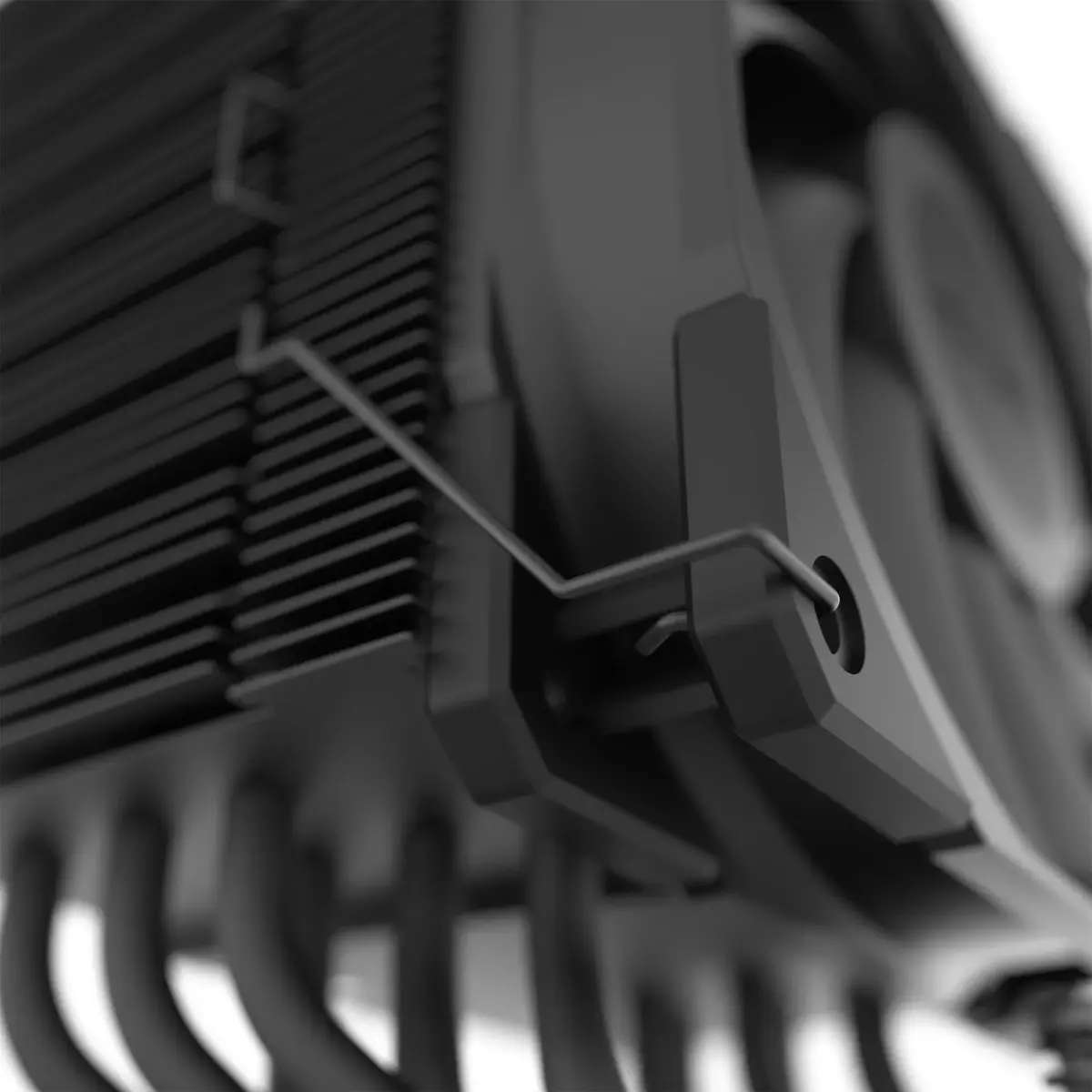

Expandable: Additional 120 mm fan can be mounted with included clamps

How to use

Install the Brocken 4 using the supplied Rock Mount 3 mounting system according to your motherboard socket type. Align and secure the nickel-plated copper baseplate on the CPU with the recommended thermal interface material, fasten the mounting brackets evenly to achieve firm contact, and attach the 120 mm JetStream fan using the supplied clamps and decoupling elements. If additional cooling is required, mount a second 120 mm fan on the opposite side using the included clamps. Connect fan power to the appropriate PWM header on the motherboard and configure fan curves in BIOS or monitoring software.

Usage recommendations

For best results, use high-quality thermal paste and ensure case airflow supports intake and exhaust paths. When installing RAM modules with tall heatspreaders, verify clearance before final mounting; the asymmetrical heatsink design provides extended compatibility, but orientation and bracket placement should be checked during assembly.

Specifications

Type:: Air cooler
Fan diameter:: 120 mm
Weight:: 1.098 kg
Thermal Design Power (TDP):: 220 W
Supported processor sockets:: Socket AM4, LGA 2066, LGA 2011-v3 (Socket R), LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3)
Product colour:: Black

All features

Performance

Type:: Air cooler
Fan diameter:: 120 mm
Supported processor sockets:: Socket AM4, LGA 2066, LGA 2011-v3 (Socket R), LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3)
Airflow:: 94 m³/h
Maximum air pressure:: 1.74 mmH2O
Pulse-width modulation (PWM) support:: Yes
Suitable location:: Processor
Fan speed (max):: 1600 RPM
Fan speed (min):: 400 RPM
Quantity per pack:: 1 pc(s)
Fan noise level (max):: 22.8 dB
Fan's mean time to failure (MTTF):: 300000 h
Fan bearing technology:: Hydro bearing

Design

Product colour:: Black
Number of fans:: 1 fan(s)
Number of heat pipes:: 6
Fins material:: Aluminium
Base plate material:: Copper
Fan connector:: 4-pin
Radiator material:: Aluminum
Number of fan blades:: 9

Weight & dimensions

Heat pipes diameter:: 6 mm
Weight:: 1.098 kg
Height:: 155 mm
Width:: 127 mm
Depth:: 92 mm
Fan dimensions (W x D x H):: 120 x 120 x 27

Power

Thermal Design Power (TDP):: 220 W
Rated current:: 0.15 A
Fan voltage:: 12 V
Fan power consumption:: 1.8 W

Packaging content

Package type:: Box
Mounting kit:: Yes
Screws included:: Yes
Installation instruction:: Yes
CPU bracket(s):: Yes

Other features

Fan rated voltage:: 5 - 13.2
