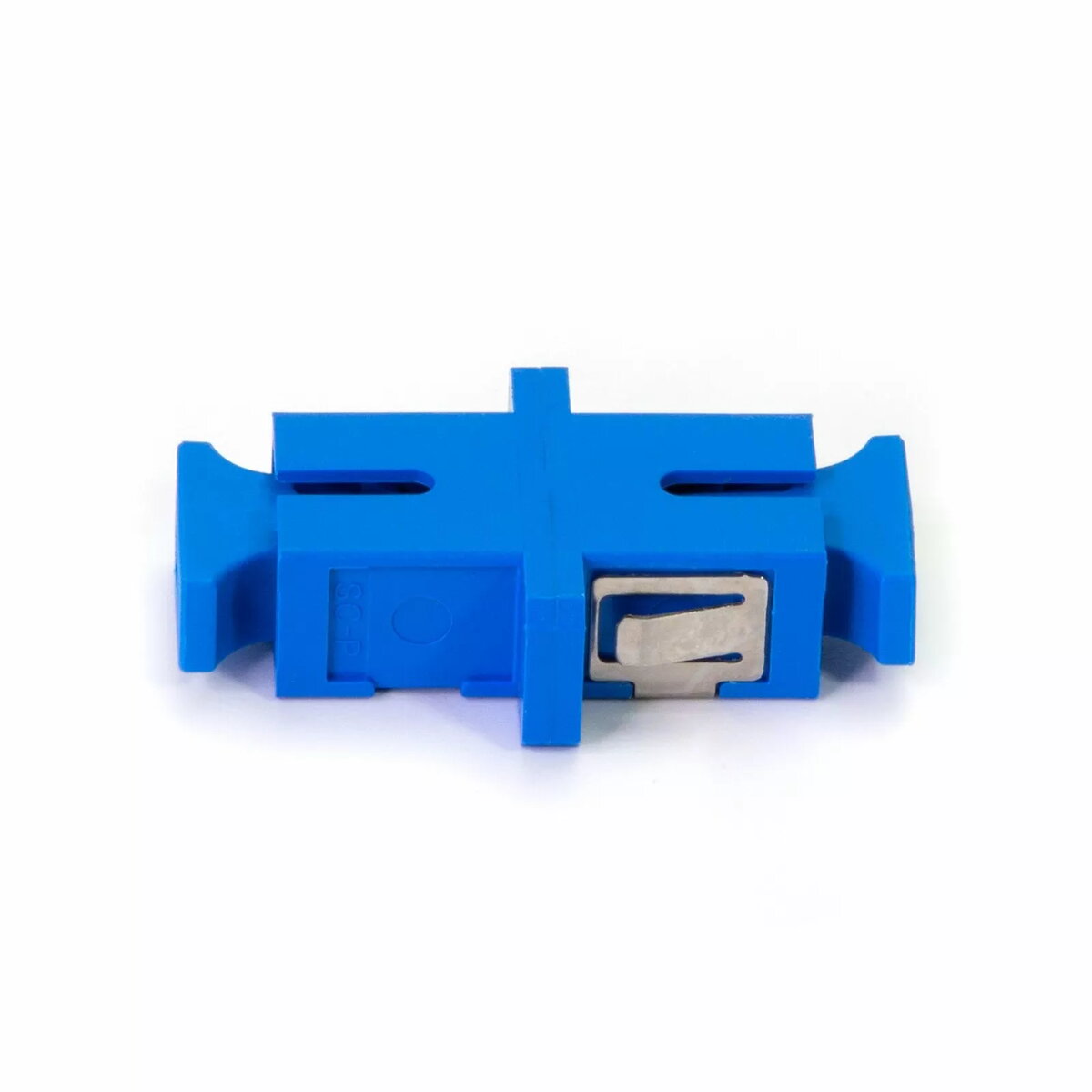

Fiber Optic Adapter SC/UPC Simplex Single-Mode, OEM, model ADSC9S

The OEM SC/UPC Simplex Single-Mode fiber optic adapter model ADSC9S is designed to join two SC/UPC terminated single-mode fibers in a simplex configuration. It provides a compact, aligned coupling solution for patch panels, wall plates and fiber enclosures where reliable low-loss connections are required. The adapter is intended for single-mode networks and supports standard SC simplex terminations for precise optical alignment and stable mechanical retention.

Advantages

This SC/UPC simplex adapter offers consistent end-face alignment and a compact footprint suitable for high-density installations. Constructed to provide stable mechanical mating and low insertion loss for single-mode links, the adapter is compatible with common SC/UPC connectors and mounting formats. Its design minimizes back reflections and supports straightforward replacement or reconfiguration in existing fiber infrastructure.

Suitable for

• Patch panels and distribution frames in single-mode networks
• Wall plates and outlet boxes for indoor fiber termination
• Fiber enclosures and splice cabinets requiring SC/UPC coupling
• Network maintenance, testing and temporary connections

Key specifications

• Connector type: SC/UPC simplex mating interface
• Fiber type: single-mode (SM)
• Polish: UPC (ultra physical contact) to reduce back reflection
• Format: simplex
• Mounting: panel/wall plate/enclosure compatible
• Material: precision ceramic ferrule alignment (typical for SC/UPC adapters)
• Typical application: optical coupling for single-mode patching and routing

How to use

Insert the SC/UPC terminated fiber connector into the adapter until it seats securely, ensuring the connectors are clean and free of dust or debris prior to mating. Align the adapter with the panel cutout or enclosure slot and secure it as required by the mounting hardware. For removal, depress the connector latch and gently withdraw the connector to avoid damaging the ferrule or cable. Use appropriate cleaning tools and procedures for single-mode UPC connectors to maintain low insertion loss and minimize reflectance.

Usage recommendations

Before installation, verify connector end-face cleanliness with an inspection microscope and clean with approved fiber cleaning materials if needed. Avoid excessive bending of the fiber near the adapter and secure cables to prevent strain. When used in precision single-mode links, follow standard testing procedures to confirm insertion loss and return loss meet system requirements.
