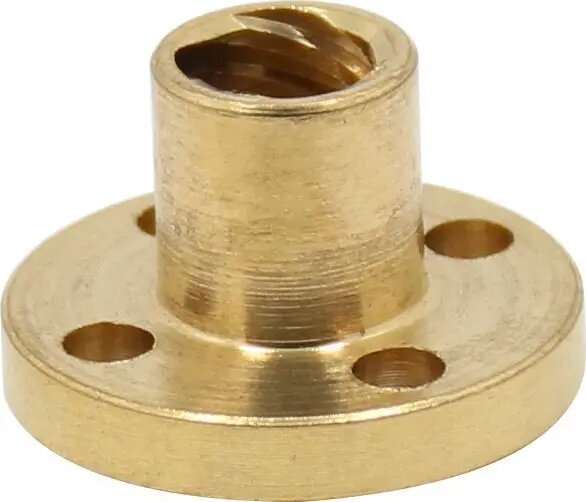

Threaded Nut for 8 mm Trapezoidal Lead Screw, OEM (MPN AMS-18924)

Threaded Nut for 8 mm Trapezoidal Lead Screw, OEM is a precision-machined nut intended for use with an 8 mm trapezoidal (Tr8) lead screw. It provides the threaded interface that converts rotational motion of the lead screw into linear travel, enabling controlled axial movement in mechanical systems. Designed for applications such as CNC machines, 3D printers, linear actuators and other positioning assemblies, this nut offers consistent engagement with the screw thread to transfer axial loads and maintain repeatable motion.

Advantages

The nut is manufactured to provide reliable mating with an 8 mm trapezoidal screw profile, ensuring smooth linear translation and reduced backlash when properly paired. Its OEM build quality supports stable axial load transfer and durability in repetitive motion cycles. The compact design simplifies integration into existing mechanical assemblies and minimizes added mass while delivering the required thread engagement for accurate positioning.

Suitable for

• CNC machine axes and tool positioning
• Linear stages and 3D printer Z-axes
• Linear actuators and automated motion systems
• Prototyping and mechanical assemblies requiring trapezoidal lead screw drives

Key specifications

• Thread type: trapezoidal profile sized for 8 mm lead screw
• Function: converts rotary motion to linear motion via threaded engagement
• Typical usage: axial load transfer between rotating screw and moving component
• Form factor: compact nut designed for in-line installation with lead screw
• Compatibility: intended for mechanical systems using 8 mm trapezoidal (Tr8) lead screws

How to use

Install the nut onto the 8 mm trapezoidal lead screw by aligning the internal thread with the screw starts and rotating until the nut engages. Secure the nut to the moving component according to your assembly design, using appropriate fasteners or clamps in the provided mounting points or housing. When integrated into a driven system, use correct preload, end supports and alignment to minimize axial play and ensure smooth travel. Regular inspection and lubrication of the contact surfaces will help maintain consistent performance.

Usage recommendations

Match the nut with a lead screw manufactured to Tr8 trapezoidal standards and verify dimensional compatibility before final assembly. Apply a suitable lubricant compatible with the materials in use and establish periodic maintenance checks for wear, alignment and secure fastening to prolong service life and preserve positioning accuracy.
