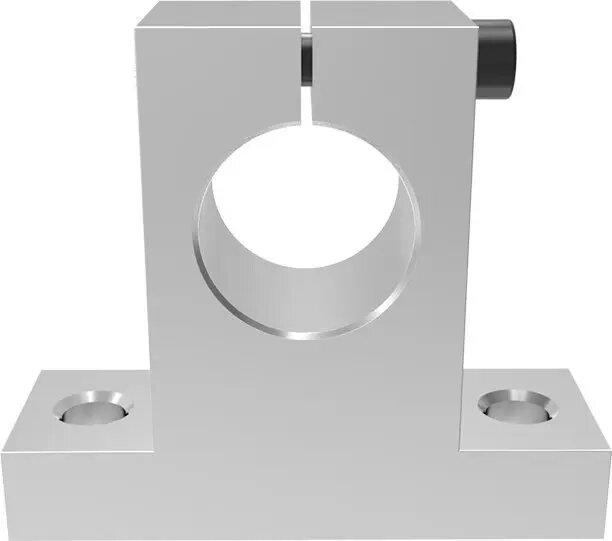

Linear Shaft Support Block OEM SK10 for 10 mm Shaft

The Linear Shaft Support Block OEM SK10 for 10 mm Shaft is a mounting element designed to secure and align a 10 mm diameter linear shaft in motion systems. It provides axial support and a stable bearing point for linear shafts used with rails, linear bearings or smooth rods. Built to integrate into automation, CNC, 3D printing and general mechanical assemblies, the support block helps maintain shaft alignment and reduce runout to keep linear motion components operating reliably.

Advantages

This support block offers rigid axial fixation and consistent alignment for 10 mm shafts, helping to minimize vibration and shaft deflection under load. Its compact design simplifies installation into frames and assemblies while providing a stable mounting surface for bearings or rails. The part is compatible with common linear motion setups and facilitates straightforward replacement or upgrade of shaft support points.

Suitable for

• Linear motion systems in automation equipment
• CNC machines requiring precise shaft support
• 3D printers and plotting devices
• Laboratory rigs and test benches with 10 mm shafts
• General mechanical assemblies needing fixed shaft mounting

Key specifications

• Designed for shaft diameter: 10 mm
• Function: axial support and alignment for linear shafts
• Application: mounting block for rails, linear bearings or smooth rods
• Mounting: flat base for panel or frame attachment
• Material: suitable for mechanical loads in motion systems (check product datasheet for exact material)

How to use

Position the support block at the required axial location along the shaft and secure it to the machine frame or mounting surface using appropriate fasteners through the base. Insert the 10 mm shaft into the support bore, ensure correct alignment with adjacent bearings or rails, then tighten any clamping or locking screws to eliminate axial play. Verify parallelism and straightness of the shaft across the system before final tightening and resume gradual operation to confirm smooth movement.

Usage recommendations

Inspect mounting surfaces for flatness and clean shaft surfaces before installation to prevent misalignment. Use suitable torque values for fastening hardware and check alignment periodically in high-use applications. For corrosive or high-load environments, select compatible materials or protective coatings as required by the system specifications.
