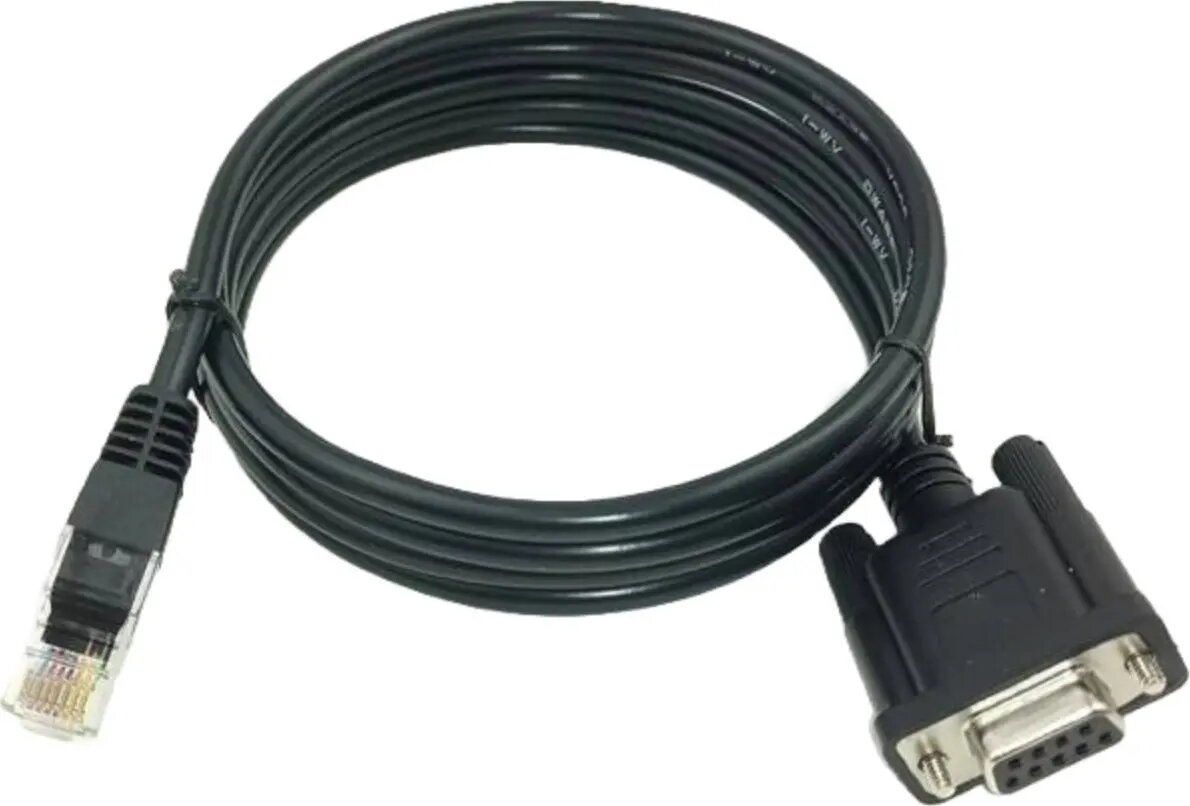

Console Cable HPE DB9 OEM — Serial RJ45 to DB9 console cable for network equipment

OEM HPE DB9 console cable for connecting networking equipment consoles to serial DB9 ports. This cable provides a serial DB9 to RJ45 console connection commonly used for direct device configuration and troubleshooting of switches, routers and other network devices. Designed for console management, the cable enables a straightforward serial interface between a computer or terminal equipped with a DB9 serial port and network hardware that uses an RJ45 console jack.

Advantages

The Console Cable HPE DB9 OEM delivers a compatible serial connection that follows common console wiring conventions, allowing reliable communication for CLI access and device boot-time interaction. Its OEM design ensures fit and function with HPE networking equipment and many other devices that accept RJ45 console connections. The cable reduces the need for adapters by providing a direct DB9-to-RJ45 link, simplifying setup and saving time during maintenance and troubleshooting.

Suitable for

• IT administrators configuring or troubleshooting switches and routers
• Field technicians performing on-site console access and firmware updates
• Network engineers requiring serial console access during initial device setup
• Laboratory or workshop environments for equipment testing and diagnostics

Key specifications

• Connector A: DB9 (serial) male/female as required for host connection
• Connector B: RJ45 console plug compatible with common console pinouts
• Function: Serial console communication for device CLI and configuration
• Cable type: Console cable for serial data (RS-232 level signaling expected)

How to use

Connect the DB9 end of the cable to the serial port of your computer or terminal and insert the RJ45 plug into the console port of the network device. Launch a terminal emulator on the host system and configure the serial port settings typically used for console sessions (for example: baud rate, parity, data bits and stop bits as required by the device). Use the cable for direct command-line access to perform initial configuration, troubleshooting, firmware updates or recovery procedures.

Usage recommendations

Verify the correct pinout and serial settings for the target device before use. If the host lacks a DB9 serial port, use a compatible USB-to-serial adapter that supports standard RS-232 signals. Store the cable coiled without sharp bends and avoid excessive pulling to maintain connector integrity and reliable communication.
